Webasto T70 User Manual

Retrofit/Installation Kit no. 82 30 0 020 941 Date: 05.2000
Installation Instructions no. 01 29 0 021 305

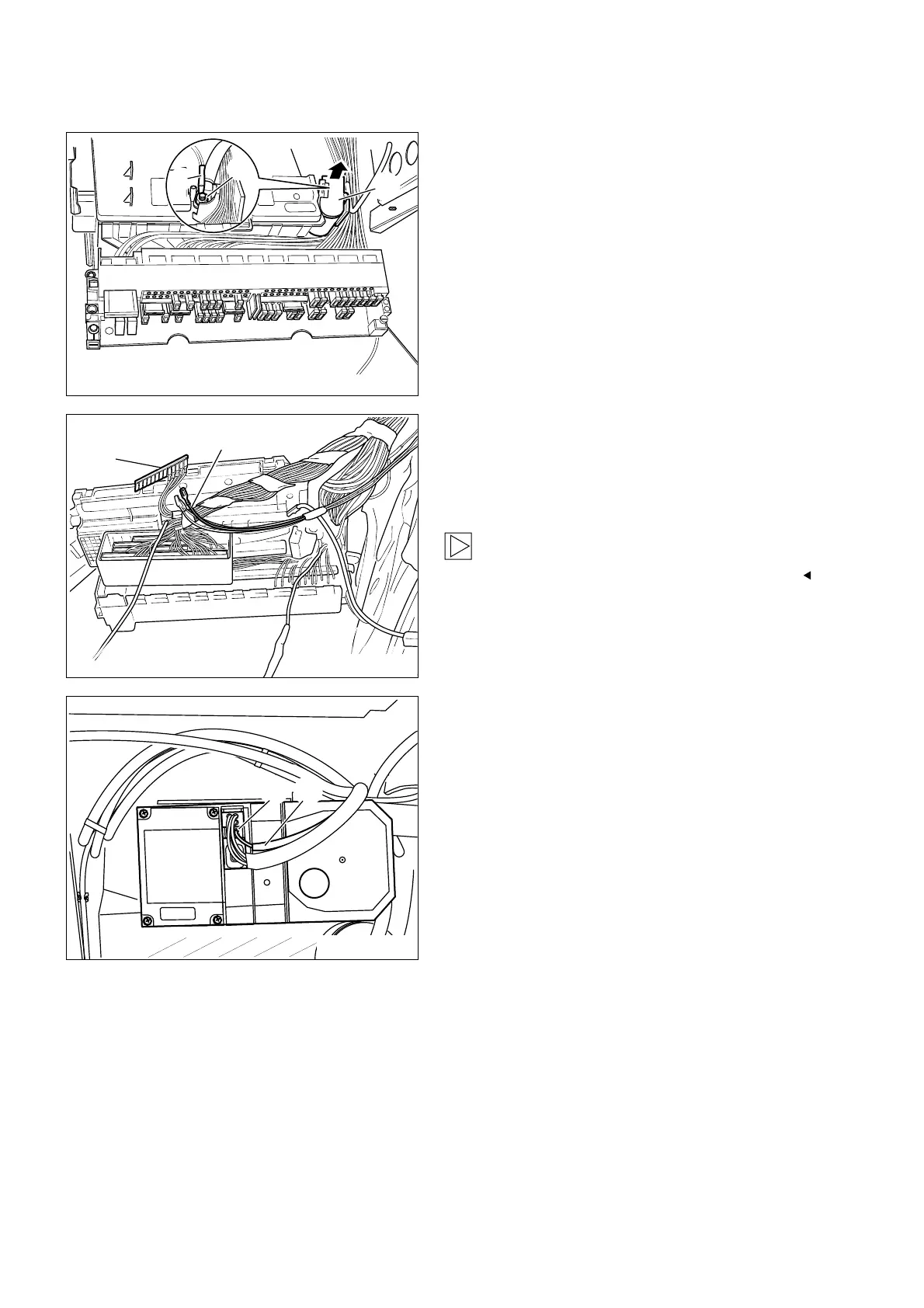

Take off black plastic cover (1) from connector
X13020. Undo hexagon nut M8 (2). Connect
branch cable B, terminal 30 (3), cable colour red,
to connector X13020.
5. Install park heating wiring harness and connect it
1
3
5
7
9
11
13
1
5
1
6
20
18
22
24
26
29
3
0
32
3
4
F 46 0013 R
1
2
3
2
1
F 46 82 032 R
2
F 46 0018 2W
3
1
Pull out joint connector housing from the joint
connector box.
Connect branch cable C, terminal 31 (1), cable
colour brown, to joint connector X219 (2). Insert
joint connector housing again in the joint con-
nector box.
If joint connector X219 (1) is fully assigned,
a parallel connection will have to be made.
Install branch cable D (1), cable colour black,
through the rubber grommet in the bulkhead to
the installation location of the park heating unit
(3).
Plug branch cable D (1), cable colour black, into
Pin 1 of the 6-pole socket housing X764 (2) of
the park heating unit (3).
Stick the sticker for the fitting of fuses and park
heating relay on the park heating unit (3).
EN/29
