Retrofit/Installation Kit no. 82 30 0 020 941 Date: 05.2000
Installation Instructions no. 01 29 0 021 305
Clean windscreen in the adhesion area.
When sticking on the antenna, the windscreen
should be at a temperature of at least +20 °C.
It is essential that the antenna lead is
installed in such a way that the ITS head air bag
is not handicapped when it unfolds.

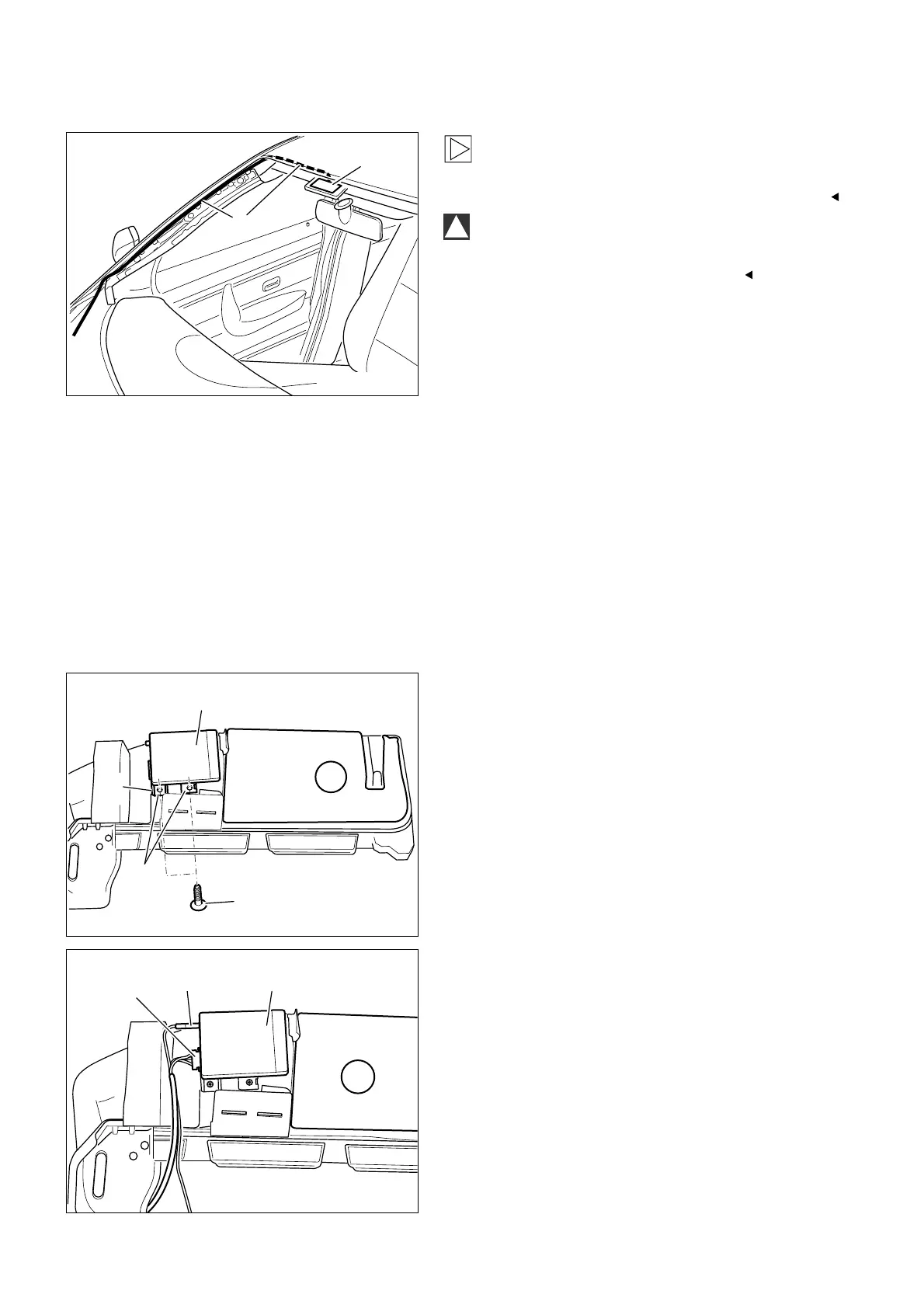

Stick antenna (1) on the windscreen on the right
by the side of the rearview mirror. Install antenna
lead (2) under the roof liner to the right and along
the A-pillar downwards.
Install antenna lead (2) to Telestart receiver A128
and connect it.
Put bracket (2) on receiver (3) and place on
footwell covering (4) as illustrated. Mark places
for drill holes and drill them with drill Ø 5 mm.
Put speed nuts (1) on bracket (2) and attach
receiver (3) with the fillister head self-tapping
screws 4.2x16 (5).
Connect connection cable of the antenna (2) and
branch cable H (1) to the receiver (3) and install
footwell covering (4).
