Webasto T70 - Install Timer (Optional)

Retrofit/Installation Kit no. 82 30 0 020 941 Date: 05.2000
Installation Instructions no. 01 29 0 021 305
If no timer is to be fitted, branch cable E (1)
should be tied back to the wiring harness.
Install branch cable E (1) to the notch (2) by the
side of the radio slot on the left.
7. Install timer (optional)
F 46 0016 R
2
1
F 46 0021 R
2
1

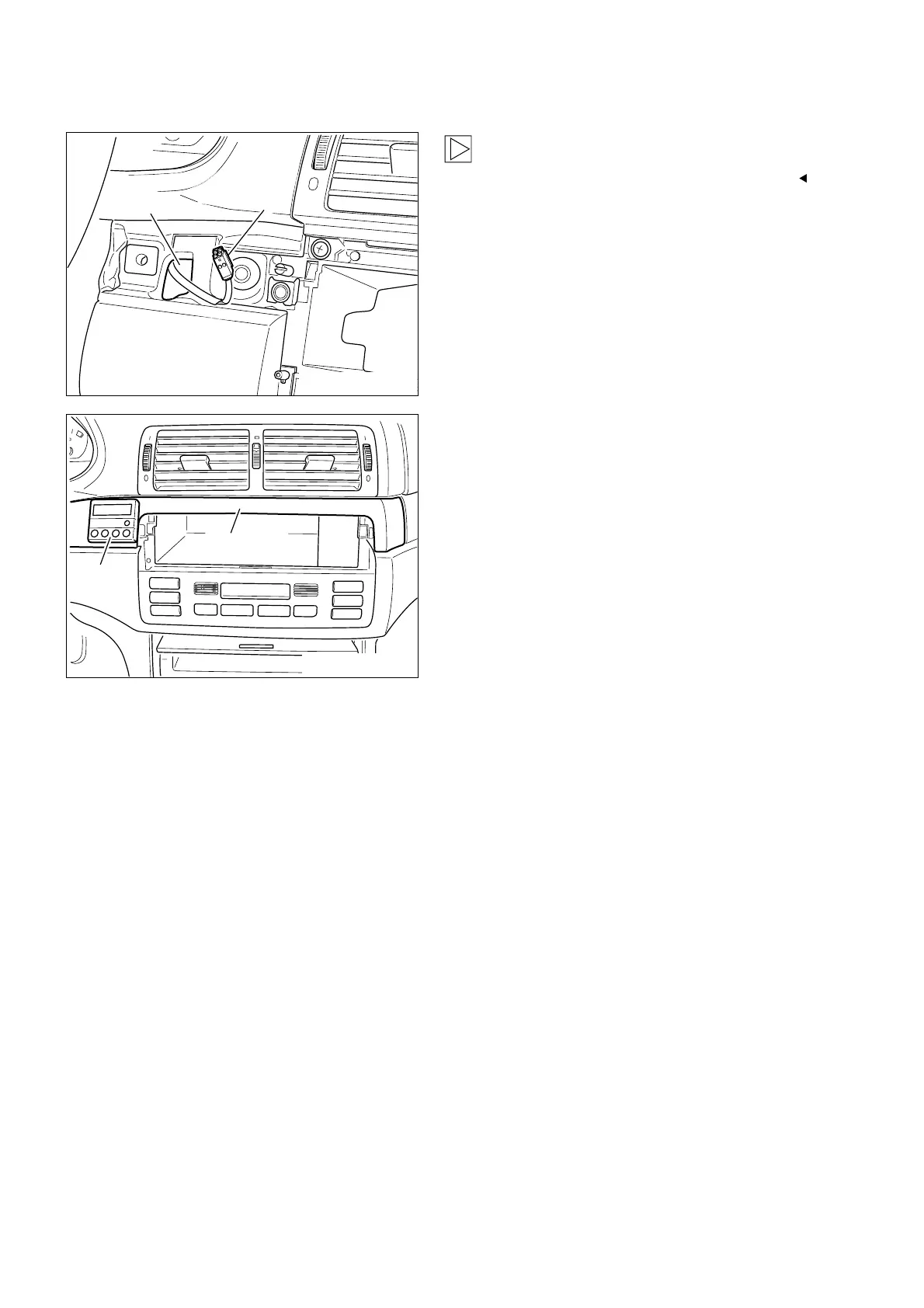

Stick the supplied drilling template on the
finisher (1). Drill holes in the finisher (1) in
accordance with the drilling template.
Connect connector to the timer (2).
Attach timer (2) with supplied screw and bush.
EN/31
