OPERATION
Lift Lever
Clutch / Brake
Pedal
Ignition Key Switch
Blade Rotation
Control
Shift Lever
Throttle Control
Lever
Figure 4

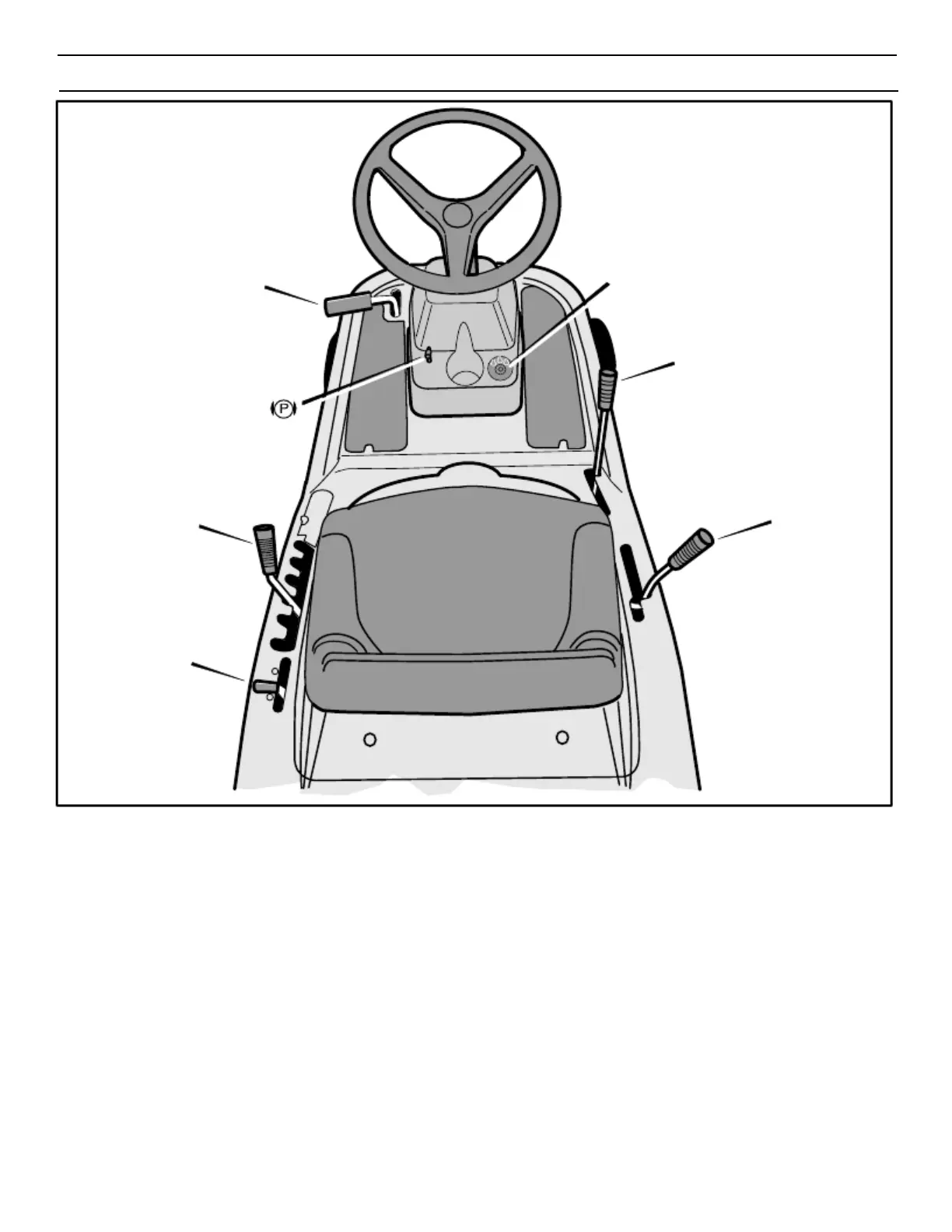

LOCATION OF CONTROLS
BLADE ROTATION CONTROL:
Use the blade rotation
control to start and stop the rotation of the blade.
CLUTCH / BRAKE PEDAL:
The pedal has two functions
The first function is a clutch. The second function is a brake. Use
the brake pedal to quickly stop the forward or reverse motion of
the unit.
IGNITION KEYSWITCH:
Use the ignition key switch to
start and stop the engine. When you start the engine and release
the ignition key, the switch will automatically default to the
recommended RUN-MOW position for normal mowing.
SHIFT LEVER: Use the shift lever to change the speed of the
unit.
LIFT LEVER: Use the lift lever to change the height of cut.
PARKING BRAKE LEVER:
Use the parking brake lever
to engage the brake when you leave the unit.
THROTTLE CONTROL LEVER: Use the throttle control
lever to increase or decrease the speed of the engine.
