Webb 12530 - How to Install the Wheels

MAINTENANCE

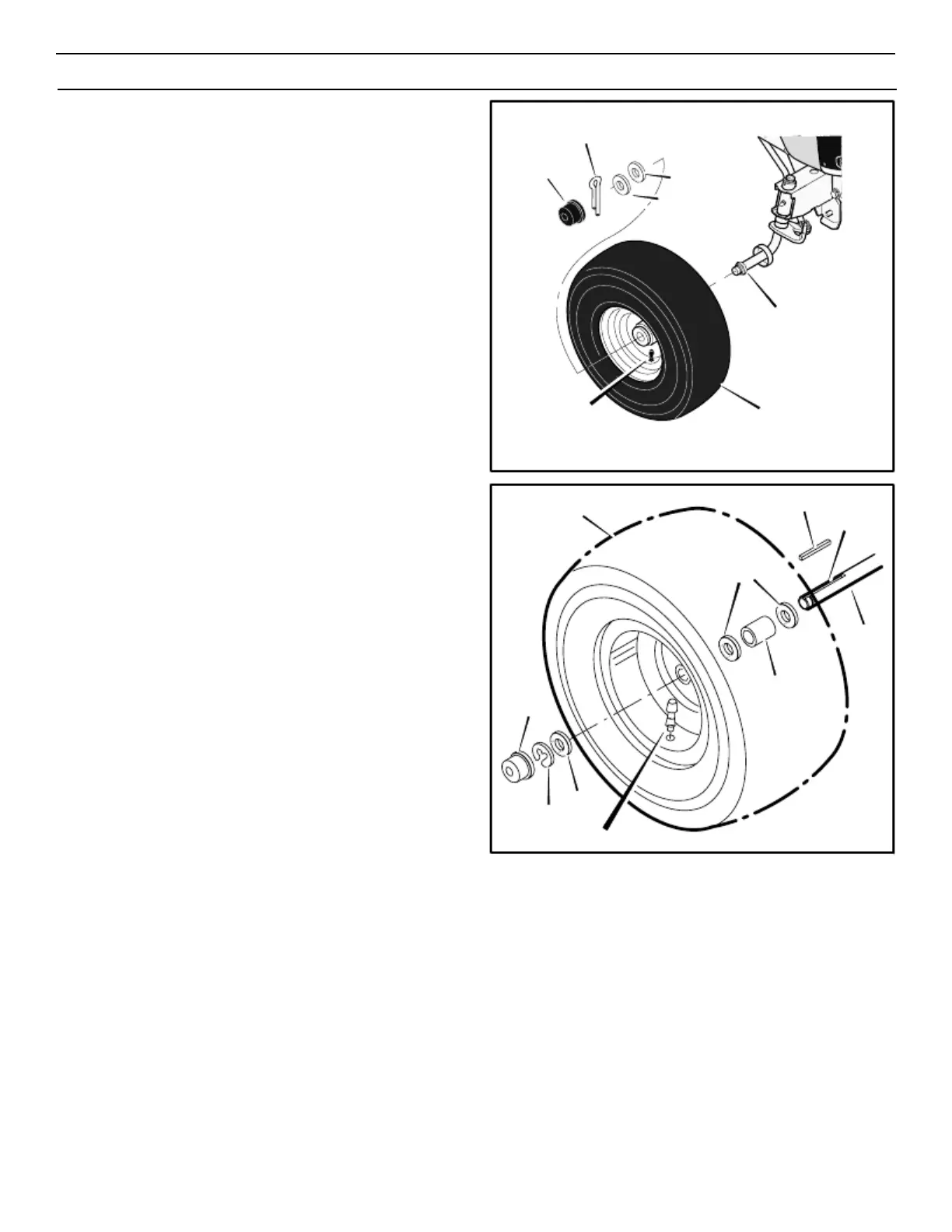

HOW TO INSTALL THE WHEELS
Cotter Pin
If the wheels must be removed for service, make sure they are
installed as follows.
Hub Cap
Washer
Washer
Front Wheel
1.
2.
Make sure the valve stem is to the outside of the tractor. Slide
the front wheel on the spindle (See Figure 33).
Fasten the front wheel with washer and cotter pin. Bend the
ends of the cotter pin apart to keep the front wheel on the
spindle.
Spindle
Valve Stem
Front Wheel
3. If your model has hub caps, install the hub caps. Make sure
the washer holds the hub caps in place.
Figure 33
Rear Wheel
1. Install the washers and spacer onto the axle as shown in
Figure 34.
Rear Wheel
Washer
Square Key
Key Slot
2.
3.
4.
Mount the square key in the key slot (See Figure 34).
Make sure the valve stem is to the outside of the tractor. Align
the slot in the rear wheel with the square key. Slide the rear
wheel on the axle.
Fasten the rear wheel with the washer and e-ring.
Hub Cap
E-Ring
Washer
Spacer
Axle
5. If your model has hub caps, install the hub caps. Make sure
the washer hold the hub caps in place.
Valve Stem
Figure 34
33
