MAINTENANCE
HOW TO REPLACE THE MOWER DRIVE BELT
1.
2.
3.
Remove the mower housing. See the instructions on “How To
Remove The Mower Housing”.
Pull the belt retainer away from the idler pulley and remove
the mower drive belt (Figure 32).
Pull the brake pad away from the jackshaft pulley and
remove the mower drive belt.
5.
6.
Pull the belt retainer away from the idler pulley. Put the
mower drive belt around the idler pulley.
Make sure the “V” side of the mower drive belt is against the
jackshaft pulley and the idler pulley.
NOTE: Replace the mower drive belt with an original
equipment belt from an authorised service centre.
4. Install the new mower drive belt. Pull the brake pad away
from the jackshaft pulley. Put the mower drive belt around
the jackshaft pulley.
Mower Drive Belt
7.
8.
Install the mower housing. See the instructions on “How To
Install The Mower Housing”.
Before you mow, check the blade rotation control. See the
instructions on “How To Adjust The Blade Rotation Control”.
Idler Pulley
Belt Retainer
Jackshaft Pulley
Brake Pad

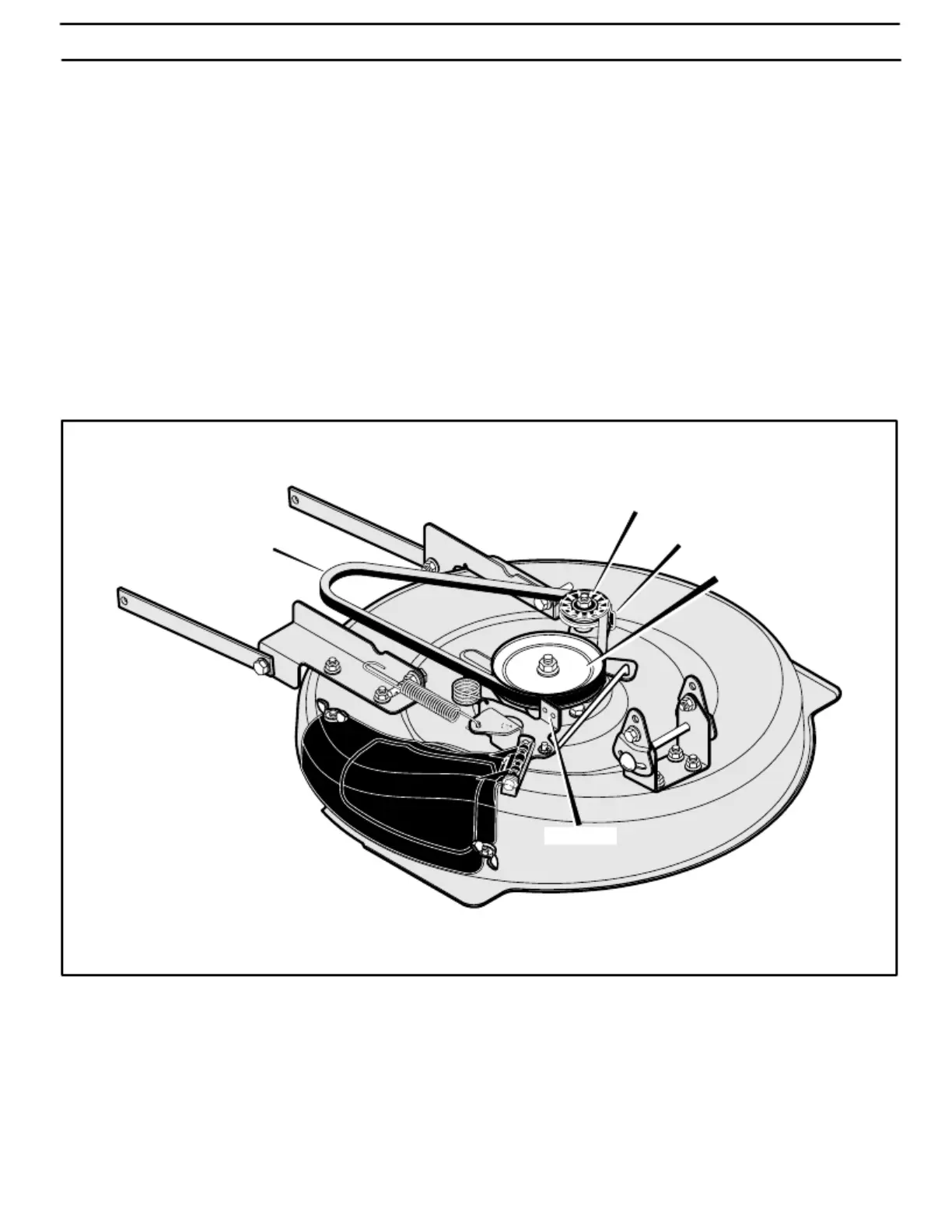

Figure 32
