Weber mt CR 8 - Start Module MS 15 (CR 8); MS 15 Module Indicators and Controls

15
5
1
2
4
3

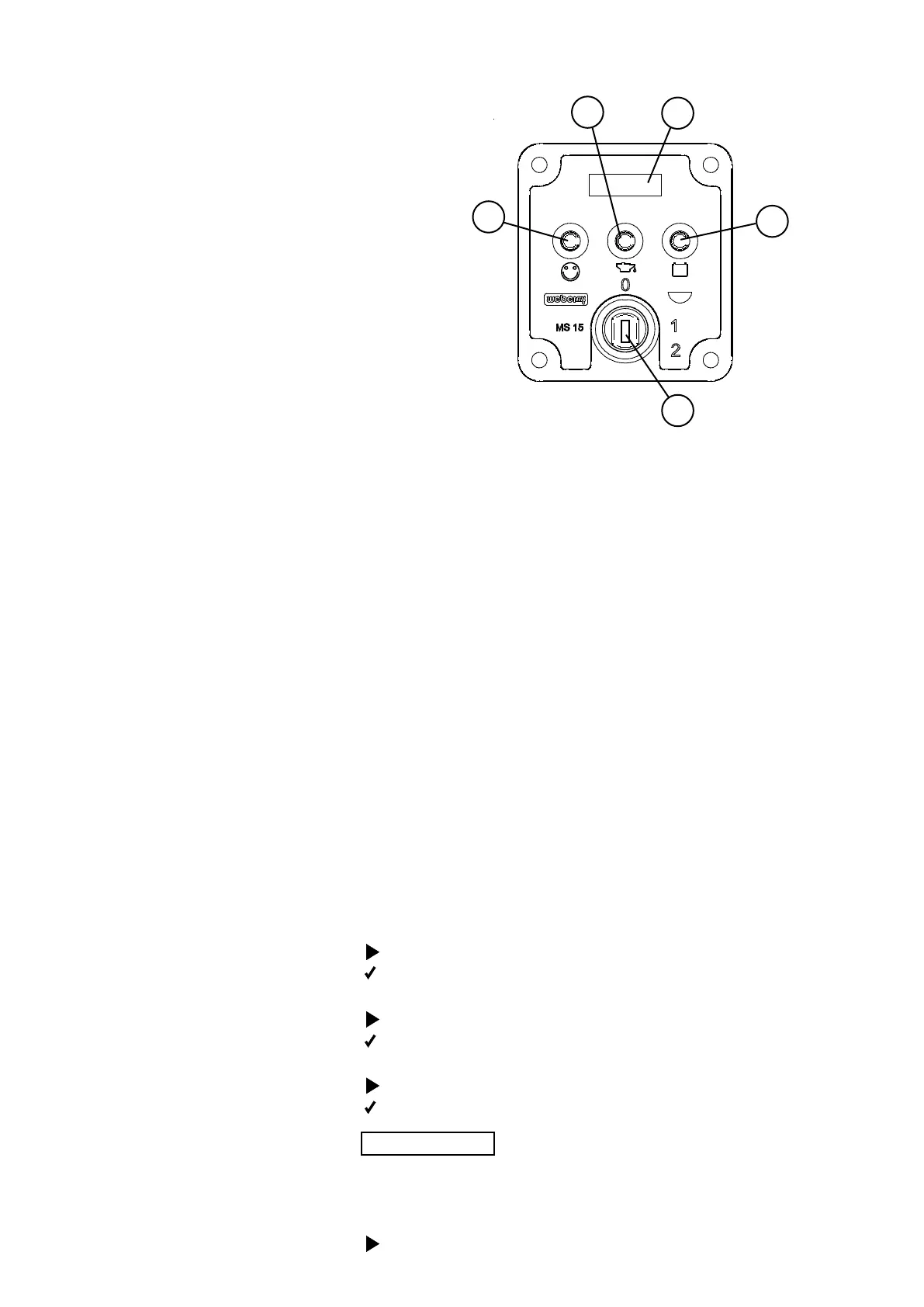

The start module
MS 15 (CR 8)
1 Operational status indicator
(LED)
2 Oil pressure indicator (LED)
3 Operating hours counter
4 Charge level indicator (LED)
5 Key switch
Figure 2
This indicator signals that the ignition of the machine is
switched on. It comes on as soon as the key switch (5)
is set to position “1”.
This indicator warns of insu󰀩cient oil pressure.
Shut down the machine immediately when this indicator
comes on.
This eld shows the operating hours completed by
the machine.
The counter will show the remaining time until the next
scheduled maintenance for the rst 10 seconds after the
ignition was switched on (key switch (5) in position “1”).
This indicator comes on if the charging current supply to the
starter battery is insu󰀩cient. While operation of the machine
can resume, the cause of the insu󰀩cient charging current
supply must be identied and rectied.
The key switch is used to switch the power supply (ignition)
to the machine on or o󰀨. It also actuates the electric starter of
the engine.
Switch in position “1”
The ignition is switched on.
Switch in position “0”
The ignition is switched o󰀨.
Switch in position “2”
The electric starter is actuated.
ATTENTION
Danger of material damage from running electric starter.
The ignition key must spring back from position “2” to
position “1”. Otherwise:
Shut down the machine immediately.
