Weber 100 - EXPLODED VIEW Q120; Lid; Cookbox; Burner Tube

WWW.WEBER.COM
®
5

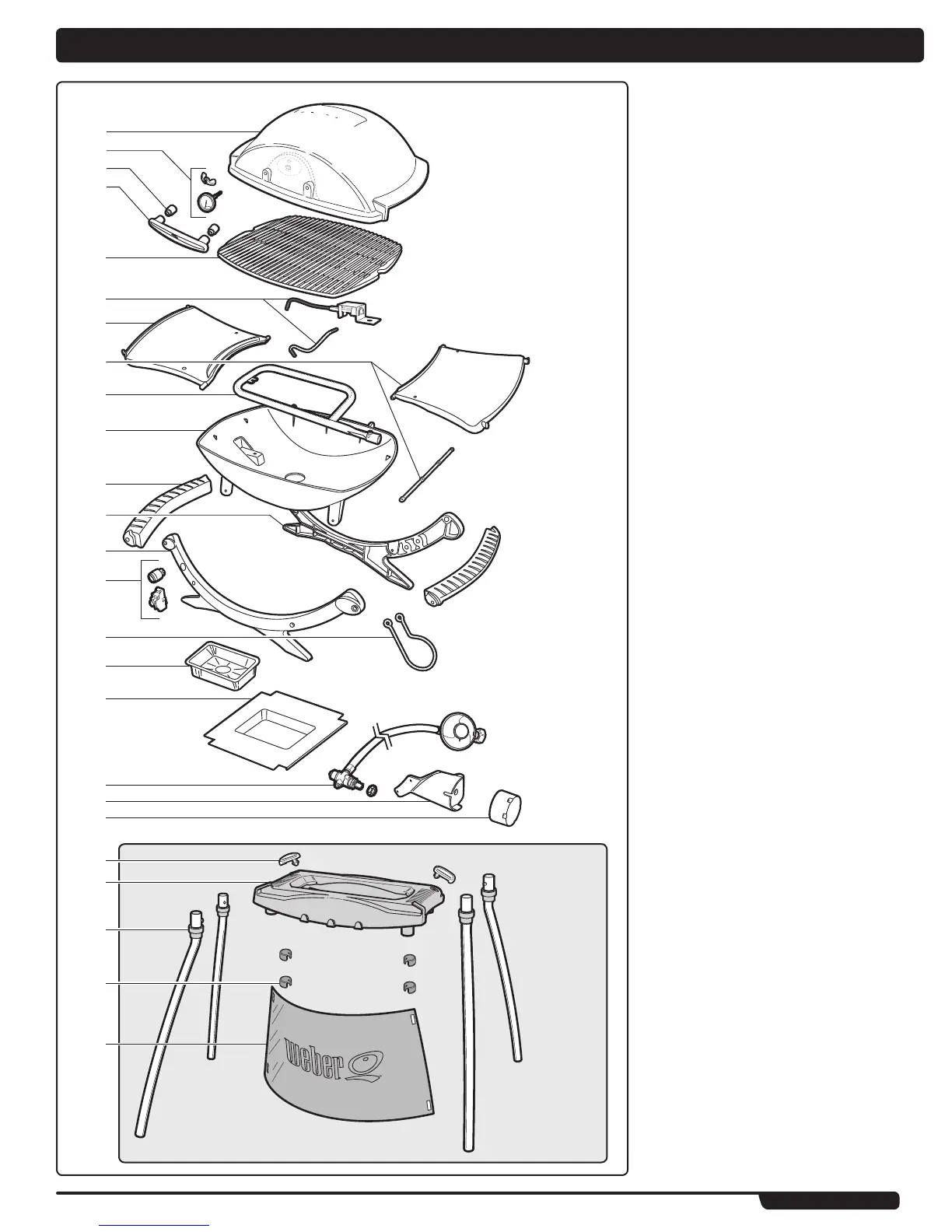

EXPLODED VIEW Q120
1. Lid
2. Thermometer
3. Handle Spacer
4. Handle
5. Cooking Grate
6. Igniter Electrode Assembly
7. Left Side Table
8. Right Side Table Assembly
9. Burner Tube
10. Cookbox
11. Carrying Handle
12. Rear Cradle
13. Front Cradle
14. Igniter Button/Igniter Module
15. Hose Bracket
16. Disposable Drip Pan
17. Catch Pan
18. Valve, Hose and Regulator Assembly
19. Control Panel
20. Control Knob
21. Q
®
Stand Retention Clips
22. Q
®
Stand Table
23. Q
®
Stand Legs
24. Q
®
Stand Skirt Clips
25. Q
®
Stand Skirt
21
22
24
23
25
1
2
3
4
5
6
8
9
10
14
13
15
12
11
16
17
18
19
20
7
Q120_FR_LP_070110
