Step 9
Install tank panel assembly
You will need: tank panel assembly, 1/4-20 x 1 1/4 inch
bolt, 1/4-20 hex nut, nylon washer and a 7/16 inch wrench.
Insert the tank panel tabs into the slots in the frame brace.
Slide up until the notch at the bottom of the tank panel fits
over the cross brace. Figure 10 (a).
Add the washer to the bolt. Put the bolt through panel and
frame brace, add hex nut and tighten with the 7/16 inch
wrench. Figure 10 (b).

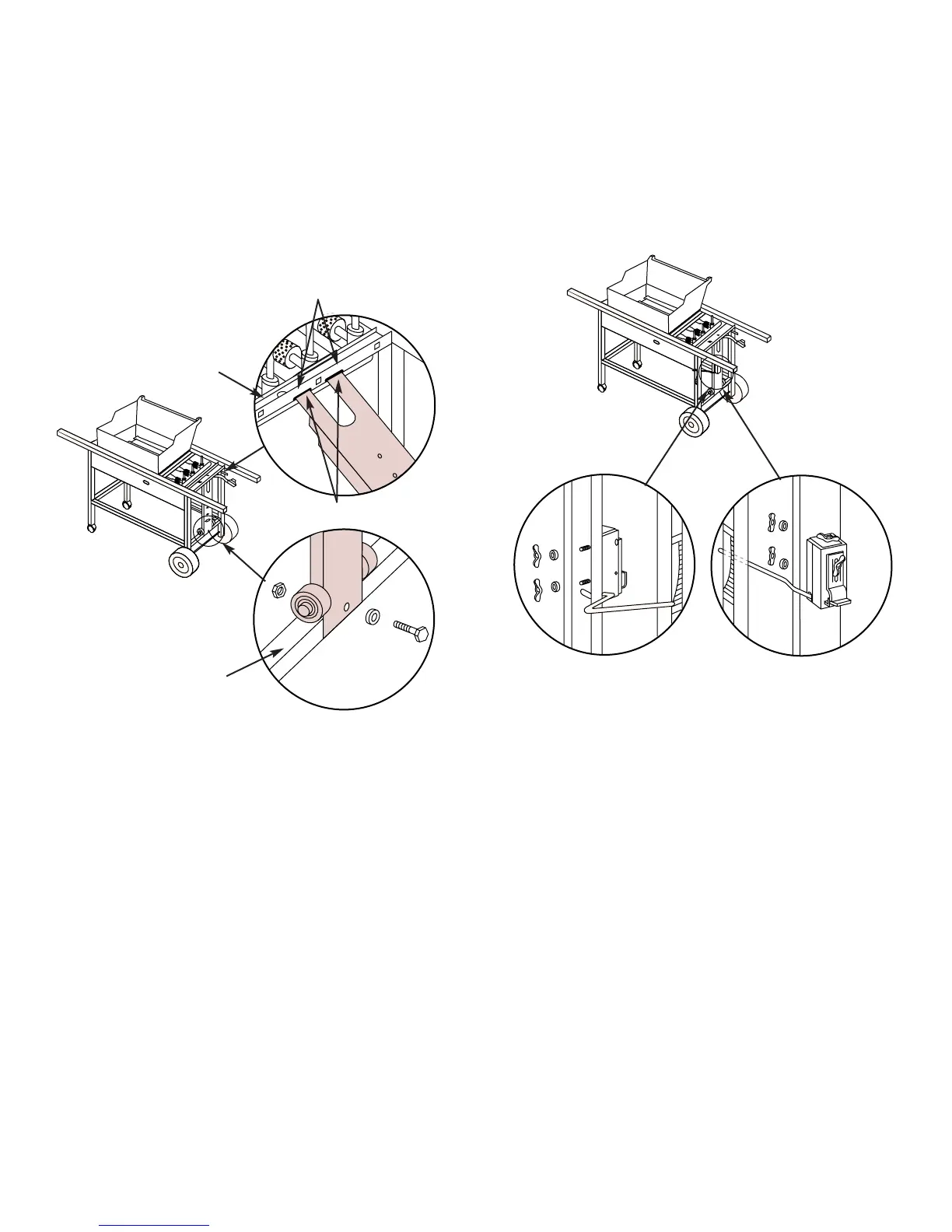

Figure 10
(a)
(b)
Tabs on tank panel
Slot in frame brace
Frame brace
Cross brace
Step 10
Add fuel scale
You will need: fuel scale, two 1/4-20 wing nuts and two
nylon washers.
Slip the bolts on the back of the fuel scale assembly through
the two small holes in the tank panel. Make sure indicator
rod of fuel scale is on the left side of the wheel frame.
Add washers, then wing nuts and tighten. Figure 11.
