ANNUAL MAINTENANCE
BURNER TUBE CLEANING OR
REPLACEMENT
Confirm that Barbecue is Off and Cool
A) Turn gas supply off at source and disconnect LPG
cylinder.
B) Check that all burner control knobs are in the off
( )position. Check by pushing burner control knobs
in and turning them clockwise until they stop. If they
do not turn, they are already off. If they do turn,
continue turning them clockwise until they stop; then
they are off.
C) Open lid and remove cookbox components.
Remove Burner Tubes
You will need: A 3/8" spanner.

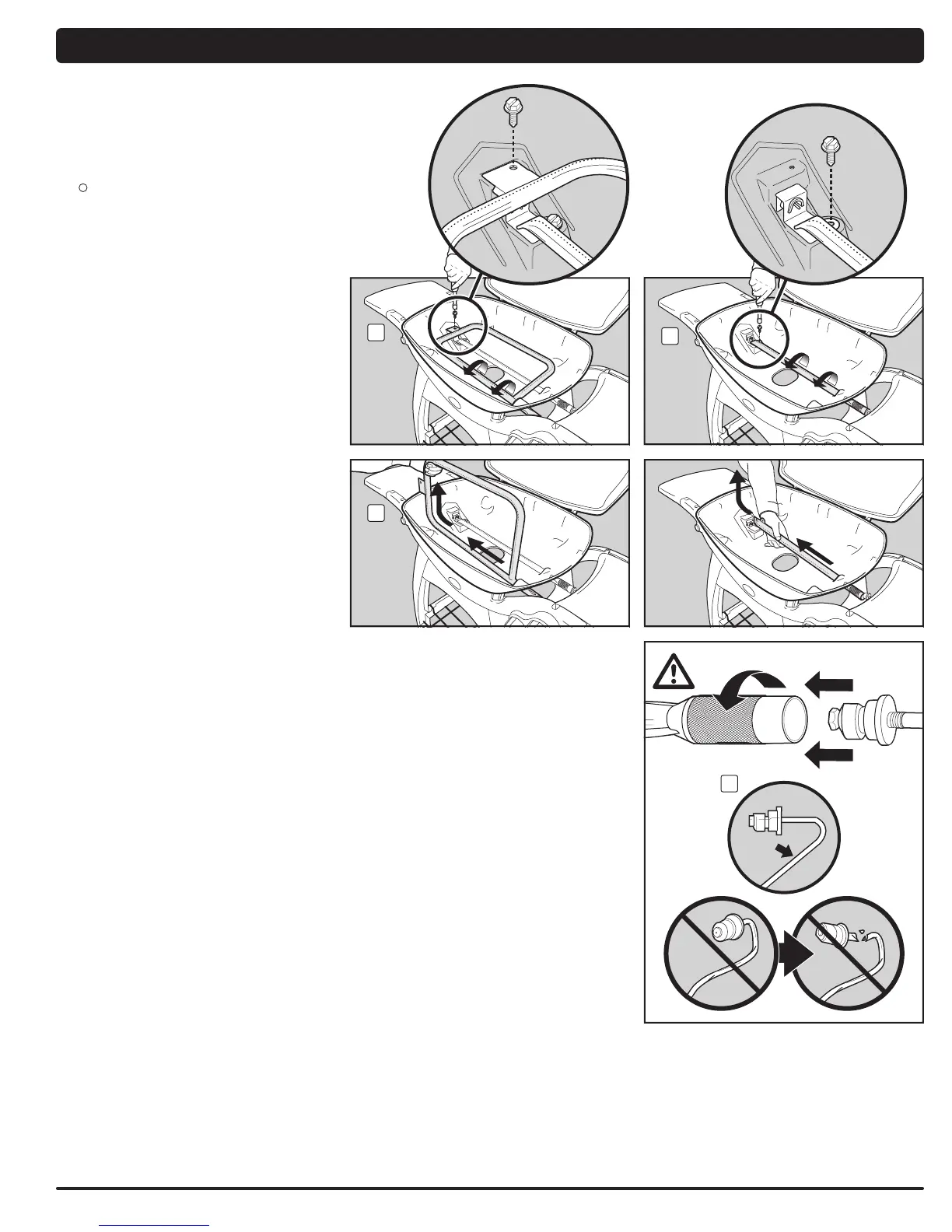

A) Remove the screw that holds the outside burner tube
to the cookbox (1).
B) Rotate the outside burner tube 90°. Slide and lift
burner tube away from valve orifice and remove from
cookbox (2).
C) Repeat this procedure for the inside burner tube (3).
m CAUTION: Care must be taken when
removing or reinstalling burner tubes.
Do not force or bend the gas lines
that connect the control valves to the
burner tubes (4).
4
1
2
3
