WWW.WEBER.COM
®
12
LPG CYLINDER INSTALLATION OUTSIDE CABINET
OUTSIDE CABINET REQUIREMENTS
If the cylinder you have does not meet the size
requirements for placement inside the cabinet, the
cylinder must be placed on the ground outside and to the
right of the cabinet. The maximum size requirements for
cylinders installed outside the cabinet are:
Cylinder Capacity: 13 kg maximum
Cylinder Height: 587 mm maximum
Cylinder Width: 306 mm maximum
GROUND PLACEMENT INSTALLATION

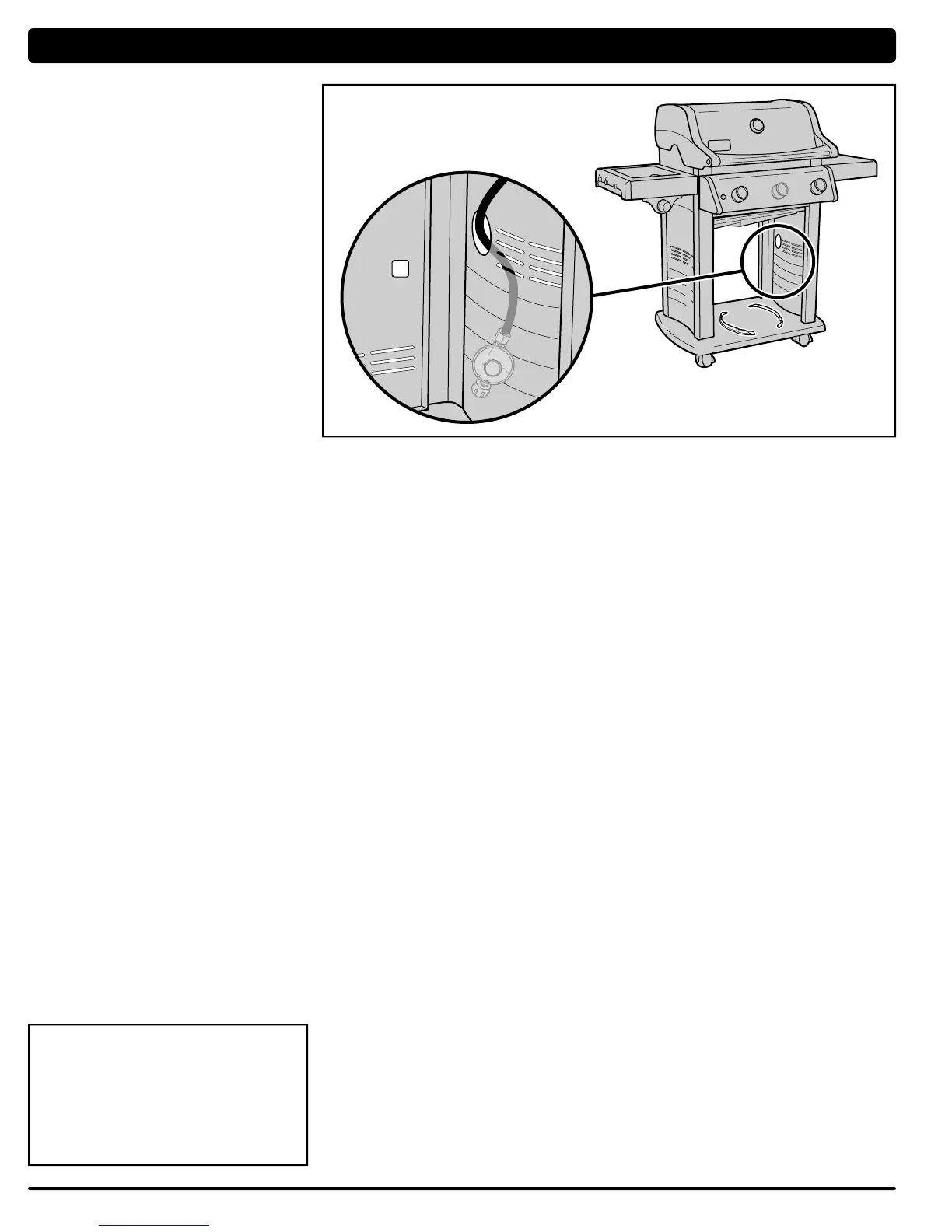

A) Pass the regulator hose (1) out through the side panel
opening.
B) Place the cylinder on the ground, outside the cabinet,
on the right side of the grill.
C) Turn the LPG cylinder so the opening of the valve is
facing forward.
D) Connect the regulator to the LPG cylinder. Refer to
“CONNECTING THE REGULATOR.”
1
Maximum LPG cylinder
capacity OUTSIDE cabinet is
13 kg.
The length of hose must not
exceed 1.5 metres.
