32
ROUTINE MAINTENANCE
MAINTAINING THE CROSSOVER
®
IGNITION SYSTEM
The igniter supplies power to the Crossover
®
ignition
system with one igniter button. Whether you are
performing routine maintenance or a troubleshooting
check on the ignition system, read the following to keep
your ignition system working properly.
If the Crossover
®
ignition system fails to ignite, you'll
need to pinpoint where the problem is occurring: with the
gas flow or with the ignition system. Begin by attempting
to match-light your burners. Refer to “MAIN BURNER
IGNITION - Lighting with a Match.” If match-lighting is
successful, the problem lies in the ignition system.

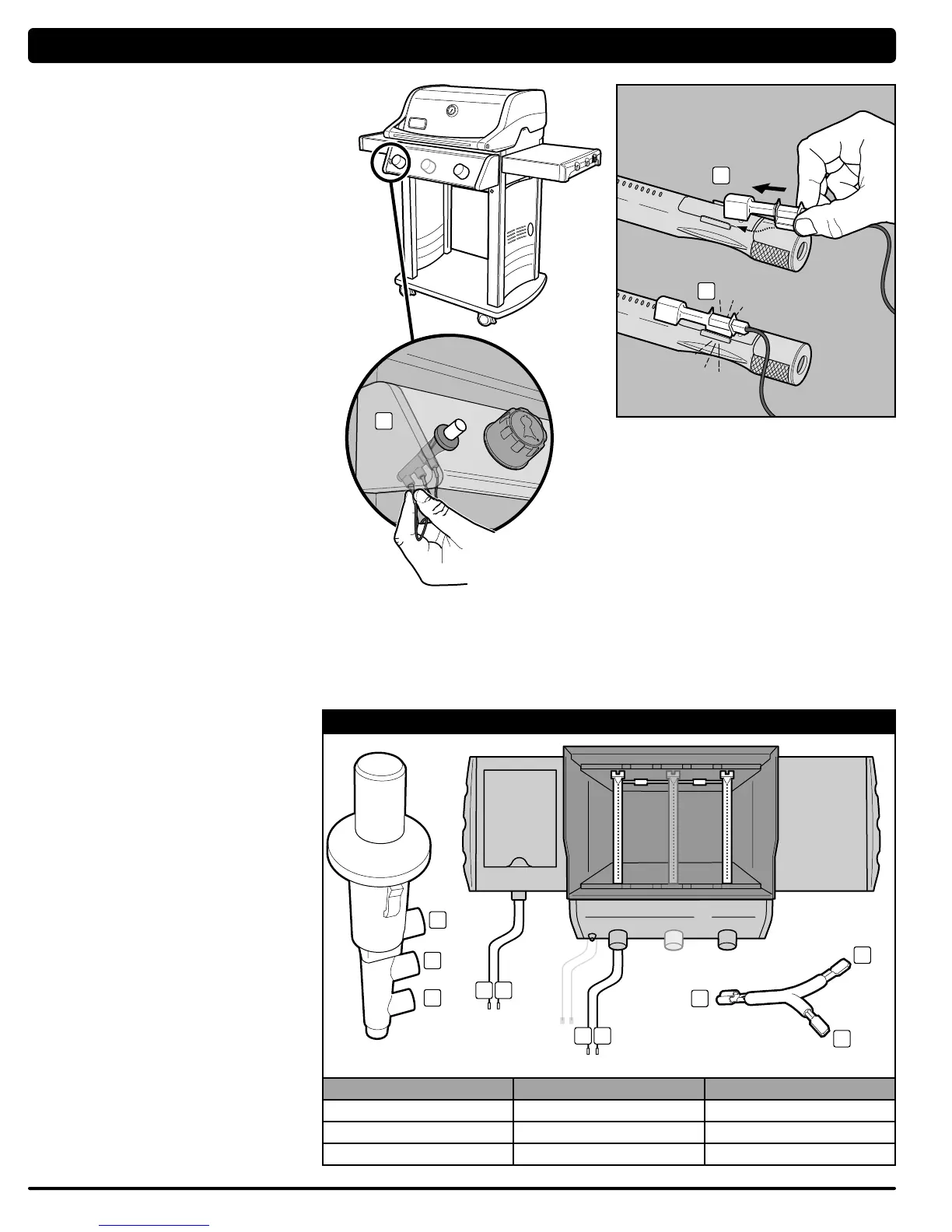

• Make sure the igniter wires are attached to the
igniter(1).
• Make sure the ceramic igniter assembly is fully
inserted into burner tube igniter channel (2). If properly
positioned, you will hear a snap (3).
• Make sure the igniter button is working by listening for
a click and looking for sparks at burner.
If the Crossover
®
ignition system still fails to ignite,
contact the Customer Service Representative in your
area using the contact information on our web site.
Log onto www.weber.com
®
.
1
2
3
IGNITER BUTTON WIRE CHART
1
3
2
2
4
3
1
5
5
4
BURNER 1 SIDE BURNER IGNITER BUTTON
Black Terminal (1) Black Terminal (3) Black Terminal (3)
White Terminal (2) White Terminal (4) White Terminal (5)
Black Terminal (1)
