ANNUAL MAINTENANCE
4
3
2
1
1
2
3
BURNER TUBE CLEANING
OR REPLACEMENT (continued)

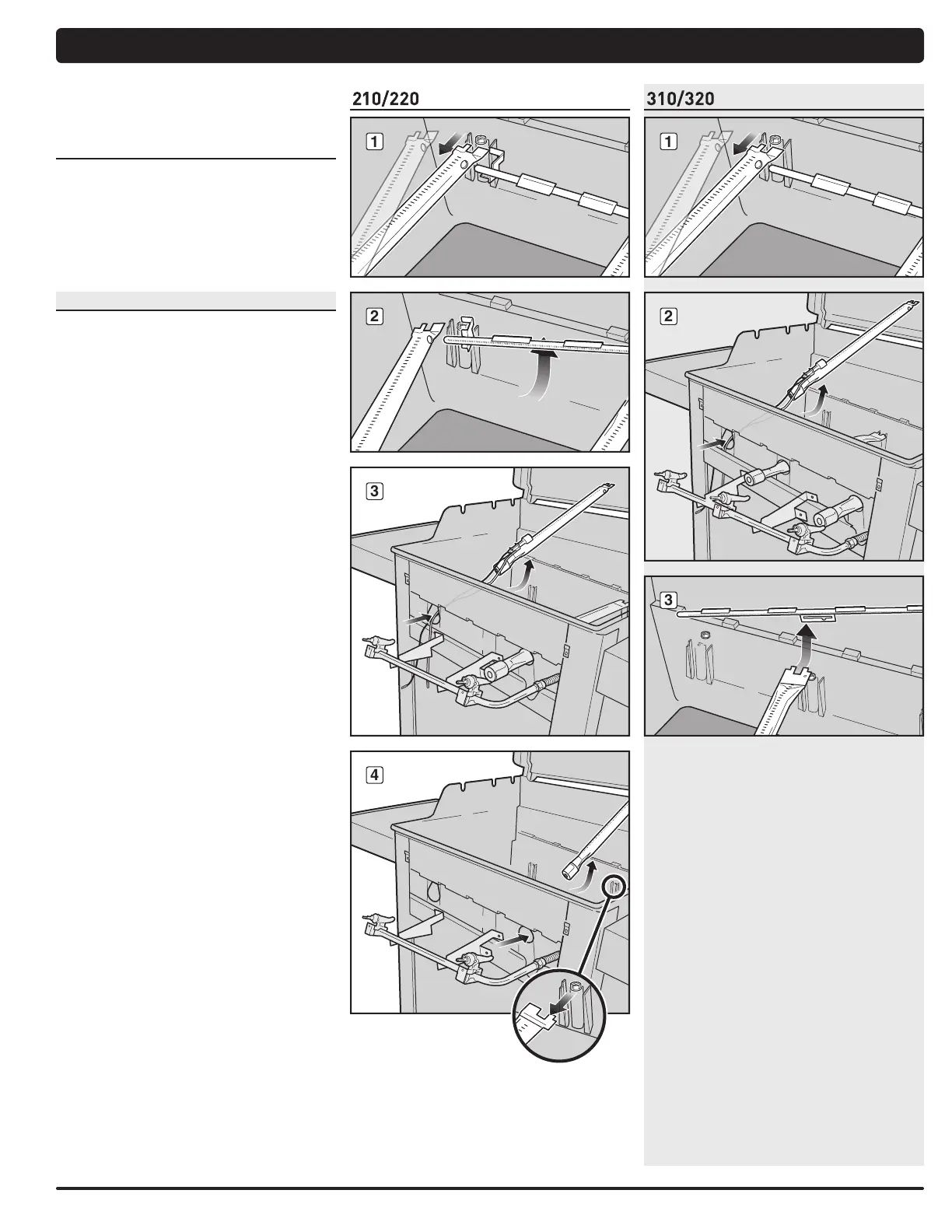

Remove Burner Tubes
For Spirit
®
grills with 2 burners (210 and 220 models):
A) Slide burner tube 1 out from under the guide screw
and washer. Move burner tube 1 slightly to the left to
detach it from Crossover
®
tube(1).
B) Remove Crossover
®
tube(2).
C) Lift burner tube 1 up and out of cookbox while guiding
the wires through the hole in the cookbox(3).
D) Slide burner tube 2 out from under the guide screw
and washer. Lift burner tube 2 up and out of the
cookbox(4).
For Spirit
®
grills with 3 burners (310 and 320 models):
A) Slide burner tube 1 out from under the guide screw
and washer. Move burner tube 1 slightly to the left to
detach it from Crossover
®
tube(1).
B) Lift burner tube 1 up and out of cookbox while guiding
the wires through the hole in the cookbox(2).
C) Slide burner tube 3 out from under the guide screw
and washer. Move burner tube 3 slightly to the right to
detach it from Crossover
®
tube. Lift burner tube 3 up
and out of cookbox.
D) Slide burner tube 2 out from under the guide screw
and washer. Remove the Crossover
®
tube by moving it
toward back of cookbox (3). Lift burner tube 2 up and
out of cookbox.
