ROUTINE MAINTENANCE
CLEANING SIDE BURNER TUBE
Remove Side Burner Valve
You will need: A Phillips screwdriver.

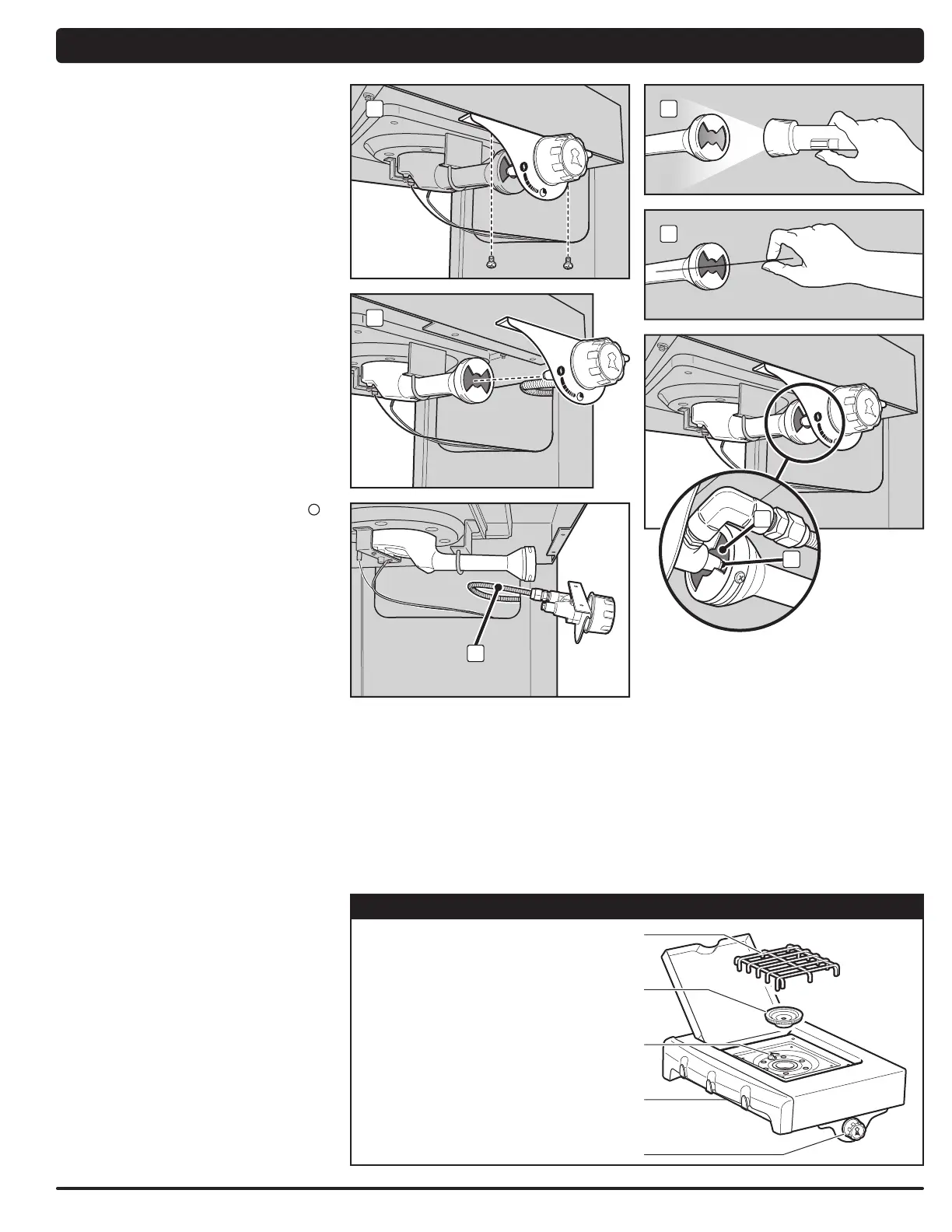

A) Remove the two screws that secure the side burner
valve plate to the side burner table (1).
B) Release the side burner valve from burner tube by
gently pulling the assembly forward (2). Use care not
to kink the corrugated gas line (3).
Clean the Burner Tube
You will need: A ashlight, a wire (a straightened-out coat
hanger), a suitable stainless steel bristle brush.
A) Look inside the burner tube with a ashlight (4).
B) Clean any debris or blockage from the inside of the
tube with the wire (5).
Reinstall Side Burner Valve
You will need: A Phillips screwdriver.
A) Align side burner valve with side burner tube opening.
m CAUTION: The side burner tube
opening (6) must be positioned
properly over the side burner valve
orice (7).
B) Secure the side burner valve plate to the side burner
table using two screws.
SIDE BURNER MAINTENANCE
m WARNING: All gas controls and
supply valves should be in the off ( )
position.
• Makesureblackigniterwireandwhitegroundwireare
attached to the igniter module inside the base cabinet.
Refertothe“IGNITERMODULEWIREGUIDE.”
• Checkthatthewiresarenotkinked.
• Makesuretheelectronicigniterbuttonisworkingby
listening for clicking and looking for sparks at burner.
• Thesparksshouldbeawhite/bluecolor,notyellow.
3
1
2
4
5
6
7
SIDE BURNER EXPLODED VIEW
Side Burner Grate
Side Burner Head
Side Burner Tray
Side Burner Table
Side Burner Control Knob
