Weber Spirit PREMIUM E-310 - Page 23

WWW.WEBER.COM 23
ANNUAL MAINTENANCE
BURNER TUBE CLEANING
OR REPLACEMENT (continued)

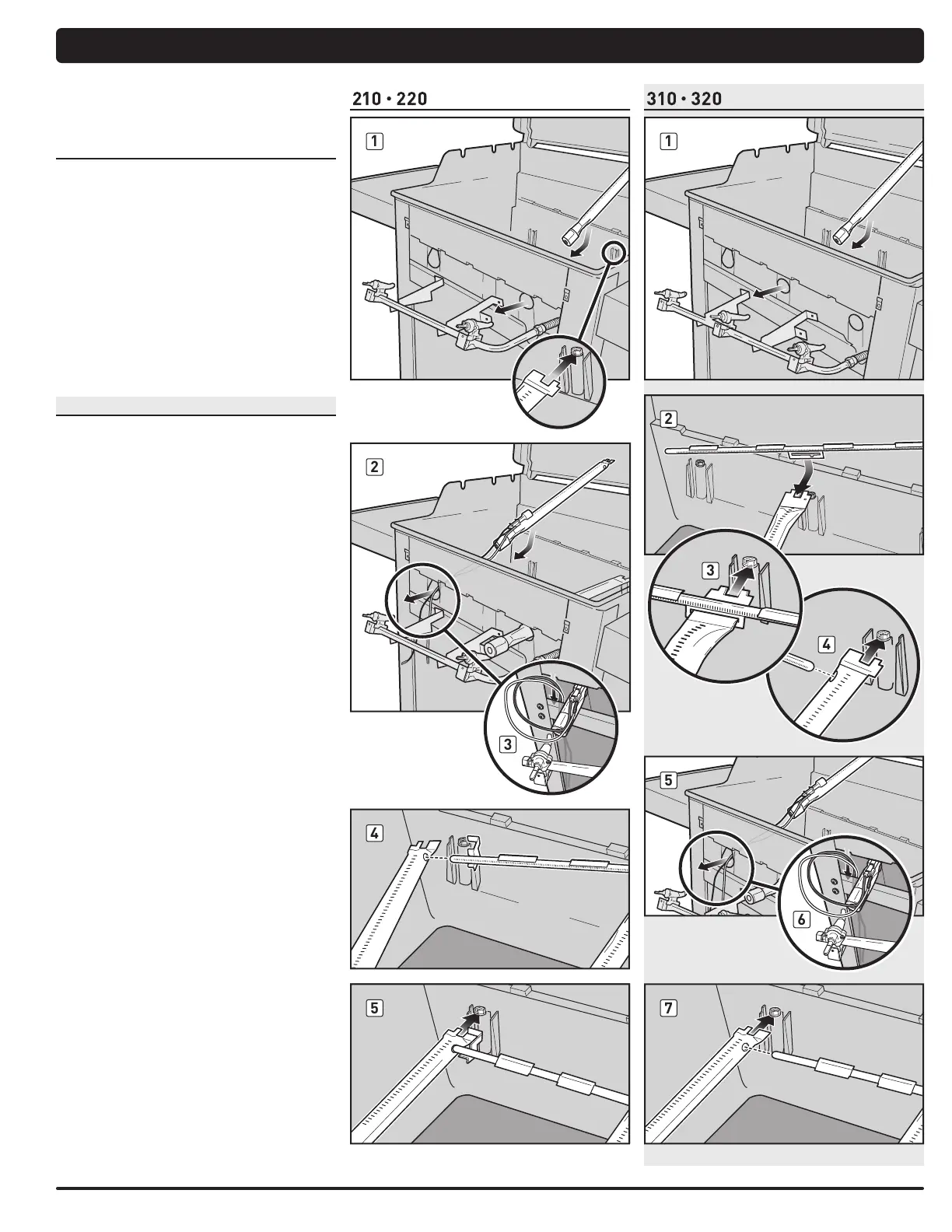

Reinstall Burner Tubes
For barbecues with 2 burners (210 models):
A) Put burner tube 2 inside cookbox and pass the front
end of tube out through burner tube 2 opening. Note:
Single row of burner ports should be facing up. Slide
burner tube 2 under the guide screw and washer(1).
B) Put burner tube 1 inside cookbox and pass ignitor
wires and the front end of tube out through burner
tube 1 opening(2). Guide wires from burner tube 1
between front cross brace and cookbox and down into
cabinet(3).
C) While holding burner tube 1, insert left side of
Crossover burner tube into Crossover burner hole(4).
Guide right side of Crossover burner tube into
Crossover burner hole in burner tube 2 (not pictured).
Note: The Crossover burner tube ports should face the
front of the cookbox.
D) Slide burner tube 1 under the guide screw and
washer(5).
For barbecues with 3 burners (310 & 320 models):
A) Put burner tube 2 inside cookbox and pass the front
end of tube out through burner tube 2 opening(1).
Note: Single row of burner ports should be facing up.
B) Slide Crossover burner tube alignment guide over the
end of burner tube 2 (2). Note: The Crossover burner
tube ports should face the front of the cookbox. With
Crossover burner tube attached, slide burner tube 2
under the guide screw and washer(3).
C) Put burner tube 3 inside cookbox and pass the front
end of tube out through burner tube 3 opening (not
pictured). Insert right side of Crossover burner tube
into Crossover burner hole in burner tube 3. Slide
burner tube 3 under the guide screw and washer(4).
D) Put burner tube 1 inside cookbox and pass ignitor
wires and the front end of tube out through burner
tube 1 opening (5). Guide wires from burner tube 1
between front cross brace and cookbox and down into
cabinet(6).
E) While holding burner tube 1, insert left side of
Crossover burner tube into Crossover burner hole.
Slide burner tube 1 under the guide screw and
washer(7).
