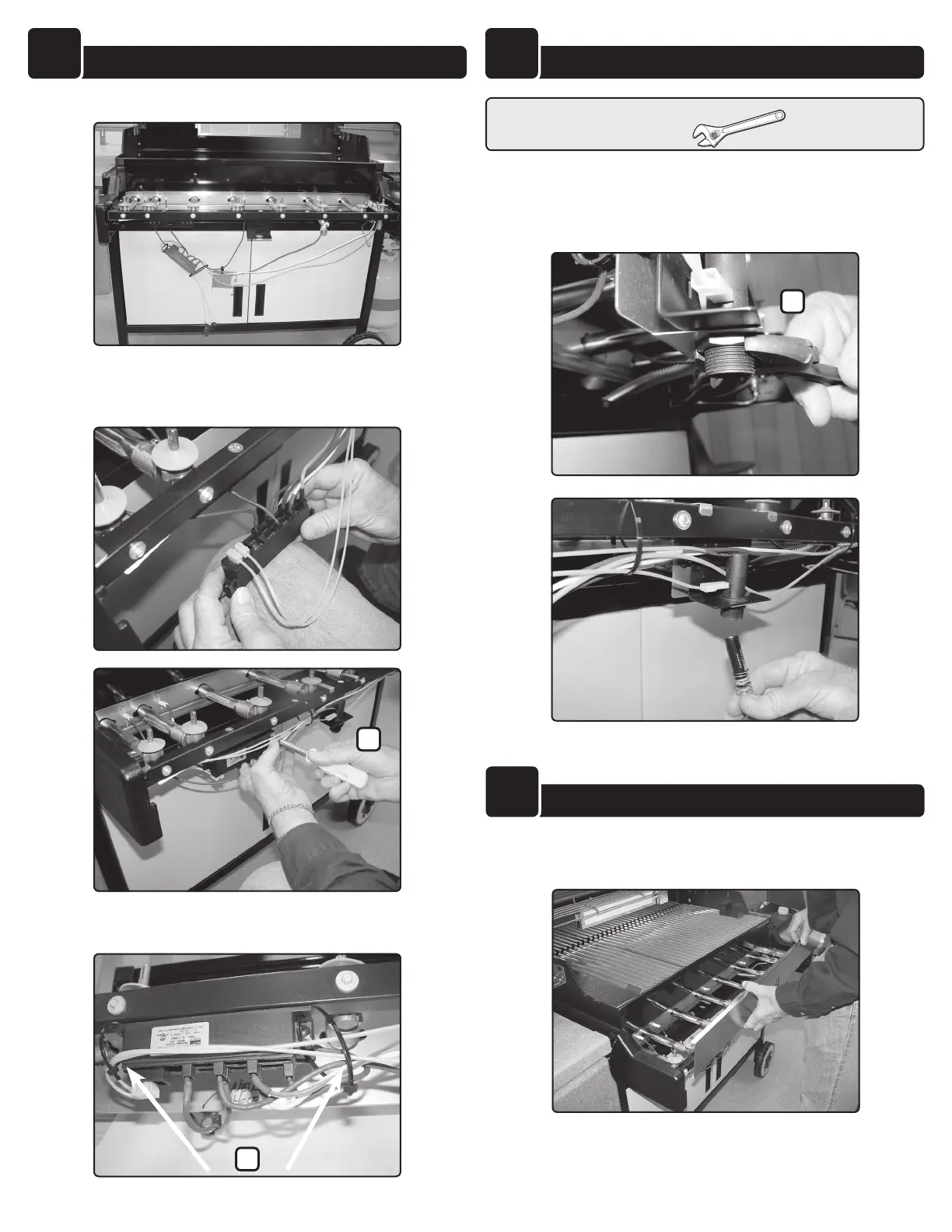

Weber Summit Series Replacement Instructions

12
REPLACE
IGNITION MODULE
A) Make sure that all wires remain connected to the ignition module.
B) Replace ignition module back into mounting position. Using a phillips
screwdriver secure the two mounting screws on the left and right of the
ignition module (1).
C) Replace the two nylon wire ties to the ignition module (2).
13
REPLACE
BATTERY CASE
A) Replace battery case to heat shield. Using an adjustable wrench tighten
the nut that holds the battery case to the heat shield and igniter mounting
bracket (1).
B) Replace the Spring and battery back into the battery case. Replace and
screw the battery cap with red button back onto the battery case.
1 4
REPLACE
FRONT PANEL
A) Replace the stainless steel front panel. Slide the panel down and back into
the fire box end caps locating slots.
1
2
1
