24
OPERATING INSTRUCTIONS

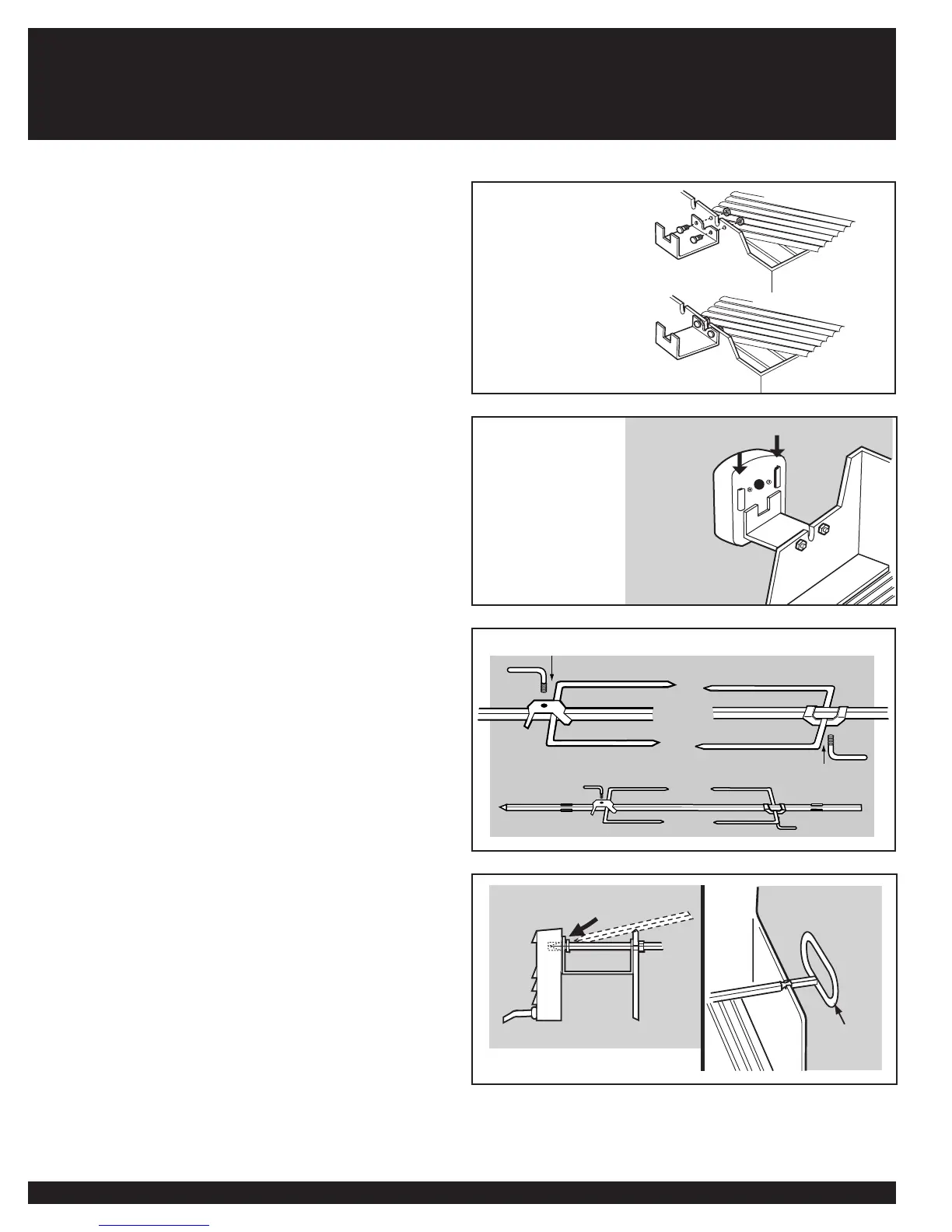

ROTISSERIE ASSEMBLY
Parts required: rotisserie motor bracket(1), rotisserie motor(1), rotisserie
shaft(1), spit forks(4) and fork screws (4).
1) Install the motor bracket
Attach the stainless steel motor bracket to the left side of the cooking
box, using the 1/4-20 fasteners and the 1/4-20 Keps nuts.
2) Attach the motor.
Slide the motor onto the motor bracket.
3) Put the spit forks on the rotisserie shaft.
Slide a spit fork from each side onto the shaft so that the tines are
facing each other. Reverse forks to each other so that one fork screw is
on top(1) and one is on the bottom(2), as shown in illustration. Screw in
the split fork screws to hold the forks in place.
4) Insert the rotisserie shaft in the motor.
Insert the pointed end of the rotisserie shaft into the motor.
5) Set the rotisserie shaft onto rotisserie support block.
Place the handle (3) end of rotisserie onto the support notch.
(1)
(2)
(3)
SUMMIT
®
D
