MAINTENANCE

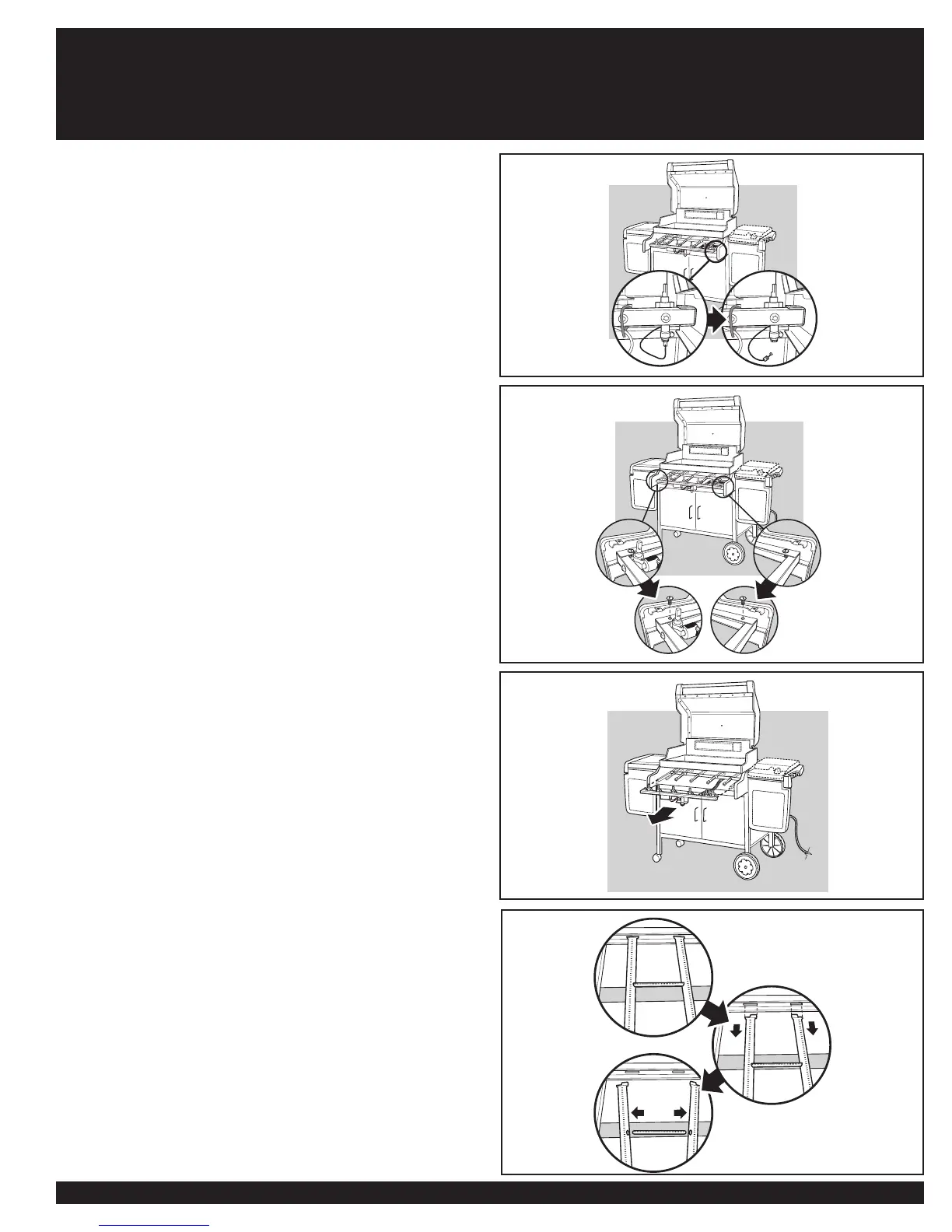

9. Disconnect the Thermocouple from the IR Burner valve.
(a )
(a
(b )
(b )
10. Remove screws from the manifold assembly: (a) Locate the screws
on both sides of the manifold frame.
(b) Remove the screws from manifold frame.
11. Pull manifold assembly out from the manifold frame.
A
B
B
12. Lift and twist the burner assembly slightly, to separate the Crossover
®
tube (a) from the burners (b).
