Faults and Alarms
CFW501 | 14-5
14
14.3 MOTOR OVERTEMPERATURE PROTECTION (F0078)
This function protects the motor against overtemperature through indication of fault F0078.
The motor needs a temperature sensor of the triple PTC type. The reading of the sensor can be done in two
different ways: through the analog input or through the digital input.
For the reading of the PTC via analog input, it is necessary to configure it for current input and select option
“4 = PTC” in P0231, P0236 or P0241. Connect the PTC between source +10 Vdc and the analog input, as
well as the AIx configuration DIP-Switch in "mA".
The analog input reads the PTC resistance and compares it to the limits values for the fault. When those values
are exceeded, fault F0078 is indicated, as shown in Table 14.1: Actuation level of fault F0078 PTC via analog input
on page 14-5.
ATTENTION!
The PTC must feature reinforced insulation of the live parts of the motor and installation.
Table 14 .1: Actuation level of fault F0078 PTC via analog input
PTC Resistance AIx Overtemperature
R
PTC
< 50 Ω V
IN
> 9.1 V F0078
50 Ω < R
PTC
< 3.9 kΩ 9.1 V > V
IN
> 1.3 V Standard
R
PTC
> 3.9 kΩ V
IN
< 1.3 V F0078
NOTE!
For this function to work properly, it is important to keep the gain(s) and offset(s) of the analog inputs
at the standard values.
NOTE!
The DI2 is the only one that cannot be used as PTC input, because it has input circuit dedicated to
frequency input (FI).

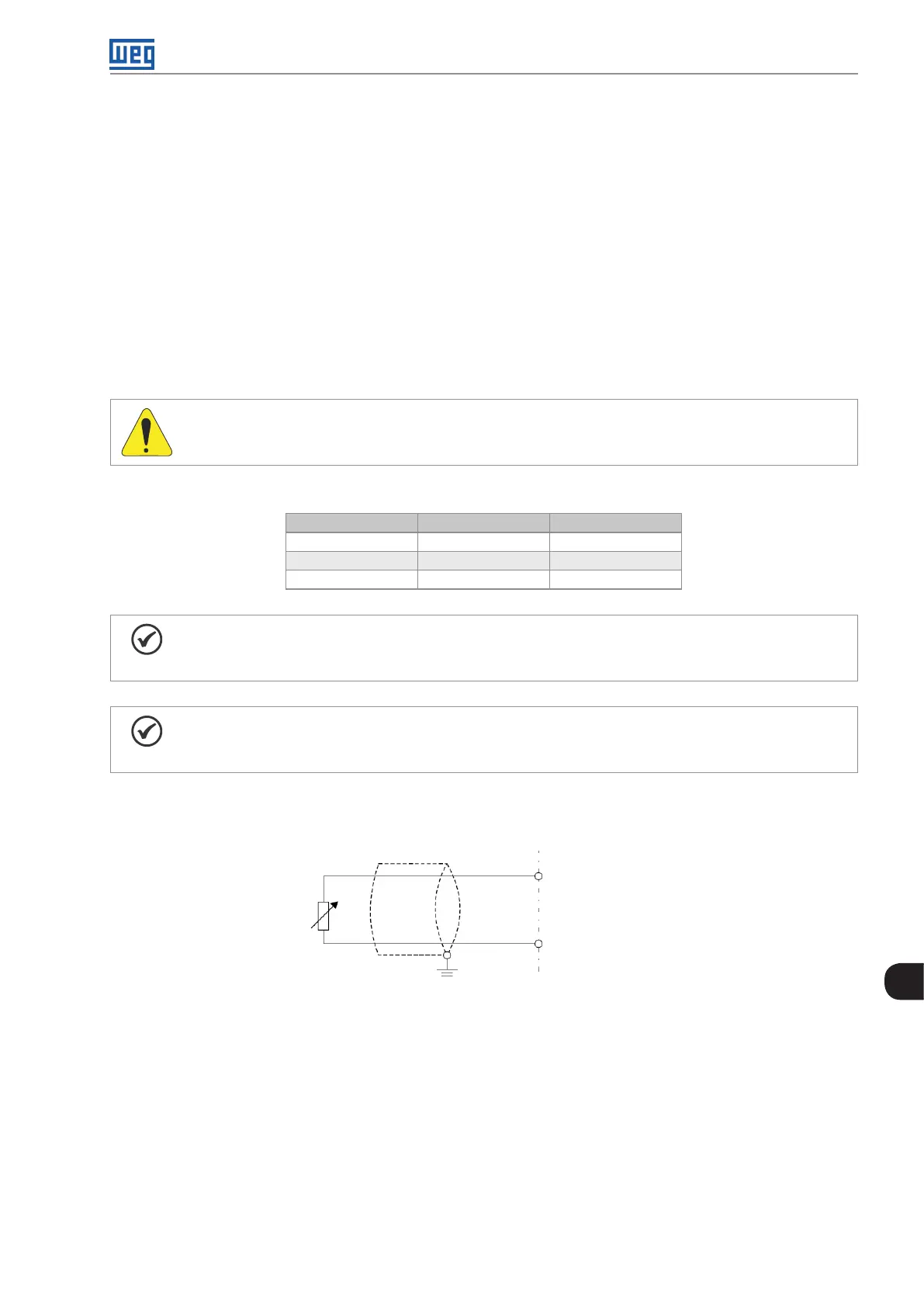

Figure 14.3: PTC connection to the CFW501 via analog input on page 14-5 shows the PTC connection to the
inverter terminals.
+10 V
AIx
(DIP SWITCH = mA)
PTC
Figure 14.3: PTC connection to the CFW501 via analog input
