5.6 SETTING OF DISPLAY INDICATIONS IN THE MONITORING MODE
Whenever the inverter is powered up, the HMI display goes to the monitoring mode. In order to simplify the reading
of the inverter parameters, the display was designed to indicate two parameters simultaneously, at the user’s
discretion. The selection of those parameters is done via P0205and P0206 as indicated in Figure 5.1: Screen on
initialization and display fields on page 5-12.
Inverter operating status
Secondary display (selected by P0206)
presents the content of parameter (xxxxx),
number of the parameter (Pxxxx), fault (Fxxx)
or alarm (Axxx) indication
Engineering unit for the main display
(selected by P0209)
Main display (selected by P0205) presents
the content of parameter (xxxxx), number
of the parameter (Pxxxx), fault (Fxxx) or
alarm (Axxx) indication
Menu
Parameter group selection

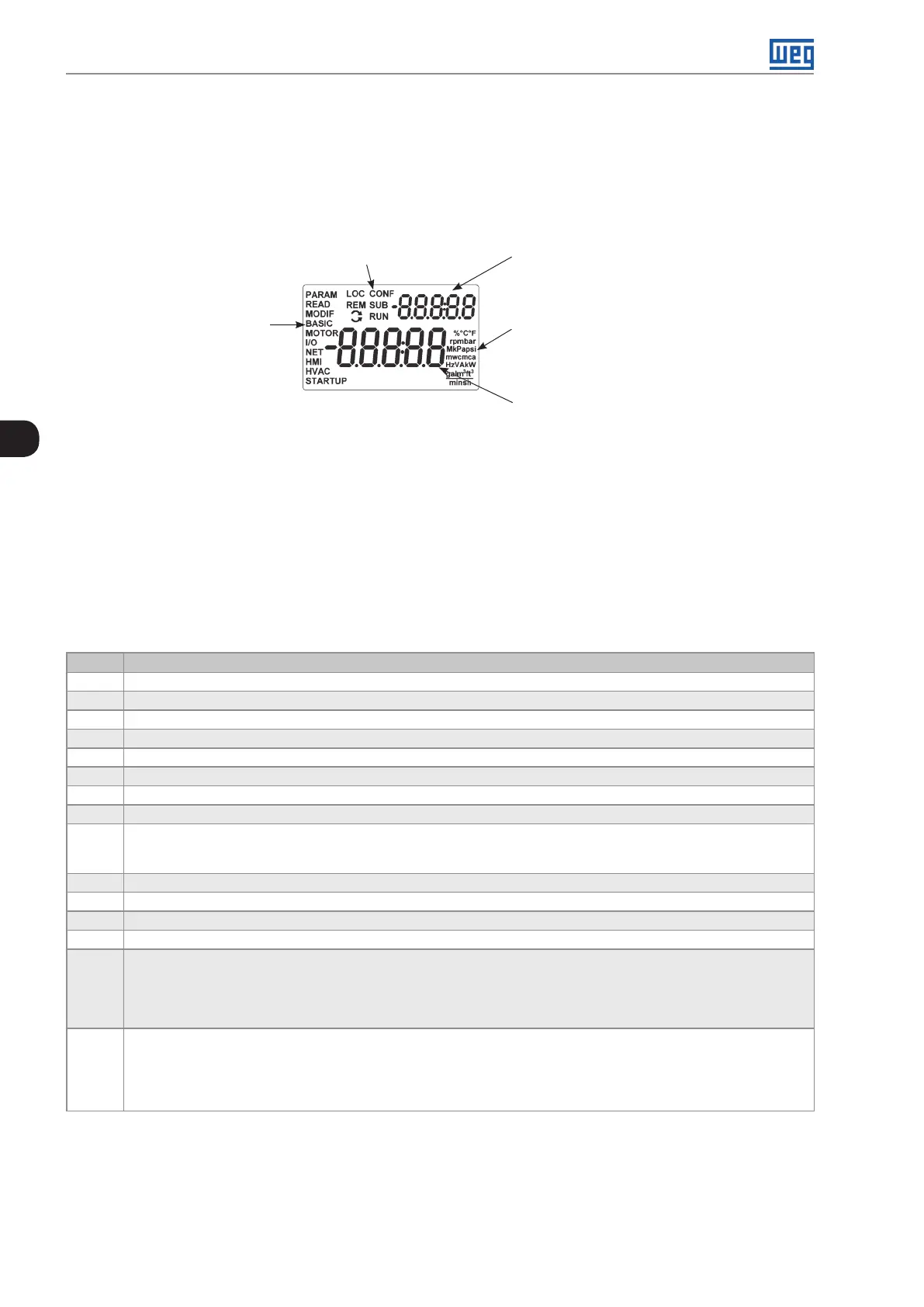

Figure 5.1: Screen on initialization and display fields
5.7 SITUATIONS FOR CONFIG STATUS
The CONFIG status is indicated by the HMI “CONF” status, as well as in parameters P0006 and P0680. Such
status indicates that the CFW501 cannot enable the output PWM pulses because the inverter configuration is
incorrect or incomplete.
The table below shows the situations of CONFIG status, where the user can identify the origin condition through
parameter P0047.
Table 5.4: Situations for CONFIG status
P0047 Origin Situation of CONFIG Status
0 Out of CONFIG status, HMI, P0006 and P0680 must not indicate CONF.
5 Two or more DIx (P0263...P0270) programmed for direction of rotation (4).
6 Two or more DIx (P0263...P0270) programmed for LOC/REM selection (5).
9 Two or more DIx (P0263...P0270) programmed for 2
nd
ramp (8).
11 Two or more DIx (P0263...P0270) programmed for disable Flying-Start (15).
12 Two or more DIx (P0263...P0270) programmed for lock programming (17).
13 Two or more DIx (P0263...P0270) programmed for load user 1 (18).
14 Two or more DIx (P0263...P0270) programmed for load user 2 (19).
19
Run-Stop command (P0224 or P0227) programmed for Dix (1) without DIx (P0263...P0270) programmed for (1 = Run/Stop) and
without DIx (P0263...P0270) programmed for general enable (2) and without DIx (P0263...P0270) programmed for quick stop (3)
and without DIx (P0263...P0270) programmed for advance(4) and without DIx (P0263...P0270) programmed for start (6).
20 Digital input DI2 (P0265) programmed for PTC (29) or analog input AI3 (P0241) programmed for PTC (4).
25 Reference (P0221 or P0222) programmed for AI2 (2) or AI3 (3) and the plug-In module has no AI2 and AI3.
26 P0312 programmed for REMOTE HMI (0 or 6) without HMI connected.
27 Poor configuration of the V/f curve (P0142 to P0147) causes voltage step in the output).
28
Bypass mode configured (P0583) without any digital input configured for “Activate bypass”;
Bypass mode configured with more than one digital input configured for “Activate bypass”;
Bypass mode configured without a digital output configured for “Contactor bypass drive” and a digital output configure to
“Mains bypass contactor”;
Bypass mode configured and either of the two bypass digital outputs with duplicated configuration.
29
“Fire Mode” configured without a digital input configured for “Activate Fire Mode”;
More than one digital input configured for “Activate Fire Mode”;
More than one digital output configured for “Fire Mode active”;
Digital input configured for “Fire Mode” with the “Fire Mode” function disabled;
Digital output configured for “Fire Mode” with the “Fire Mode” function disabled.
