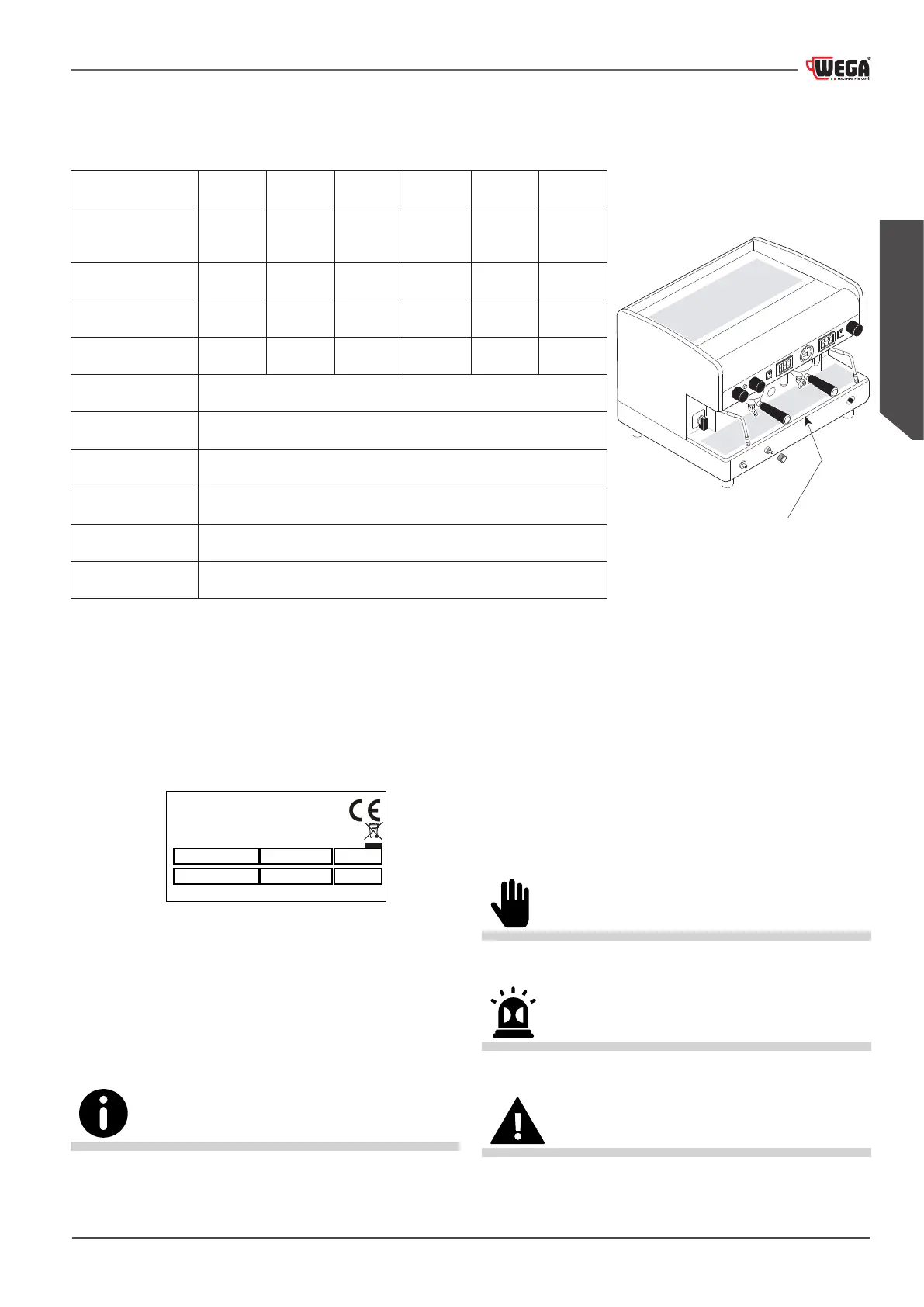

2.7 Data and marking
The machine technical data are listed in the follow-
ing table:
TECHNICAL DATA TABLE JUN 1GR COMPACT 2GR 3GR 4GR
Voltage (V)
120
230-400
240
120
230-400
240
120
230-400
240
120
230-400
240
230-400
240
230-400
240
Frequency (Hz) 50/60 50/60 50/60 50/60 50/60 50/60
Max power (kW) 2.4 kW 2.4/3.1/3.3 3.1 3.1/3.9/4.2 5.6/6.0 6.6/7.1
Boiler (l) 5 6/8 7 10.5/14 17/21 23
Safety valve
calibration (bar)
0,19 MPa (1,9 bar)
Boiler operating
pressure
0,08 - 0,14 MPa (0,8 - 1,4 bar)
Feed water pressure 0,15 - 0,6 MPa max (1,5 - 6 bar max)
Coee dispensing
pressure
0,9 MPa (9 bar)
Operation mode
temperature
5 - 40°C 95° MAX R.U.
Sound pressure level < 70 dB
According to the Directive 2006/42/EC, the machine is
marked with the CE marking, by which the manufacturer
declares, under its own responsibility, that the machine
is safe for people and things.
The CE nameplate is axed to the base of the frame
under the drain pan on which the identication data is
reported. Below is an example of the nameplate:
For any communication with the Manufacturer, al-
ways note the following information:
• S/N - machine serial number;
• Mod. - machine model
• Y - date of manufacture;
The data of the appliance can be seen also on the
label located on the package of the machine.
It is forbidden to remove or damage the nameplate. If it needs
replacing urgently, always exclusively contact the Manufacturer.
The CE nameplate is xed on
the base of the frame under
the drain pan.
3. STORAGE
The machine is stored by the Manufacturer or the
Distributor.
4. INSTALLATION
The installation of the machine must be performed
only by the Manufacturer's Qualied Technicians.
During the installation the Qualied Technicians needs to renewal
operations of the water contained in the hydraulic circuits.
The base of the machine support must be perfectly level and
without irregularities.
The electric system must be equipped with a suitable dierential
circuit breaker (30 mA).
Via C. Bardini
,
1 SUSEGANA
(
TV
)
- ITALY
Tel. +39.0438.1799700 Fax +39.0438.1884890
MADE IN ITALY
W
S/N:
Mod.
Hz
Y
V
WEGA MACCHINE PER CAFFÈ S.r.l.
MARCHIO COMMERCIALE

Wega Atlas 2010 Specifications

General

Brand	Wega
Model	Atlas 2010
Category	Coffee Maker
Language	English
