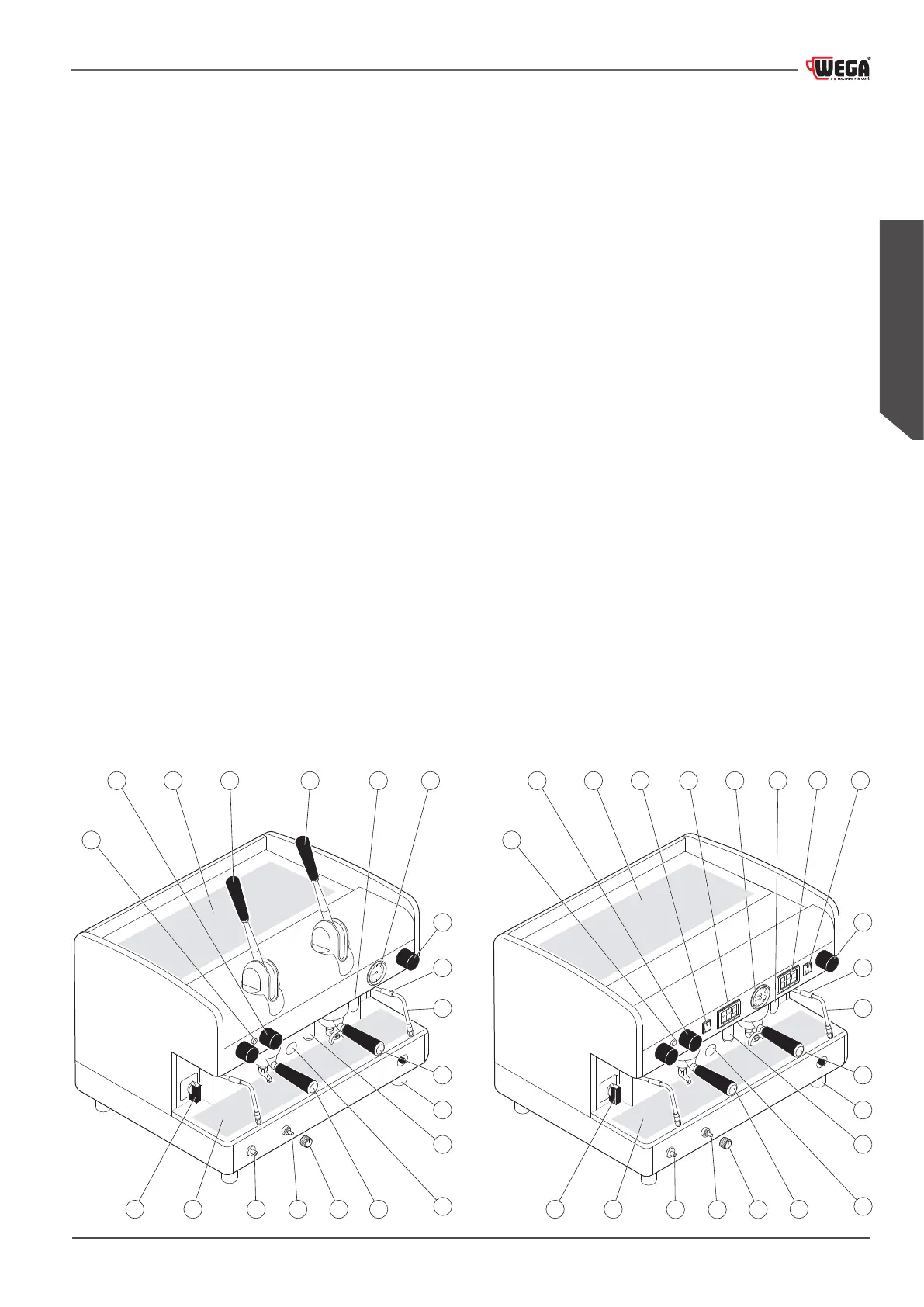

2.5 Illustration of the machine
1. Cup heater surface.
2. Lever units.
3. Boiler water optical level (**).
4. Pressure gauge.
5. Steam knob.
6. Anti-scalding protection.
7. Steam nozzle.
8. 2-Cup lter holder.
9. Adjustable foot.
10. Hot water nozzle.
11. Gas burner window (*).
12. 1-Cup lter holder.
13. Gas safety (*).
14. Gas regulation (*).
15. Gas ignition button (*).
16. Cup-rest grid.
17. ON switch.
18. Machine powered warning light.
19. Hot water knob.
20. Manual dispensing push-button panel.
21. Push-button panel.
(*) Optional device.
(**) In some versions the optical level is replaced by a green warning light.
EMA - EPU - EVD versionALE version
