14.1.2 Communication protocol

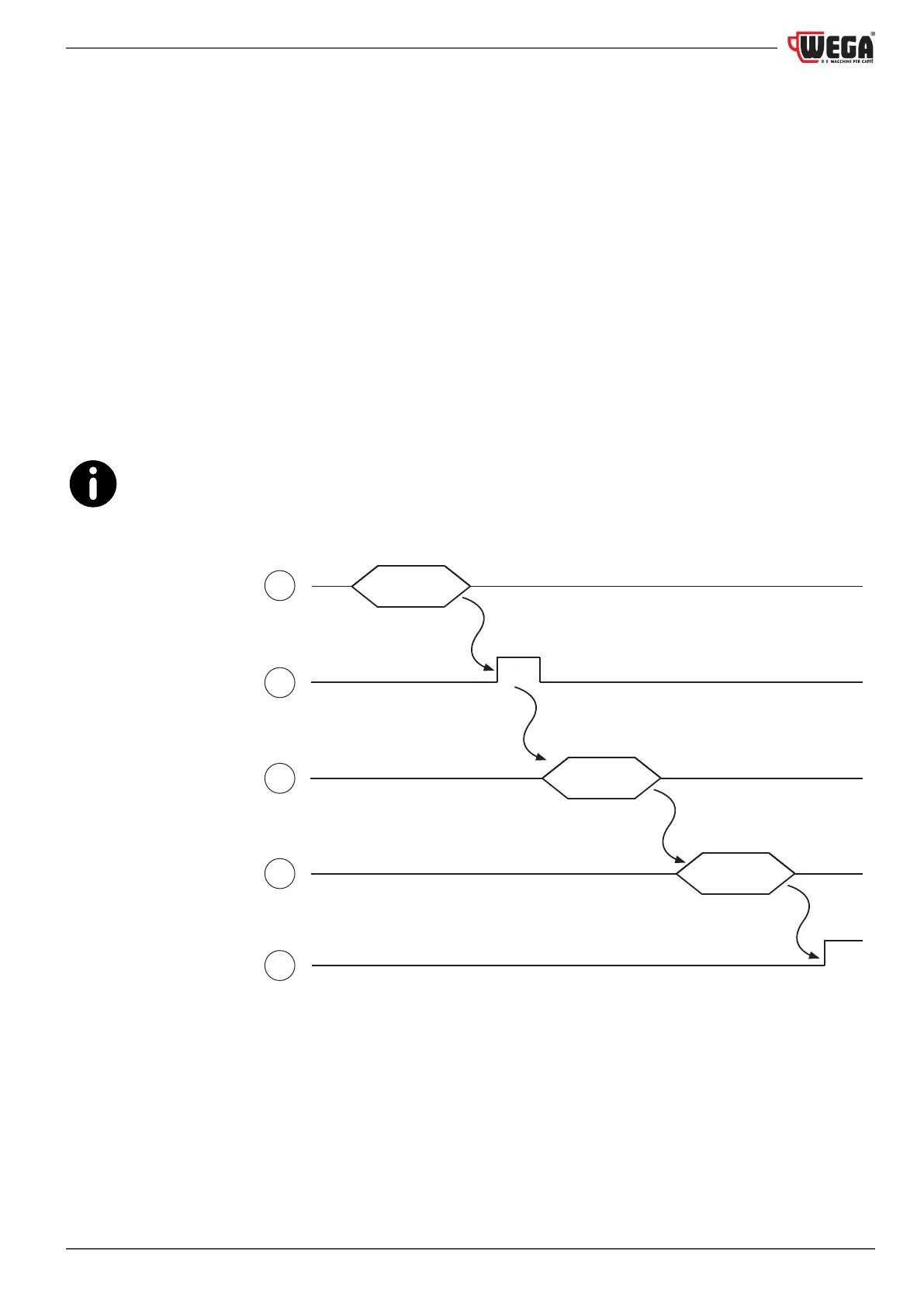

Description of the operating principle with reference to the
diagram shown below:
• Order the beverage at the till.
• The till sends the reserved selection-related code to the
machine.
• Select the ordered dose on the coffee machine.
• The code that corresponds to the selection is sent to the
till (see the code table).
• The till replies with ACK=06H, thus enabling the beverage
to be dispensed.
• The coffee machine dispenses the beverage.
If the cash register does not identify the code, there is no en-
abling and the delivery is not made, the cash register sends
the NACK=15H code.
Baud rate: 1200, 8 bit + 1 bit Stop. Parity N (none).
ORDER BEVERAGE
BUTTON PRESSED
BUTTON CODE
ACKNOWLEDGED
DISPENSING
1
2
3
4
5
