Wega LB 4200 CAFFE’-CAFFE’ - General Description; External Components; Keypad

32
instructions for the user
5.2 Keypad
5 General description

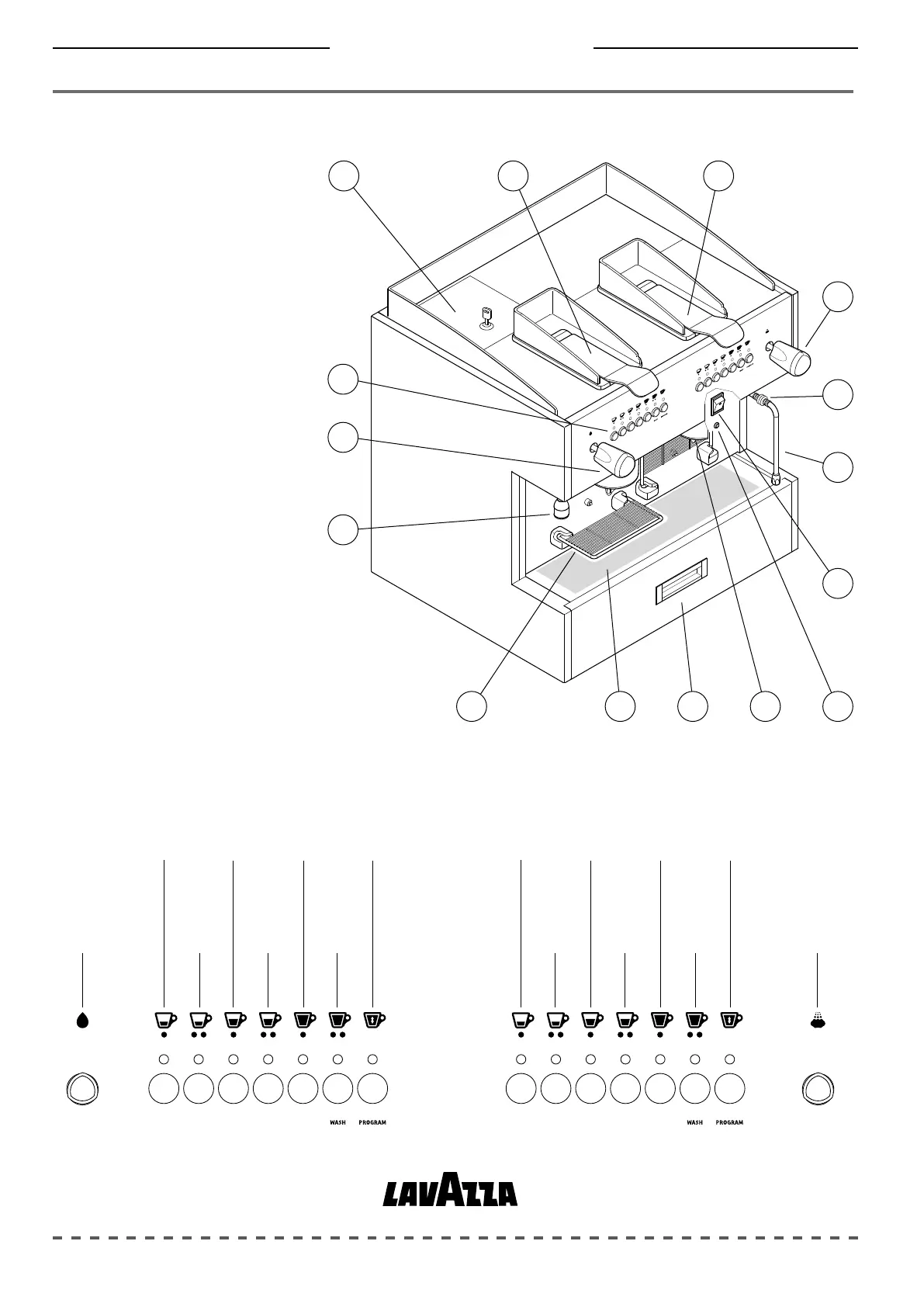

5.1 External components
1. Internal water tank door
2. Coee unit lever
3. Steam knob
4. Water knob
5. Push button panel
6. Anti-burn rubber
7. Hot water nozzle
8. steam nozzle
9. Main switch
10. Boiler level light sensor
11. Dispensing nozzle
12. Used pod drawer
13. Cup rest grille
14. Cup raising grille
1 2 2
4
7
5
3
8
6
9
1012 1114 13
GR2 GR1
LATO SERIGRAFIA
NERO (Serigrae)
INOX (Fondo)
SERIGRAFIE FRONTONE LAVAZZA LB4200 (CAFFÈ+CAFFÈ)
Cod. Disegno: C-015908
Cod. Anagr: 71752386
Dimensioni: 492x145mm
Hot
water
1 Long coee
Continuous
coee
1
Medium
coee
1
Medium
coee
1 Long
coee
Continuous
coee1 Espresso 1 Espresso
2
Espressos
2
Espressos
2 Medium
coees
2
Medium
coees
2 Long
coees
2 Long
coees Steam
