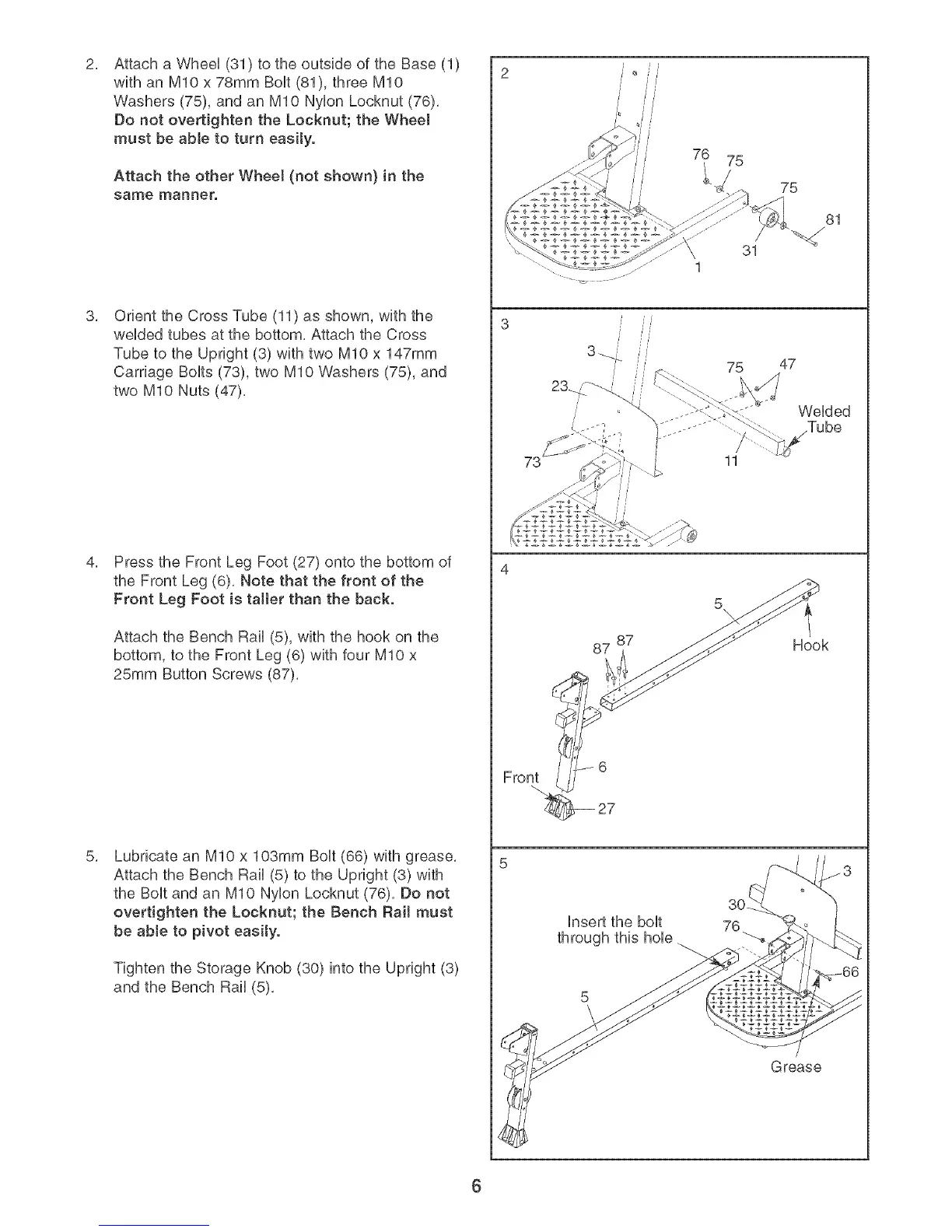

Attacha Wheel(31)totheoutsideoftheBase(1)
withanMIOx78mmBolt(81),threeMIO
Washers(75),andanMIONylonLocknut(76),
Donotovertightenthe Locknut;the Wheel
mustbeableto turn easity.
Attach the other Wheel (not shown} in the
same manner.
Orient the Cross Tube (11) as shown, with the
welded tubes at the bottom, Attach the Cross
Tube to the Upright (3) with two MIO x 147mm
Carriage Bolts (73), two MIO Washers (75), and
two MIO Nuts (47),
Press the Front Leg Foot (27) onto the bottom of
the Front Leg (6), Note that the front of the
Front Leg Foot is taller than the back.
Attach the Bench Rail (5), with the hook on the
bottom, to the Front Leg (6) with four MIO x
25mm Button Screws (87),
Lubricate an MIO x 103mm Bolt (66) with grease,
Attach the Bench Rail (5) to the Upright (3) with
the Bolt and an MIO Nylon Locknut (76), Do not
overtighten the Locknut; the Bench Bait must
be able to pivot easily.
Tighten the Storage Knob (30) into the Upright (3)
and the Bench Rail (5),
75
31
81
/
75
47
Welded
11
87
87
Hook
Insert the bolt 76
through this hole
Grease
6
