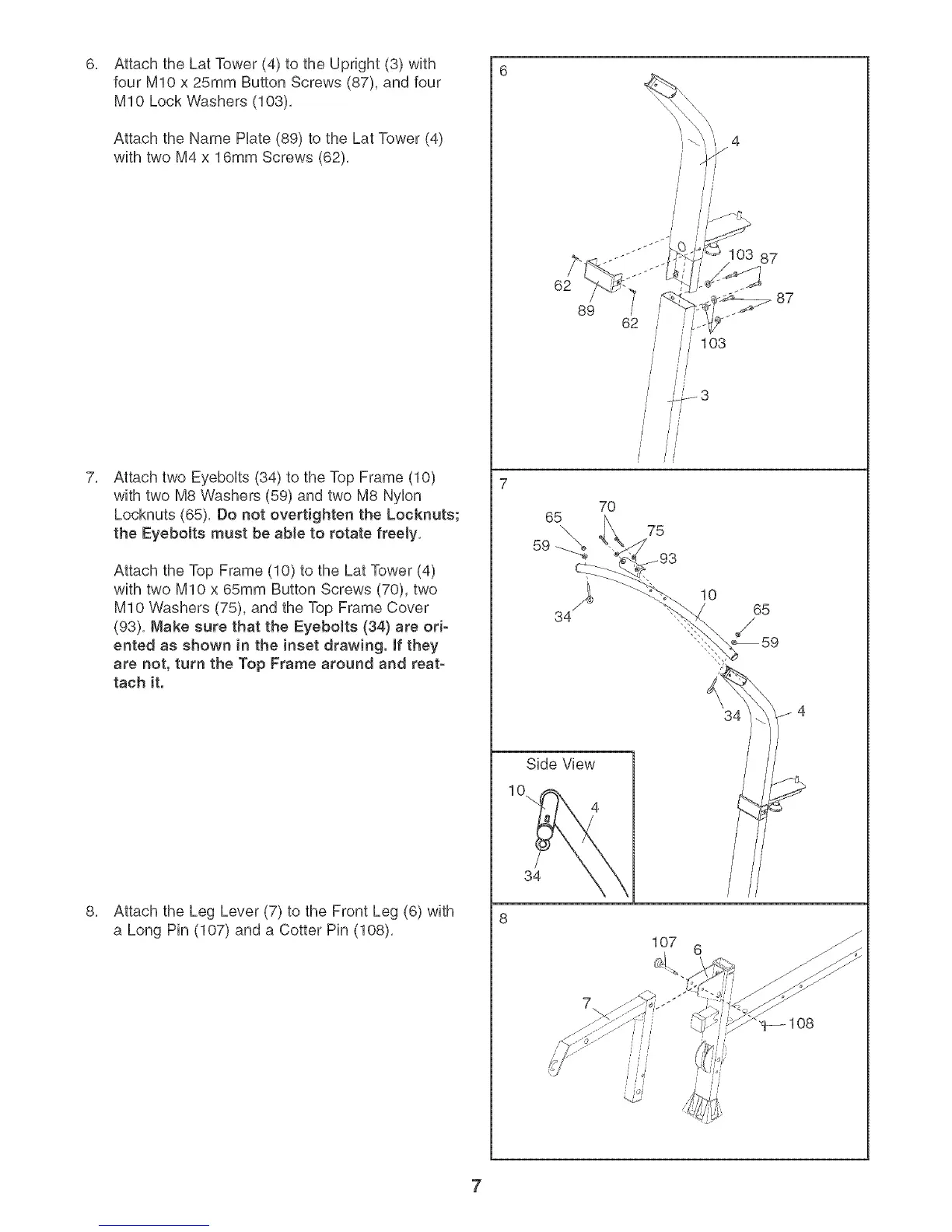

6. 6
Attach the Lat Tower (4) to the Upright (3) with
four M10 x 25mm Button Screws (87), and four
M10 Lock VVashers (103).
Attach the Name Hate (89) to the Lat Tower (4)
with two M4 x 16mm Screws (62).
Attach two Eyebolts (34) to the Top Frame (10)
with two M8 Washers (59) and two M8 Nylon
Locknuts (65). Do not overtighten the Locknuts;
the Eyebolts must be able to rotate freely.
Attach the Top Frame (10) to the Lat Tower (4)
with two M10 x 65mm Button Screws (70), two
M10 Washers (75), and the Top Frame Cover
(93), Make sure that the Eyebolts (34) are ori-
ented as shown in the inset drawing. If they
are not, turn the Top Frame around and reat-
tach it.
Attach the Leg Lever (7) to the Front Leg (6) with
a Long Pin (107) and a Cotter Pin (108),
89
62
103 87
_3
65
"\..
59
34
7O
75
10
65
/
Side View
10.
34
34
107
6
7
