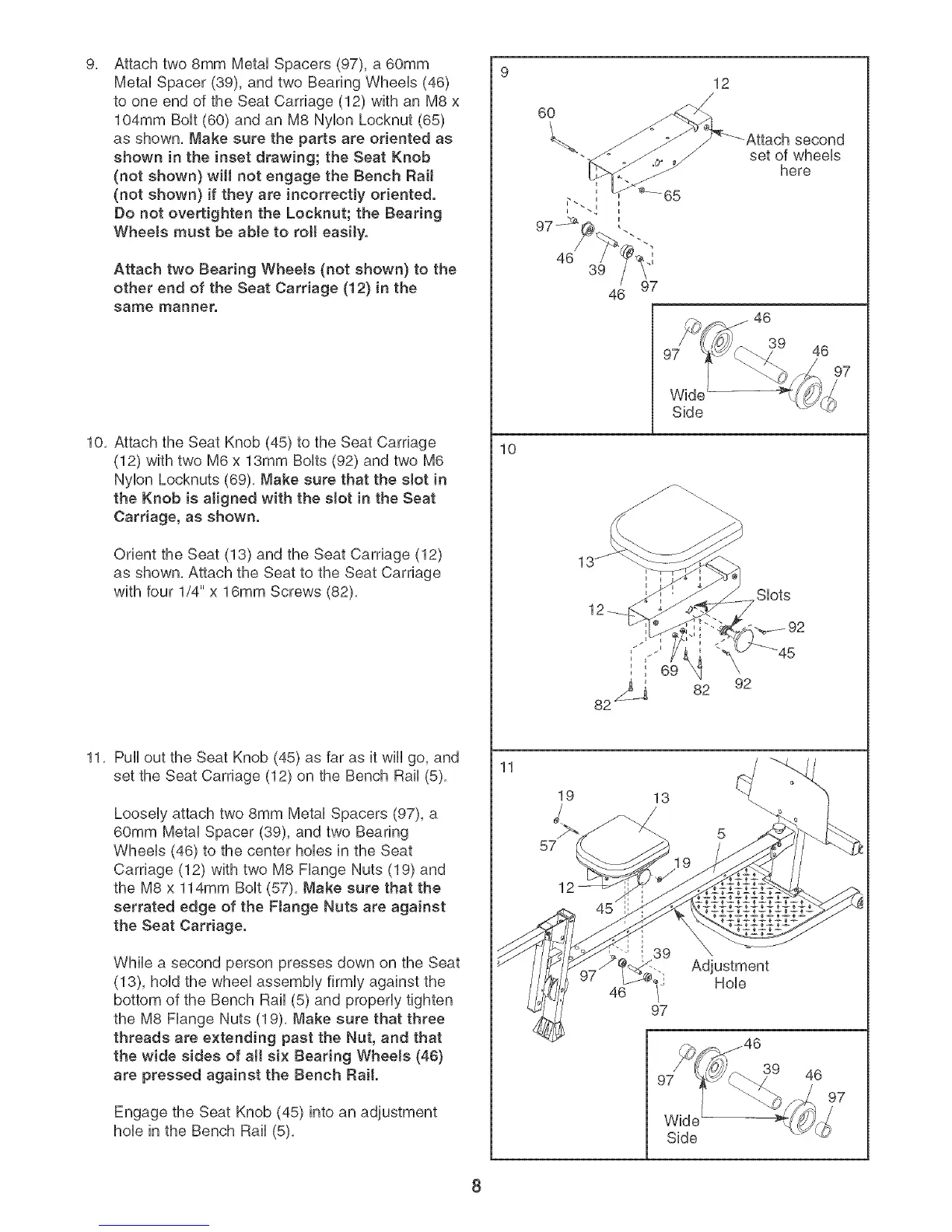

9, 9
Attach two 8mm Metal Spacers (97), a 60mm
Metal Spacer (39), and two Bearing Wheeb (46)
to one end of the Seat Carriage (12) with an M8 x
104mm BoUt(60) and an M8 Nybn Locknut (65)
as shown, Make sure the parts are oriented as
shown in the inset drawing; the Seat Knob
(not shown} will not engage the Bench Rail
(not shown} if they are incorrectly oriented.
Do not overtighten the Locknut; the Bearing
Wheels must be able to roll easily.
Attach two Bearing Wheels (not shown} to the
other end of the Seat Carriage (!2) in the
same manner.
10, Attach the Seat Knob (45) to the Seat Carriage
(12) with two M6 x 13mm BoUts(92) and two M6
Nybn Locknuts (69), Make sure that the slot in
the Knob is aligned with the slot in the Seat
Carriage, as shown.
Orient the Seat (13) and the Seat Carriage (12)
as shown, Attach the Seat to the Seat Carriage
with four 1/4" x 16mm Screws (82),
11, Pull out the Seat Knob (45) as far as it will go, and
set the Seat Carriage (12) on the Bench Rail (5),
Loosely attach two 8mm Metal Spacers (97), a
60mm Metal Spacer (39), and two Bearing
Wheels (46) to the center hobs in the Seat
Carriage (12) with two M8 Flange Nuts (19) and
the M8 x 114mm Bolt (57), Make sure that the
serrated edge of the Flange Nuts are against
the Seat Carriage.
While a second person presses down on the Seat
(13), hold the wheel assembly firmly against the
bottom of the Bench Rail (5) and properly tighten
the M8 Flange Nuts (19), Make sure that three
threads are extending past the Nut, and that
the wide sides of aH six Bearing Wheels (46)
are pressed against the Bench Rail.
Engage the Seat Knob (45) into an adjustment
hob in the Bench Rail (5),
10
11
6O
46
39
46
12
second
set of wheels
here
97
Side
82 92
Slots
19
57
13
/
5
12
\
Adjustment
Hob
46
97
39 46
)7
Side
8
