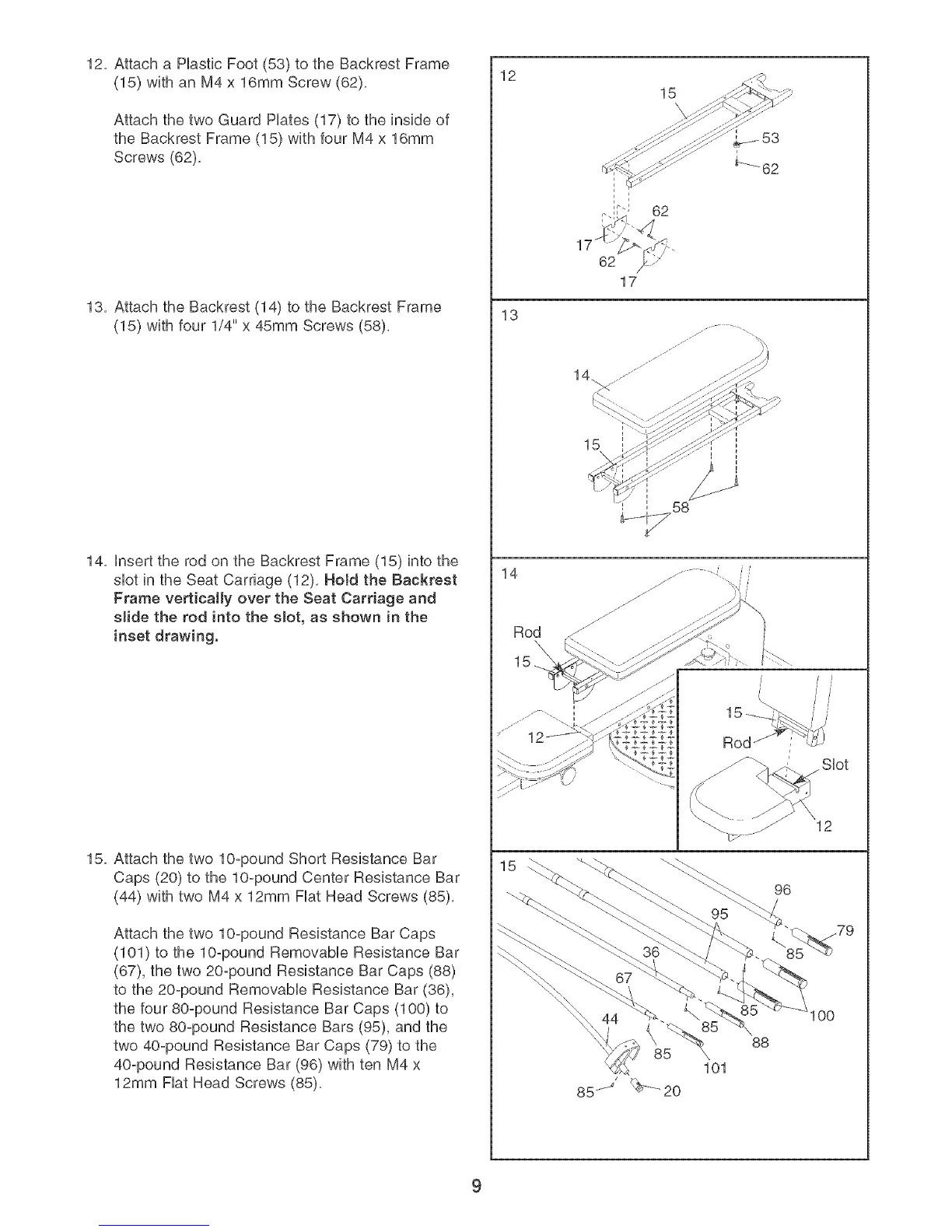

12, Attach a Hastic Foot (53) to the Backrest Frame
(15) with an M4 x 16mm Screw (62),
Attach the two Guard Hates (17) to the inside of
the Backrest Frame (15) with four M4 x 16mm
Screws (62),
13, Attach the Backrest (14) to the Backrest Frame
(15) with four 1/4" x 45mm Screws (58),
14, insert the rod on the Backrest Frame (15) into the
slot in the Seat Carriage (12), HoJd the Backrest
Frame vertically over the Seat Carriage and
shale the rod into the sJot, as shown in the
inset drawing.
15, Attach the two lO°pound Short Resistance Bar
Caps (20) to the lO°pound Center Resistance Bar
(44) with two M4 x 12mm Fiat Head Screws (85),
Attach the two lO°pound Resistance Bar Caps
(101) to the lO°pound Removable Resistance Bar
(67), the two 20°pound Resistance Bar Caps (88)
to the 20°pound Removable Resistance Bar (36),
the four 80°pound Resistance Bar Caps (100) to
the two 80°pound Resistance Bars (95), and the
two 40°pound Resistance Bar Caps (79) to the
40°pound Resistance Bar (96) with ten M4 x
12mm Fiat Head Screws (85),
12
13
14
Rod
15
62
17
15
58
\
12
96
88
lO0
9
To Next Page
