Weider CROSS BAR MAX User Manual

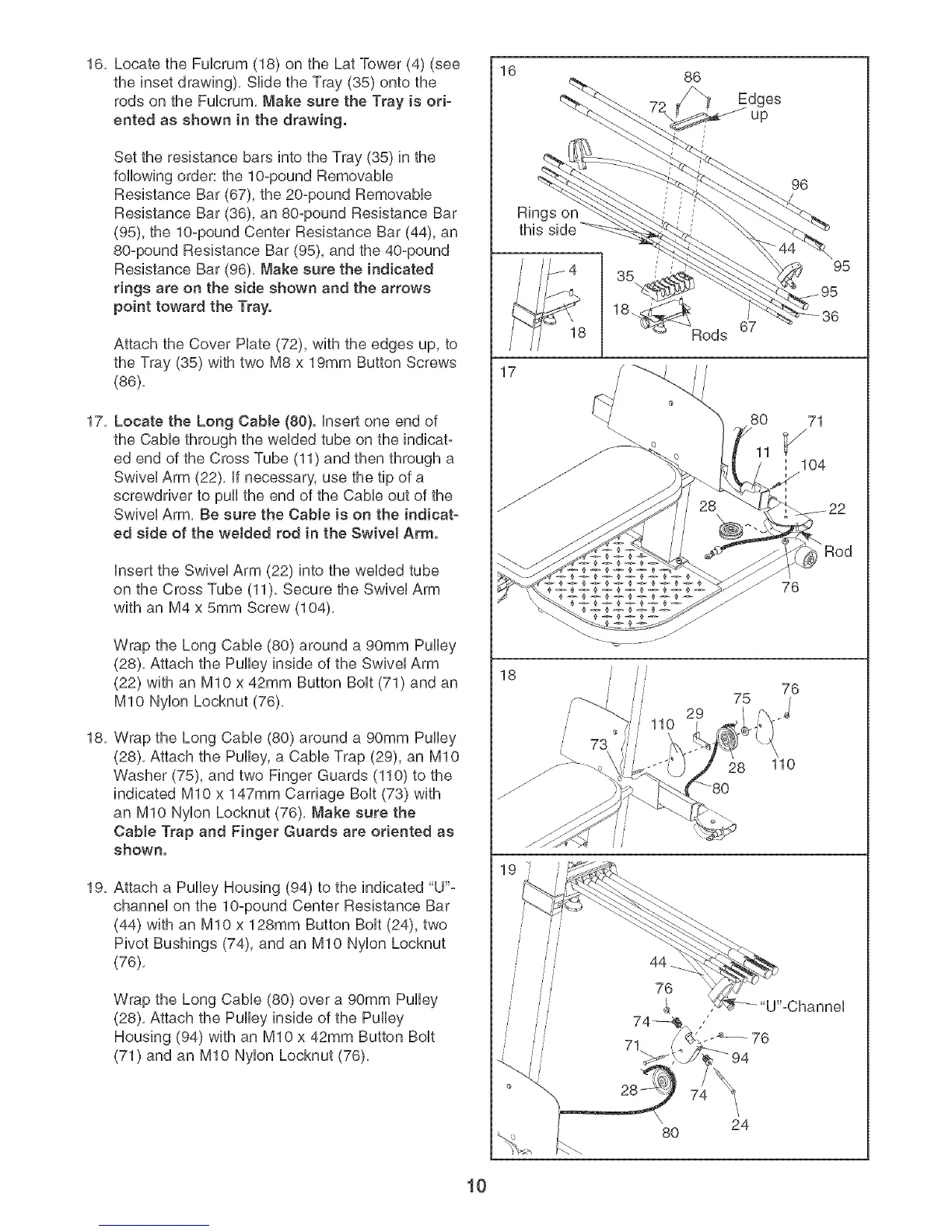

16, Locate the Fubrum (18) on the Lat Tower (4) (see
the inset drawing), Slide the Tray (35) onto the
rods on the Fubrum, Make sure the Tray is ori-
ented as shown in the drawing.
Set the resistance bars into the Tray (35) in the
following order: the lO-pound Removable
Resistance Bar (67), the 20-pound Removable
Resistance Bar (36), an 80-pound Resistance Bar
(95), the lO-pound Center Resistance Bar (44), an
80-pound Resistance Bar (95), and the 40-pound
Resistance Bar (96), Make sure the indicated
rings are on the side shown and the arrows
point toward the Tray.
Attach the Cover Hate (72), with the edges up, to
the Tray (35) with two M8 x 19mm Button Screws
(86),
17, Locate the Long Cable (80). insert one end of
the Cable through the welded tube on the indicat-
ed end of the Cross Tube (11) and then through a
Swivel Arm (22), if necessary, use the tip of a
screwdriver to pull the end of the Cable out of the
Swivel Arm, Be sure the Cable is on the indicat-
ed side of the welded rod in the Swivel Arm.
insert the Swivel Arm (22) into the welded tube
on the Cross Tube (11), Secure the Swivel Arm
with an M4 x 5ram Screw (104),
Wrap the Long Cable (80) around a 90mm Pulley
(28), Attach the Pulley inside of the Swivel Arm
(22) with an MIO x 42ram Button Bolt (71) and an
MIO Nylon Locknut (76),
18, Wrap the Long Cable (80) around a 90mm Pulley
(28), Attach the Pulley, a Cable Trap (29), an M10
Washer (75), and two Finger Guards (110) to the
indicated M10 x 147mm Carriage Bolt (73) with
an M10 Nylon Locknut (76), Make sure the
Cable Trap and Finger Guards are oriented as
shown.
19, Attach a Pulley Housing (94) to the indicated "U"-
channel on the 10-pound Center Resistance Bar
(44) with an M10 x 128mm Button Bolt (24), two
Pivot Bushings (74), and an M10 Nylon Locknut
(76),
Wrap the Long Cable (80) over a 90mm Pulley
(28), Attach the Pulley inside of the Pulley
Rousing (94) with an MIO x 42ram Button Bolt
(71) and an M10 Nylon Locknut (76),
16
17
18
86
:dges
up
/
Rings on
96
Rods
67
8O
1
71
', 104
76
110
75
29
76
28 110
44
/
76
l
71
24
8O
95
Rod
10

Weider CROSS BAR MAX Specifications

General

Brand	Weider
Model	CROSS BAR MAX
Category	Fitness Equipment
Language	English
