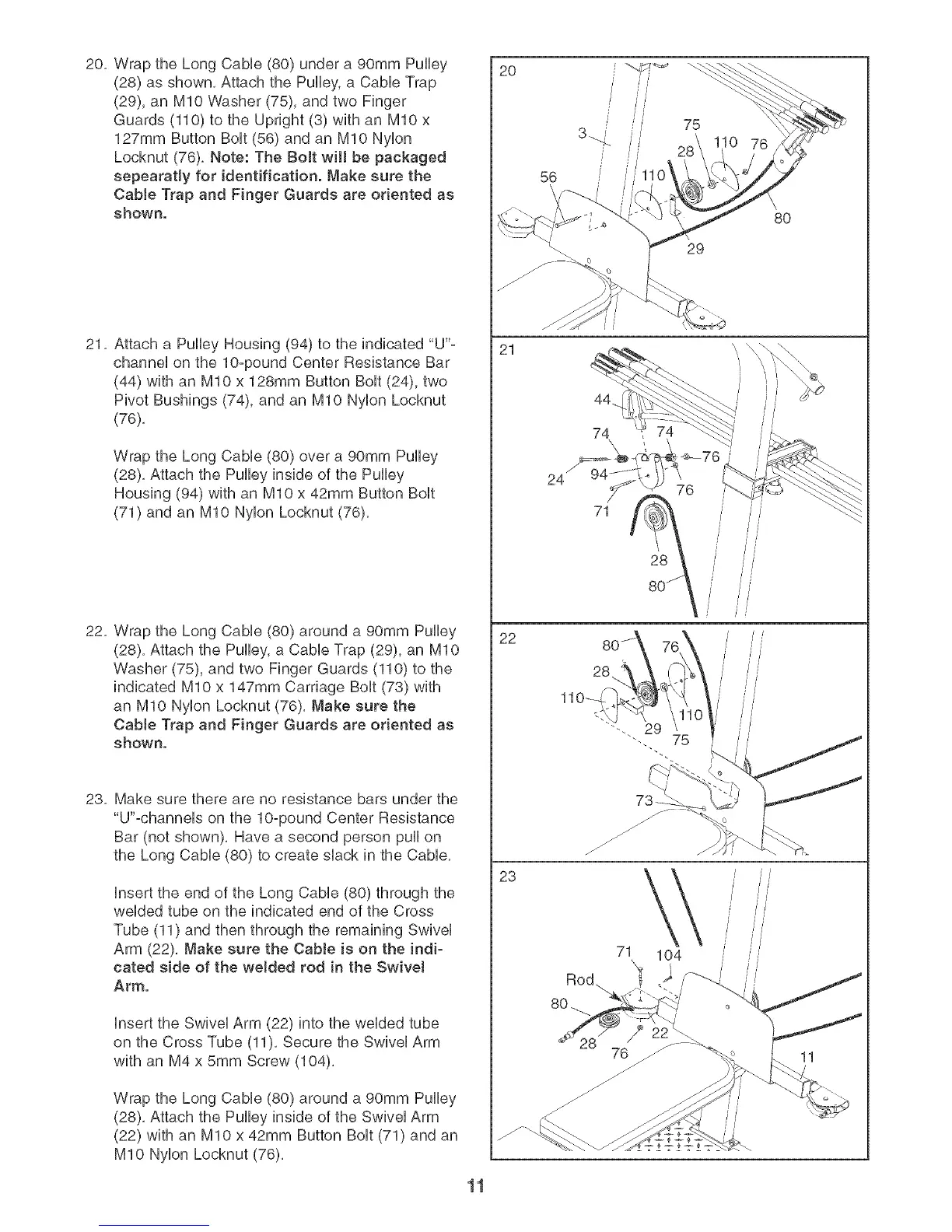

20, Wrap the Long CaMe (80) under a 90mm Pulley
(28) as shown, Attach the Pulley, a CaMe Trap
(29), an MIO Washer (75), and two Finger
Guards (110) to the Upright (3) with an MIO x
127mm Button BoUt(56) and an MIO NyUon
Locknut (76), Note: The Bolt will be packaged
sepearatly for identification. Make sure the
Cabte Trap and Finger Guards are oriented as
shown.
21, Attach a Pulley Housing (94) to the indicated "U"-
channeU on the lO-pound Center Resistance Bar
(44) with an MIO x 128mm Button BoUt(24), two
Pivot Bushings (74), and an MIO NyUonLocknut
(76),
Wrap the Long CaMe (80) over a 90mm Pulley
(28), Attach the Pulley inside of the Pulley
Housing (94) with an MIO x 42mm Button BoUt
(71) and an MIO NyUonLocknut (76),
22, Wrap the Long CaMe (80) around a 90mm Pulley
(28), Attach the Pulley, a CabUeTrap (29), an MIO
Washer (75), and two Finger Guards (110) to the
indicated MIO x 147mm Carriage BoUt(73) with
an MIO NyUon Locknut (76), Make sure the
Cable Trap and Finger Guards are oriented as
shown.
23, Make sure there are no resistance bars under the
"U"-channels on the lO-pound Center Resistance
Bar (not shown), Have a second person pull on
the Long Cable (80) to create slack in the Cable,
Insert the end of the Long Cable (80) through the
welded tube on the indicated end of the Cross
Tube (11) and then through the remaining Swivel
Arm (22), Make sure the CabJe is on the indi-
cated side of the welded rod in the Swivel
Arm.
Insert the Swivel Arm (22) into the welded tube
on the Cross Tube (11), Secure the Swivel Arm
with an M4 x 5mm Screw (104),
Wrap the Long Cable (80) around a 90mm Pulley
(28), Attach the Pulley inside of the Swivel Arm
(22) with an MIO x 42mm Button Bolt (71) and an
MIO Nylon Locknut (76),
2O
21
22
23
11
56
24
Rod
/J
/
/
74
\
71
28
71
29
80
