Weider Easy Compact 90 - Cable Diagram; High Cable Routing; Press Cable Routing; Low Cable Routing

14

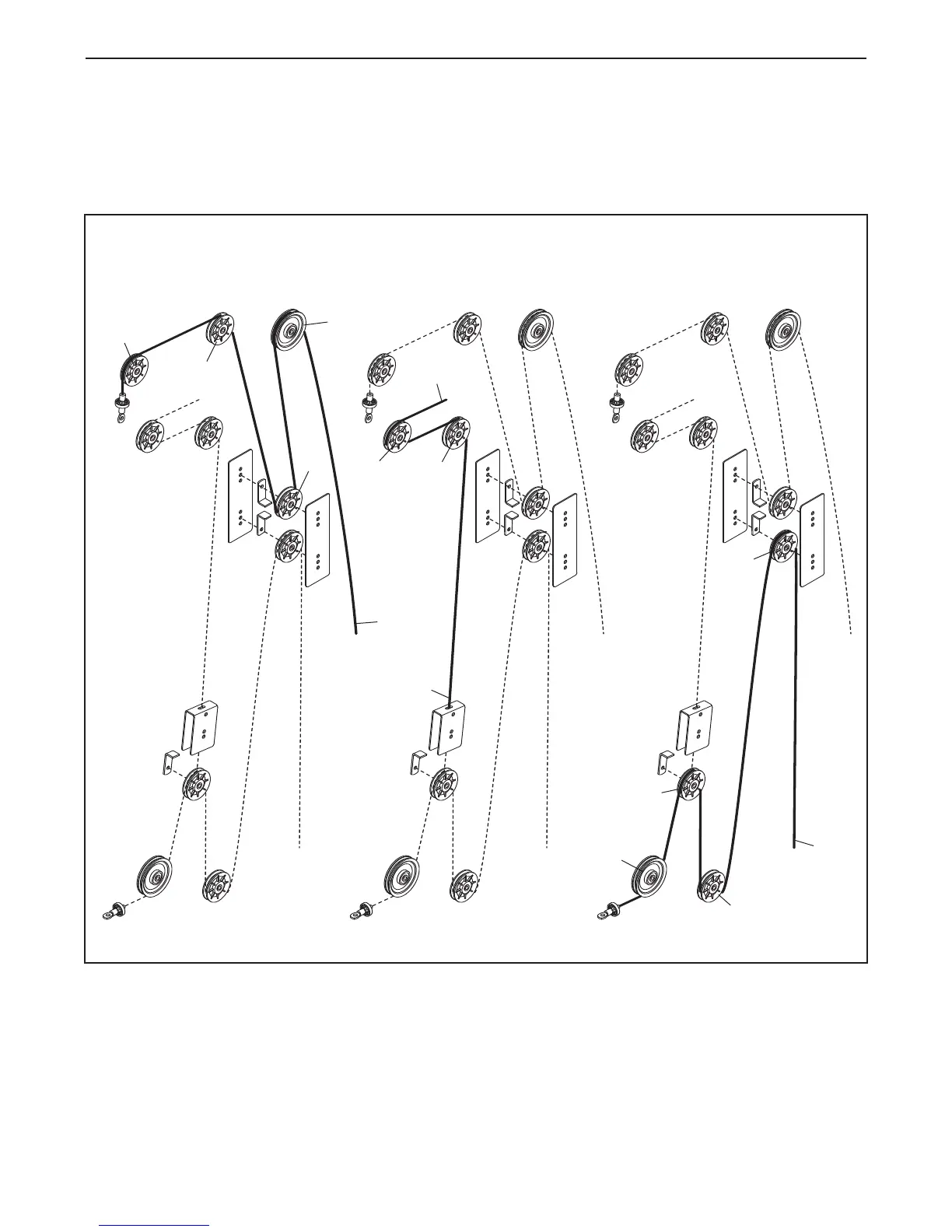

The diagram below shows the proper routing of the cables. The numbers in each drawing show the proper route
for that cable. Use the diagram to make sure that the cables and the cable traps are assembled correctly. If the
c
ables are not assembled correctly, the weight system will not function properly and damage may occur.
M
ake
sure that the cable traps do not touch or bind the cables.
1
1
1
2
2
3
5
4
2
4
4
5
3
3
High Cable (30)
Length: 84 in. (214 cm)
Press Cable (29)
Length: 64 in. (163 cm)
Low Cable (31)
Length: 154 in. (391 cm)
CABLE DIAGRAM
