ASSEMBLED
DIMENSIONS:
Height: 76 in. (193 cm)
Width: 36 in. (92 cm)
Depth: 54 in. (138 cm)
Arm
High Pulley Station
Seat
Right Side
Left Side
Note: The terms “right side” and “left side” are determined relative to a person sitting on the
seat; they do not correspond to right and left on the drawings in the manual.
Backrest
Shroud
Leg Lever
Foot Plate
Low Pulley Station
BEFORE YOU BEGIN
T
hank you for selecting the versatile WEIDER
®
E
ASY
COMPACT 90 weight system. The weight system
offers a selection of weight stations designed to devel-
op every major muscle group of the body. Whether
y
our goal is to tone your body, build dramatic muscle
size and strength, or improve your cardiovascular sys-
tem, the weight system will help you to achieve the
specific results you want.
For your benefit, read this manual carefully before
using the weight system.
If you have questions after
r
eading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
d
ecal are shown on the front cover of this manual.

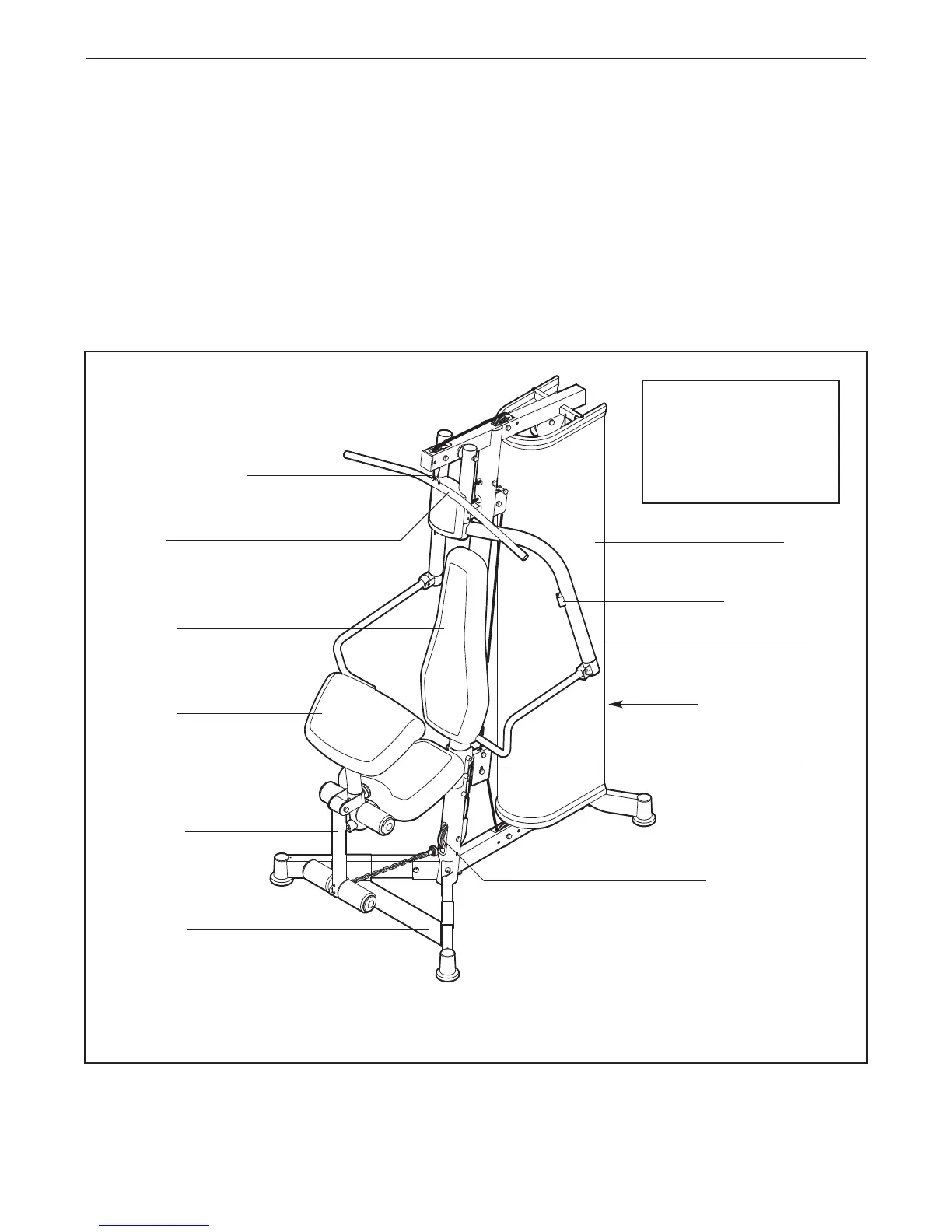

Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.
Curl Pad
Lat Bar
Storage Magnet
Weights/Weight Pin
