M
ake sure all parts are properly tightened each time the weight system is used. Replace any worn parts imme-
diately. The weight system can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use
solvents.
T
IGHTENING THE CABLES
Woven cable, the type of cable used on the weight system, can stretch slightly when it is first used. If there is
slack in the cables before resistance is felt, the cables should be tightened.

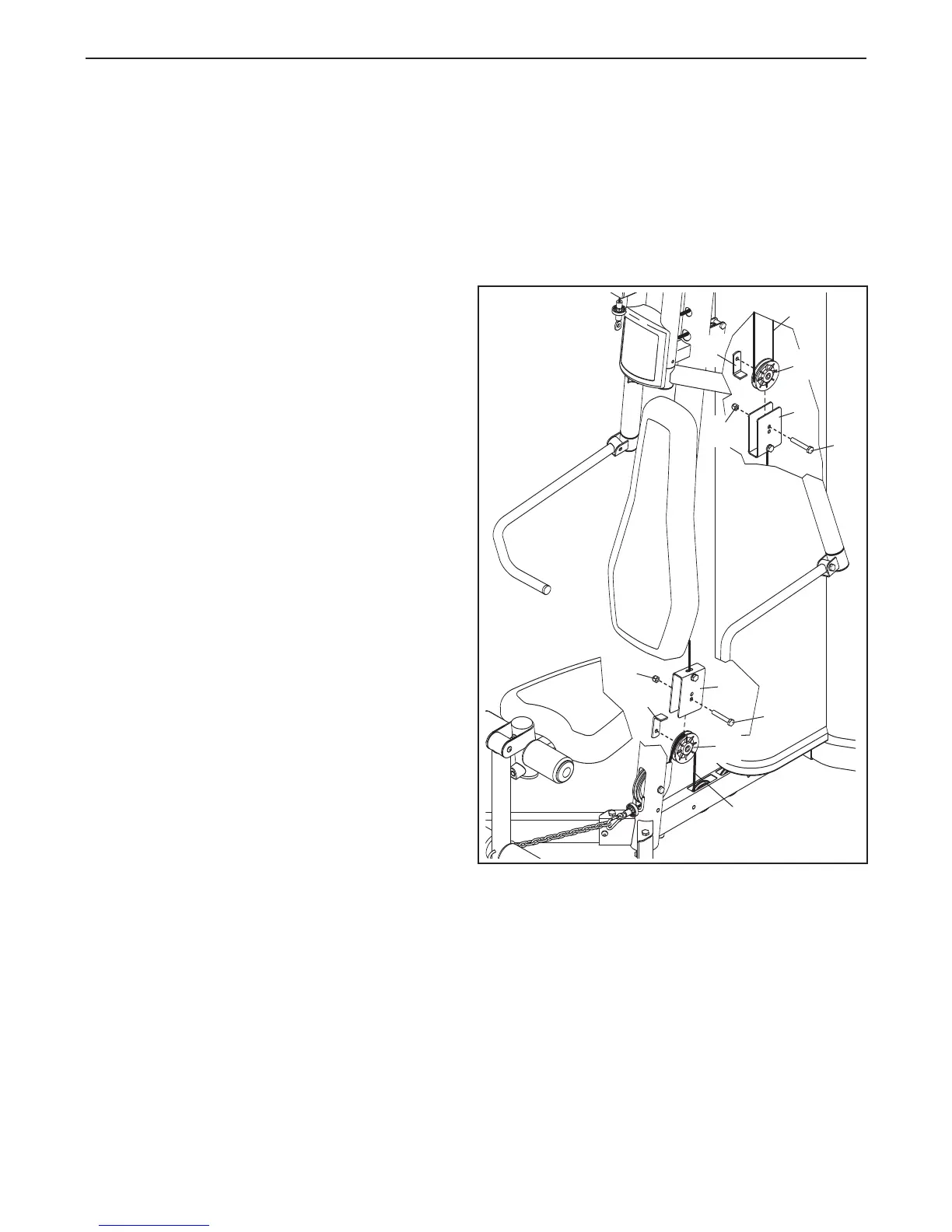

To tighten the cables, first insert the weight pin (not
shown) into the center of the weight stack (not
shown). Next, locate the upper or lower U-bracket
(18). Remove the M10 Nylon Locknut (57) and the
M10 x 50mm Bolt (64) from the U-bracket, the
90mm Pulley (27), and the Cable Trap (51).
Reattach the Pulley and the Cable Trap to the U-
bracket using the hole closer to the center of the U-
bracket.
Make sure that the Cable Trap is in the
proper position and that the High Cable (30) or
the Low Cable (31) is between the Cable Trap
and the Pulley.
To further tighten the cables, move the 90mm
Pulley (27) in the other U-bracket (18).
18
57
64
Do not overtighten the cables. If the cables are overtightened, the top weight will be lifted off the weight
stack. If a cable tends to slip off the pulleys often, it may have become twisted. Remove the cable and
reinstall it. If the cables need to be replaced, see ORDERING REPLACEMENT
P
ARTS on the back cover of
this manual.
MAINTENANCE
57
27
30
27
31
51
51
18
64
To Next Page
