ASSEMBLY
1. With the help of another person, stand the
weight system in the vertical position. Have the
other person hold the weight system
securely until assembly step 1 is completed.

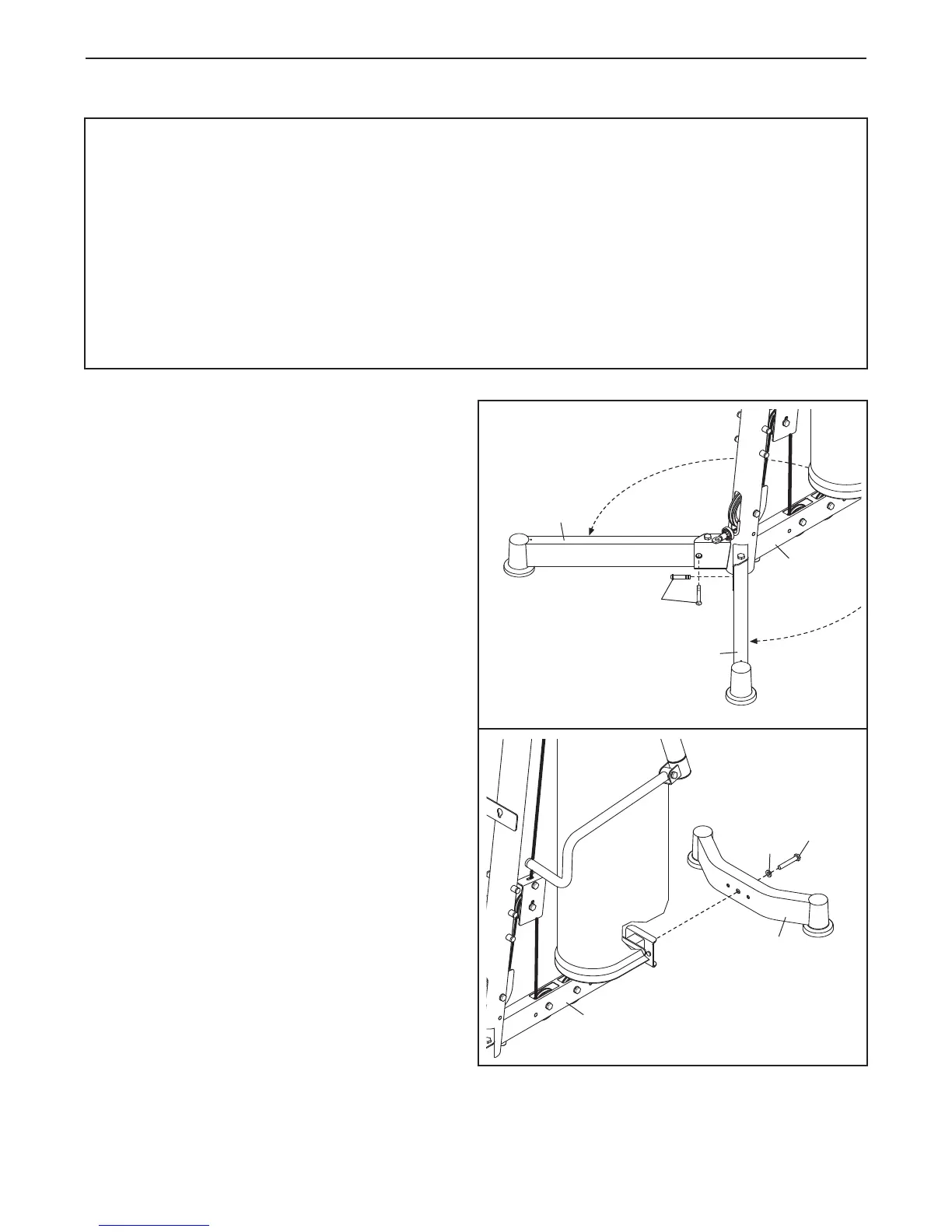

See the upper drawing.
Pivot the two Front
Stabilizers (3) to the positions shown. Secure
each Front Stabilizer to the Frame (1) with an
M12 x 30mm Screw (72).
See the lower drawing. Orient the Rear
Stabilizer (2) as shown. Attach the Rear
Stabilizer to the Frame (1) with an M12 x 60mm
Screw (77) and an M12 Washer (83).
For your convenience, the weight system is
shipped almost fully assembled. Before complet-
ing assembly, carefully read the following informa-
t
ion and instructions.
• To hire an authorized service technician to
assemble the weight system in your home, call
1-800-445-2480.
• Assembly requires the assistance of a second
person.
• Because of its size and weight, the weight sys-
tem should be assembled in the location where it
will be used. Make sure that there is enough
c
learance to walk around the weight system.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• Assembly requires the included hex keys and
grease and your own Phillips screwdriver.
1
3
3
1
72
77
1
83
2
To Next Page
