Weider Precision 200 - Cable Diagram; Cable Routing Illustrations

14

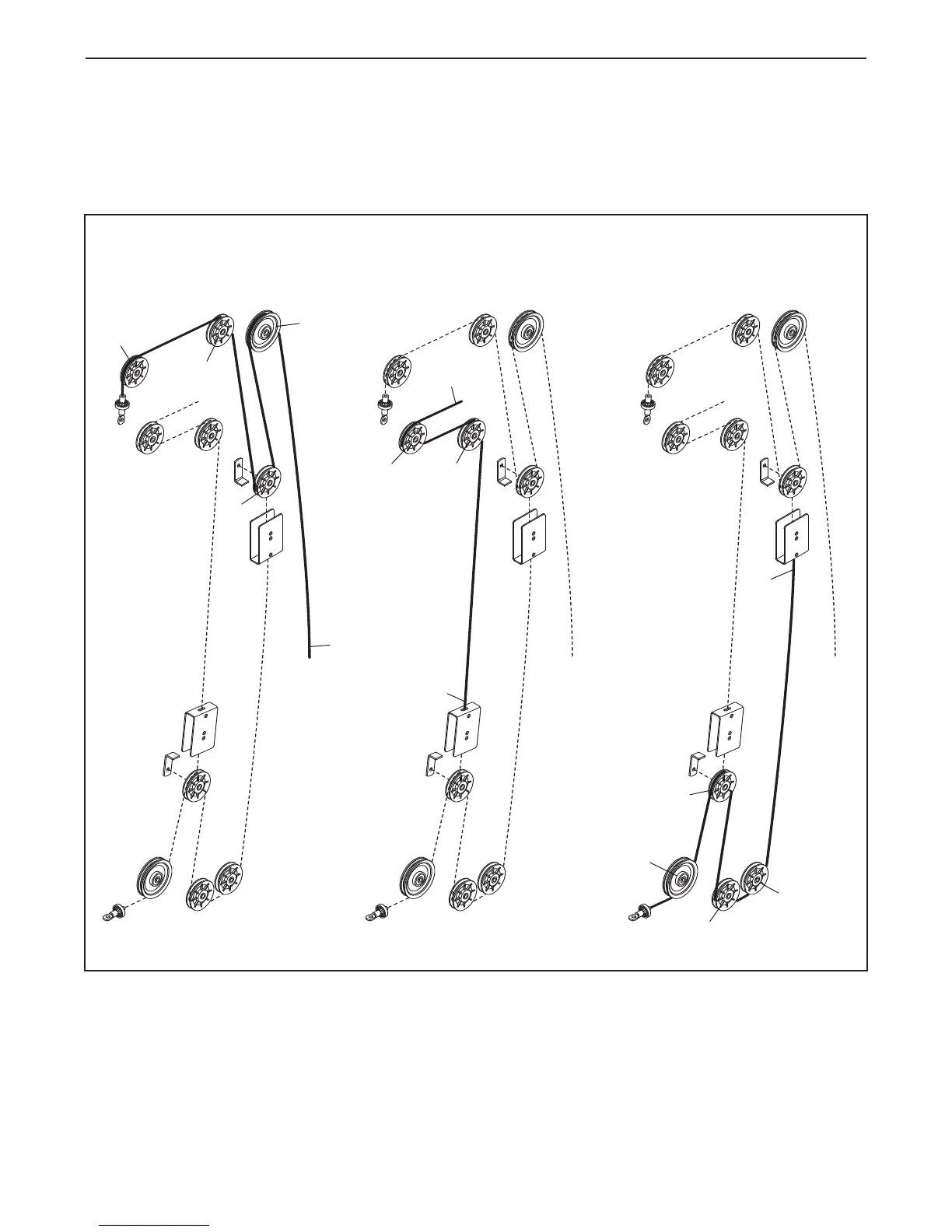

The diagram below shows the proper routing of the cables. The numbers in each drawing show the proper route
for that cable. Use the diagram to make sure that the cables and the cable traps are assembled correctly. If the
c
ables are not assembled correctly, the weight system will not function properly and damage may occur.
M
ake
sure that the cable traps do not touch or bind the cables.
1
1
1
2
2
3
4
5
2
4
4
5
3
3
High Cable (30)
Length: 110 in. (280 cm)
Press Cable (29)
Length: 64 in. (163 cm)
Low Cable (31)
Length: 101 in. (256 cm)
CABLE DIAGRAM
