Weider Pro 2000 User Manual

11

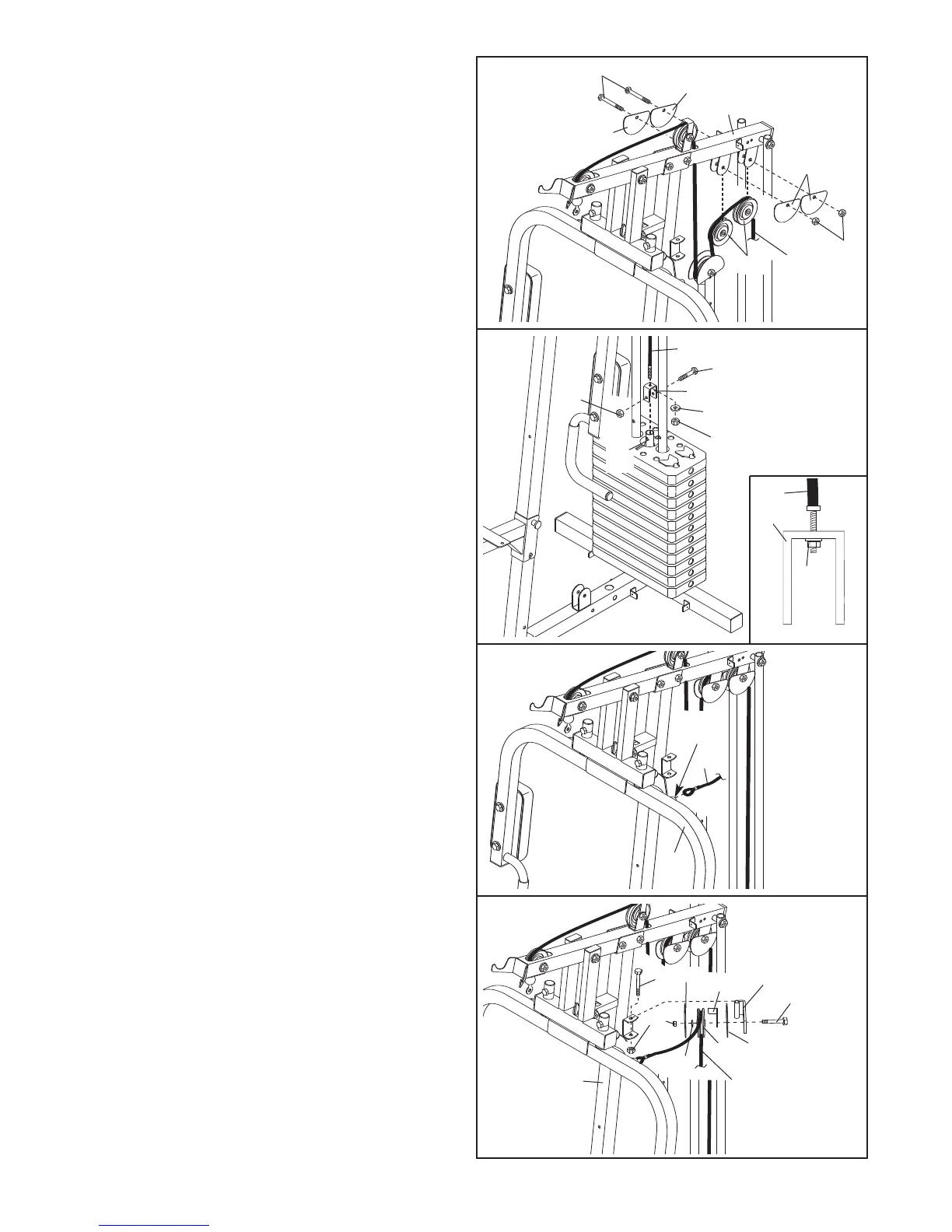

16. Locate the Press Cable (49). Slide the Cable
onto the hook on the Left Arm (7).
17.
Apply grease to an M10 x 78mm Bolt (54).
Attach the Pulley
Arm (38) to the Upright (3)
with the Bolt and an M10 Nylon Locknut (68).
Do not overtighten the Nylon Locknut; the
Pulley Arm must pivot easily
.
Wrap the Press Cable (49) over a 90mm Pulley
(34).
Attach the Pulley, a Cable Trap (36), an
M10 W
asher (70), and two Finger Guards (35)
to the indicated side of the Pulley Arm (38) with
an M10 x 52mm Bolt (52) and an M10 Nylon
Locknut (68).
Make sure that the Cable T
rap
is oriented to hold the Cable in the groove
of the Pulley.
15. Attach the end of the High Cable (50) to the
Small “U”-bracket (11) with an M8 Washer (71)
and an M8 Nylon Locknut (69). Note: Do not
completely tighten the Nylon Locknut; it
should be threaded onto the Cable so that
two threads show past the Nylon Locknut,
as shown in the inset drawing.
Attach the Small “U”-bracket (11) to the Weight
Tube (12) with an M8 x 45mm Bolt (60) and an
M8 Nylon Locknut (69).
Do not overtighten
the Nylon Locknut; the Weight Tube must
pivot easily in the Small “U”-bracket.
14. Wrap the High Cable (50) over a 90mm Pulley
(34). Attach the Pulley and two Finger Guards
(
35) to the Top Frame (4) with an M10 x 46mm
Bolt (53) and an M10 Nylon Locknut (68).
Repeat this step with another 90mm Pulley
(34), two Finger Guards (35), an M10 x 46mm
Bolt (53), and an M10 Nylon Locknut (68).
68
50
34
35
35
35
4
53
1
4
50
11
71
60
69
69
12
15
7
35
35
34
68
16
17
50
69
11
49
Hook
70
49
36
38
52
54
3
