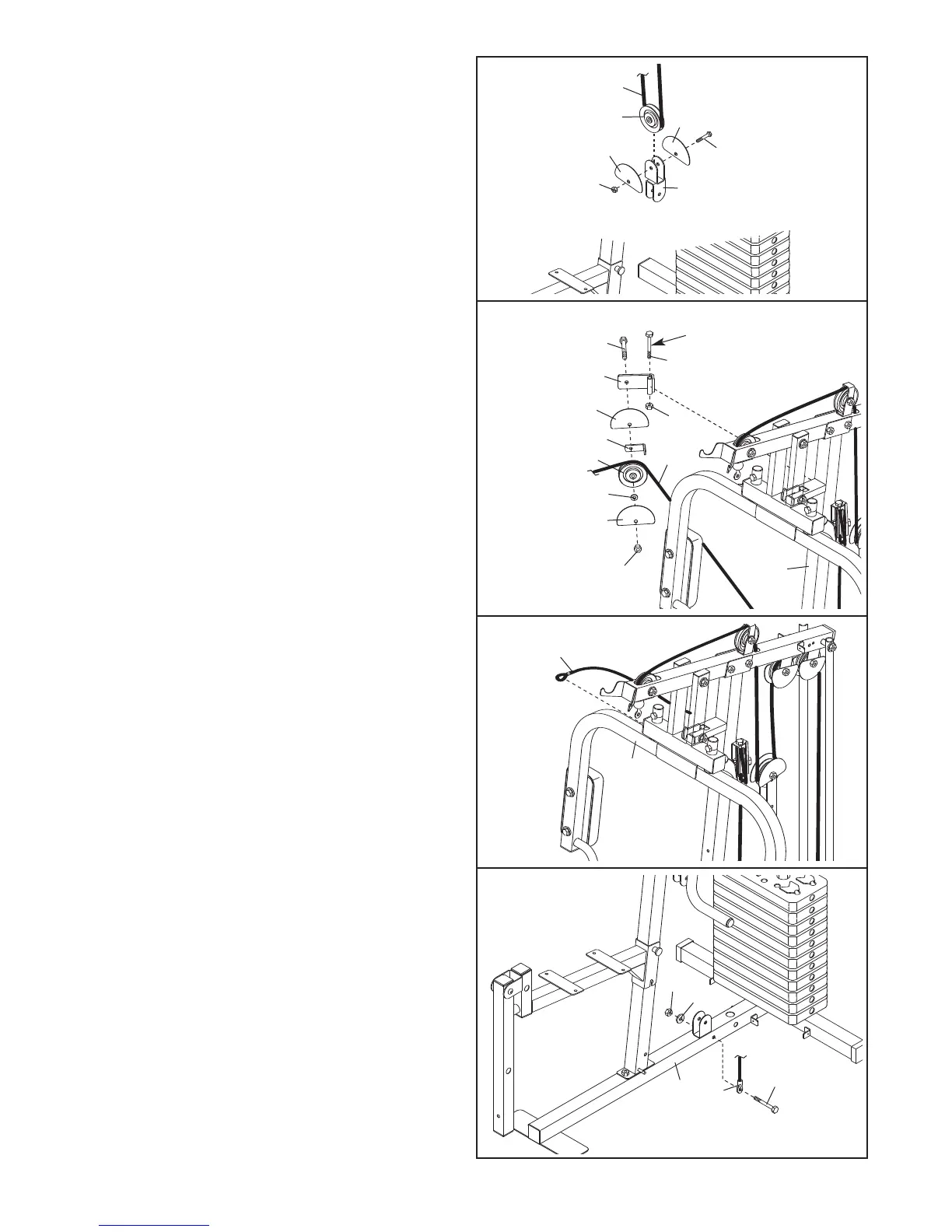

19. Apply grease to an M10 x 78mm Bolt (54).
Attach a Pulley Arm (38) to the Upright (3) with
the Bolt and an M10 Nylon Locknut (68).
Do
not overtighten the Nylon Locknut; the
Pulley Arm must pivot easily.
Wrap the Press Cable (49) over a 90mm Pulley
(34). Attach the Pulley, a Cable Trap (36), an
M10 Washer (70), and two Finger Guards (35)
to the indicated side of a Pulley Arm (38) with
an M10 x 52mm Bolt (52) and an M10 Nylon
Locknut (68).
Make sure that the Cable Trap
is oriented to hold the Cable in the groove
of the Pulley.
18. Wrap the Press Cable (49) under a 90mm Pulley
(34). Attach the Pulley and two Finger Guards
(
35) to the Double “U”-bracket (42) with an M10 x
46mm Bolt (53) and an M10 Nylon Locknut (68).
34
53
68
49
35
42
35
18
35
36
49
52
38
68
68
3
54
Grease
34
35
70
19
20. Slide the end of the Press Cable (49) onto the
hook on the Right Arm (6).
49
6
20
21. Locate the Short Cable (47). Attach the eyelet
on the Cable to the Base (1) with an M10 x
70mm Bolt (57), an M10 Washer (70), and an
M10 Nylon Locknut (68). Do not overtighten
the Nylon Locknut.
57
70
68
47
1
21
