Weider Pro 2000 - Seat Assembly

15

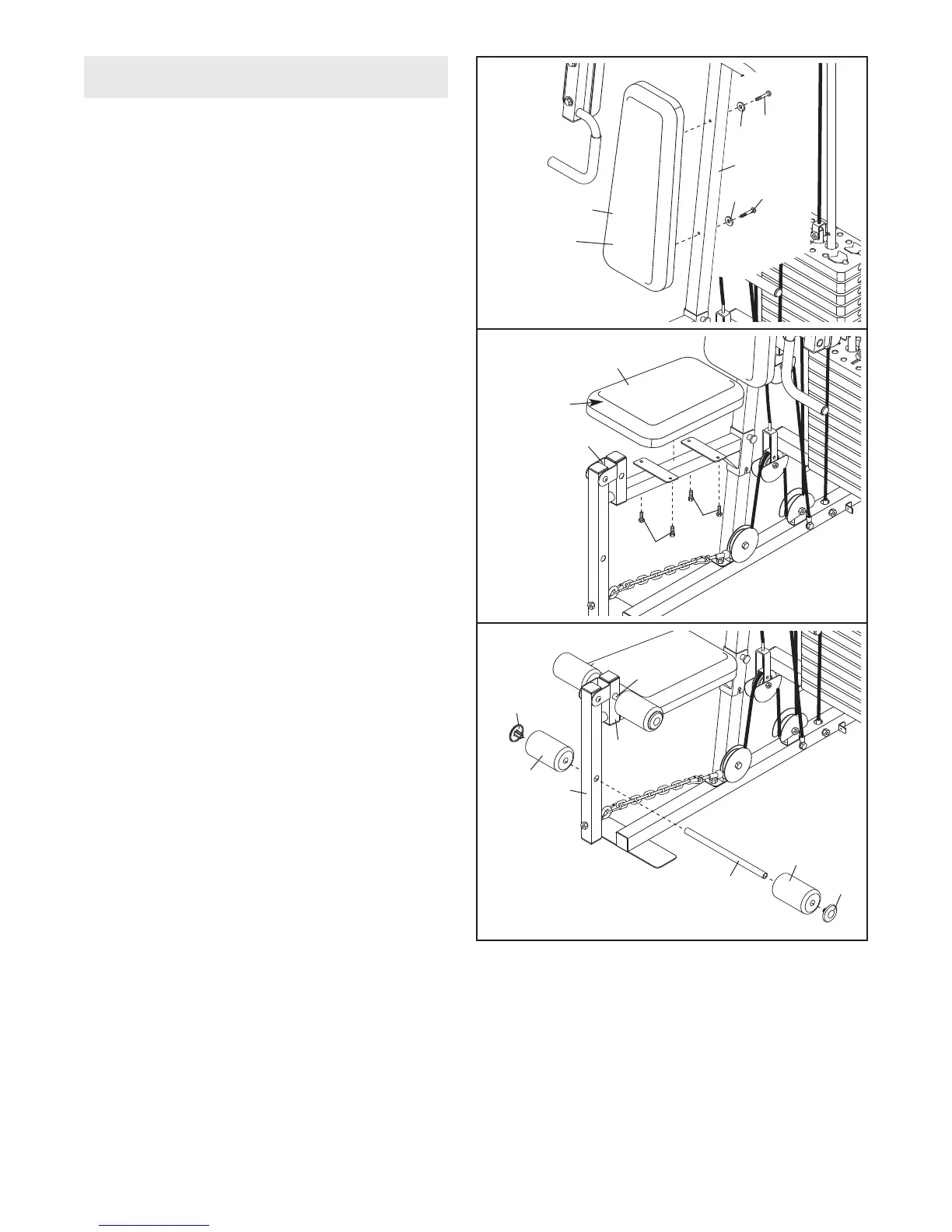

31. Attach the Seat (19), oriented as shown, to the
Seat Frame (8) with four M6 x 16mm Screws
(40).
32. Slide a Pad Tube (45) through the hole in the
Leg Lever (9). Slide two Foam Pads (21) onto
the ends of the Pad Tube. Then, press two Pad
Caps (22) onto the Pad Tube.
Repeat this step with the other Pad Tube
(45) and the Seat Frame (8).
30. Attach the Backrest (18) to the Upright (3) with
two M6 x 63mm Screws (67) and two M6
Washers (73).
18
Wide End
73
73
3
40
40
6
7
67
19
Wide
End
8
30
31
21
22
21
45
45
9
8
22
32
SEAT ASSEMBLY
