8
75
77
76
8
86
3
82
6
6. Attach the Seat Frame (8) to the Upright (3) with
an M8 x 70mm Carriage Bolt (86) and an M8
Knob (82).
Attach the Bumper (75) to the Seat Frame (8)
with an M4 x 19mm Self-tapping Screw (76) and
an M4 Washer (77).
10
68
70
63
69
62
3
4
70
5
4
1
5
3
12
15
10
Lubricate

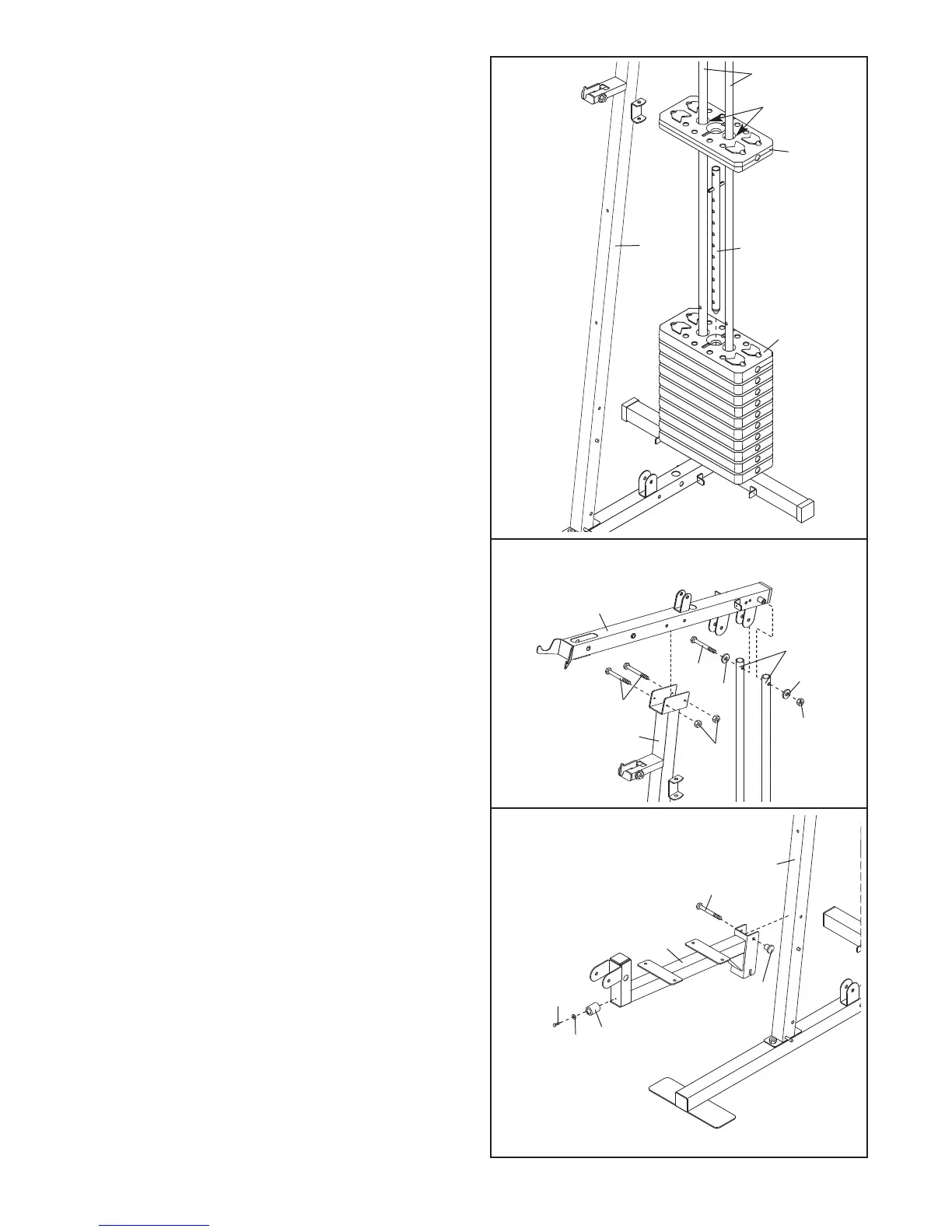

4. Slide ten Weights (15) onto the Weight Guides
(10), with the slot for the Weight Pin (not shown)
o
n the bottom and on the side facing away from
the Upright (3).
Insert the Weight Tube (12) into the Weights (15).
Lubricate the indicated holes in a Weight (15)
with grease. Slide the Weight onto the Weight
Guides (10).
5. Attach the Top Frame (4) to the Upright (3) with
two M8 x 68mm Bolts (63) and two M8 Nylon
Locknuts (69). Do not tighten the Nylon
Locknuts yet.
Attach the Top Frame (4) between the Weight
Guides (10) with an M10 x 155mm Bolt (62), two
M10 Washers (70), and an M10 Nylon Locknut
(68).
Tighten the Nylon Locknuts (68, 69) used in
steps 2 and 5.
To Next Page
