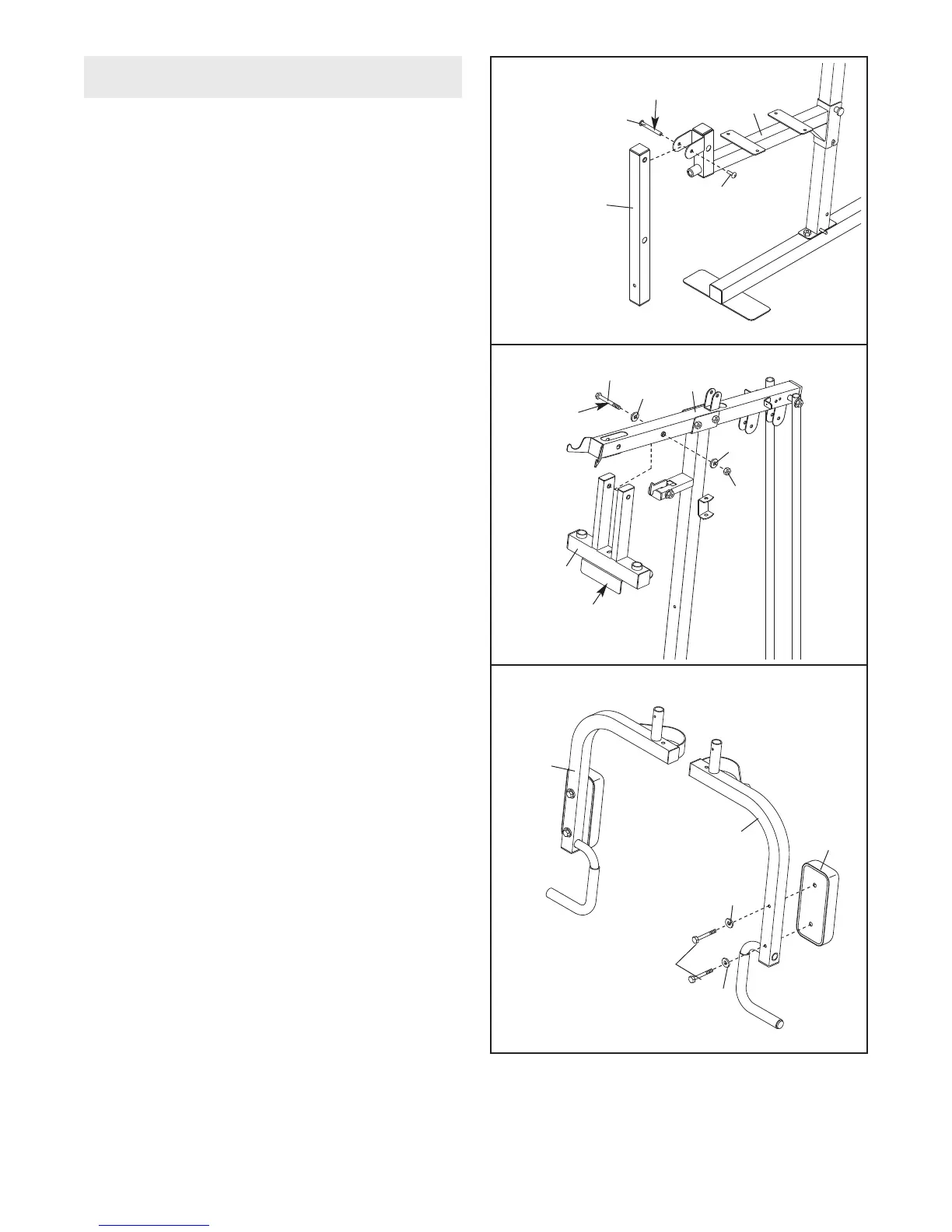

9. Attach an Arm Pad (20) to the Left Arm (7) with
two M6 x 58mm Screws (65) and two M6
Washers (73).
Repeat this step with the Right Arm (6).
8. Apply grease to an M10 x 125mm Bolt (64).
Orient the Press Frame (5) with the bracket on
the side shown. Attach the Press Frame to the
Top Frame (4) with the Bolt, two M10 Washers
(70), and an M10 Nylon Locknut (68). Do not
overtighten the Nylon Locknut; the Press
Frame must pivot easily.
7. Grease the M10 x 57mm Bolt Set (81) and attach
the Leg Lever to the Seat Frame (8) with the Bolt
Set.
Make sure that the barrel of the Bolt Set
is inserted through both sides of the bracket
on the Seat Frame. Do not overtighten the
Bolt Set; the Leg Lever must pivot easily.
9
8
81
81
Grease
7
64
70
70
68
4
5
8
20
7
65
6
73
73
9
Bracket
ARM ASSEMBLY
Grease
