1
4
12
12
18
19
3
19
20
20
25
21
13
19
23
13
28
19
19
27
27
16
22
22
17
17
17
8
14
9
9
11
11
2
9
10
11
11
4
12
12
19
18
19
7
15
24
5
24
6
26
19
19
25
11
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover of
this manual for information about ordering replacement parts. If a part is missing, call toll-free 1-877-992-5999.
Key No. Qty. Description Key No. Qty. Description
1
1 Frame
2 1 Front Leg
3 1 Rear Leg
4 2 Stabilizer
5 1 Backrest Frame
6
1
Pivot Bracket
7
1
Backrest
8 1 Seat
9
4 Foam Pad
10
2
Pad
T
ube
1
1
4
19mm Square Inner Cap
12 4 50mm Round Outer Cap
13
4
50mm Square Inner Cap
14
1
45mm Square Inner Cap
15 1 25mm x 50mm Inner Cap
16 2 M10 x 63mm Bolt
17 4 M6 x 60mm Bolt
18 4 M10 x 63mm Carriage Bolt
19 10 M10 Nylon Locknut
20 2 M10 Washer
21 1 Locking Pin
22 4
M6 Washer
23
1
M10 x 85mm Bolt
24 4 M6 x 16mm Bolt
25 3 M10 x 20mm Bolt
26
2
M10 x 70mm Bolt
27
2
M10 Large Washer
28 1 M4 x 16mm Screw
#
1
User’s Manual
#
1
Exercise Guide
# 1 Grease Pack

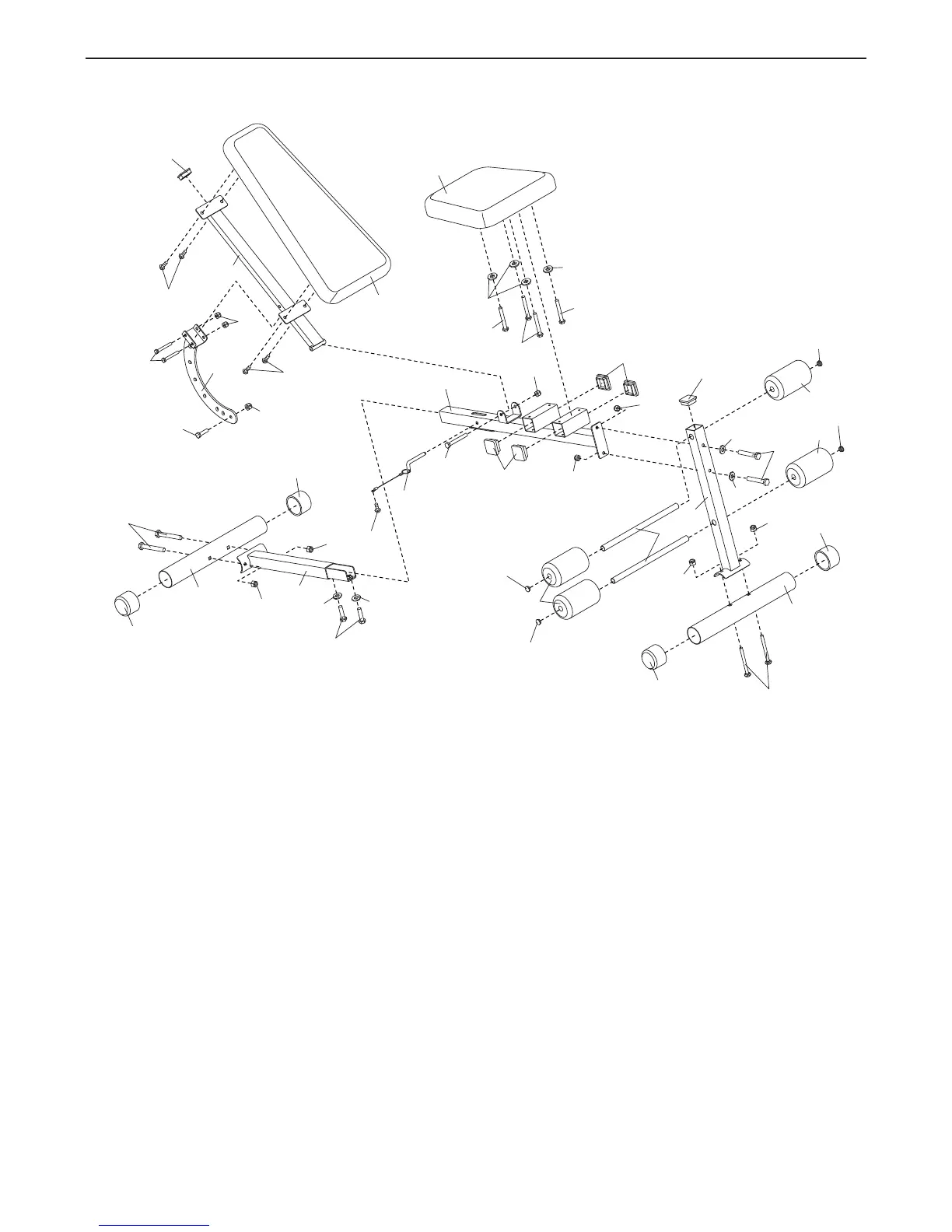

PART LIST/EXPLODED DRAWING—Model No. 831.15600.0 R0905A
