6
Before beginning assembly, carefully read the
following information and instructions:
• Assembly requires two people.
• For help identifying small parts, use the PART
IDENTIFICATION CHART on page 5.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
• As you assemble the weight bench, make sure all
parts are oriented as shown in the drawings.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
T
he included grease, and the following tools
(not included) may be required for assembly:
• Two adjustable wrenches
• One rubber mallet
• One standard screwdriver
• One Phillips screwdriver
• Clear tape or masking tape, and soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
Make Things Easier for Yourself
This manual is designed to ensure that the
weight bench can be assembled successfully
by anyone. Most people find that by setting
aside plenty of time, assembly will go smoothly.

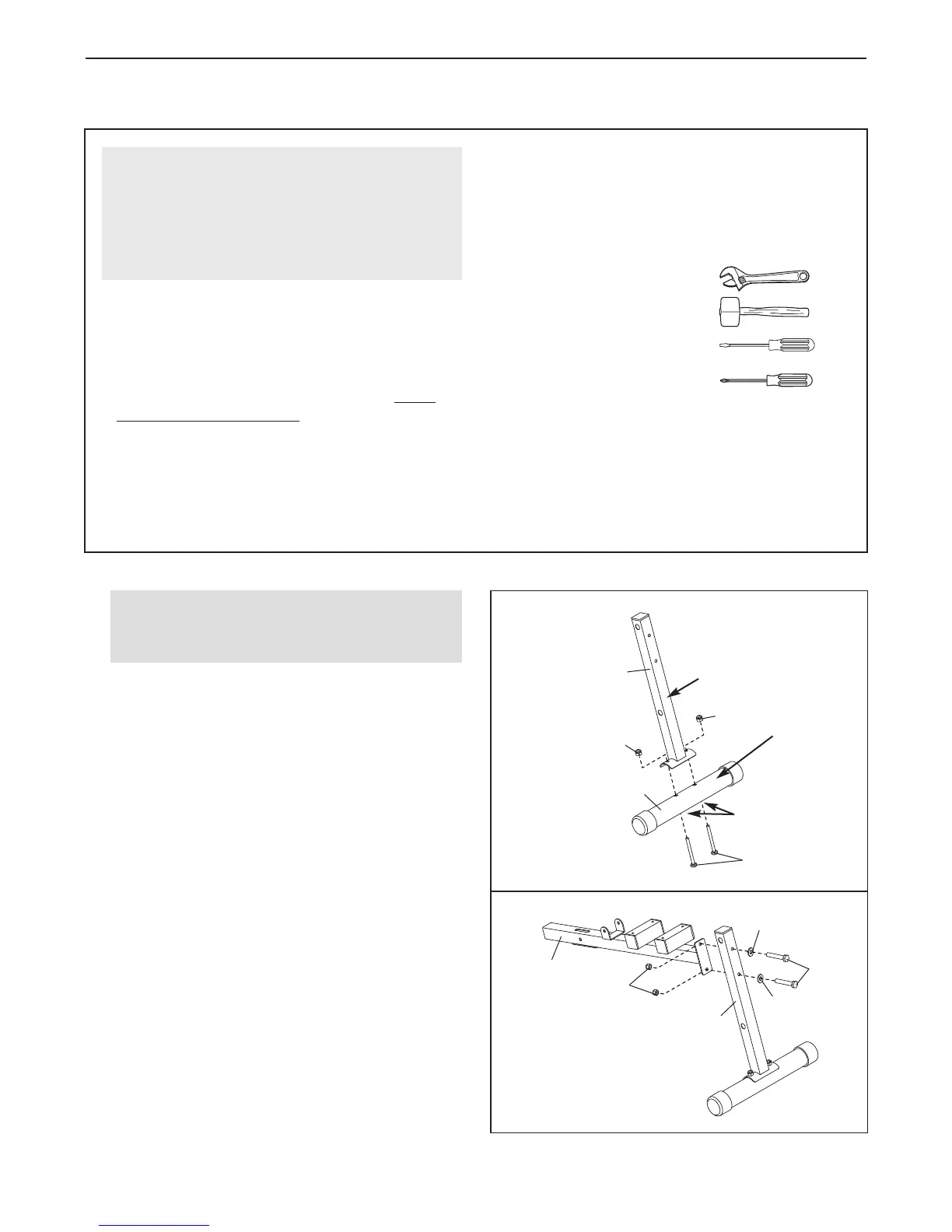

ASSEMBLY
1.
Attach the Stabilizer (4) with the warning decal to
the Front Leg (2) with two M10 x 63mm Carriage
Bolts (18) and two M10 Nylon Locknuts (19).
Make sure the indents in the Stabilizer, the
warning decal,
and the name decal on the
Front Leg are in the positions shown. Do not
tighten the Locknuts yet.
2. Attach the Frame (1) to the Front Leg (2) with two
M10 x 63mm Bolts (16), two M10 Large W
ashers
(27), and two M10 Nylon Locknuts (19). Do not
tighten the Locknuts yet.
1
2
2
1
19
16
2
27
27
19
19
18
Name
Decal
Indents
4
Before assembling the weight bench, make
sure that you understand the information in
the box above.
Warning
Decal
To Next Page
