Weider Pro 255L - Part List;Exploded Drawing

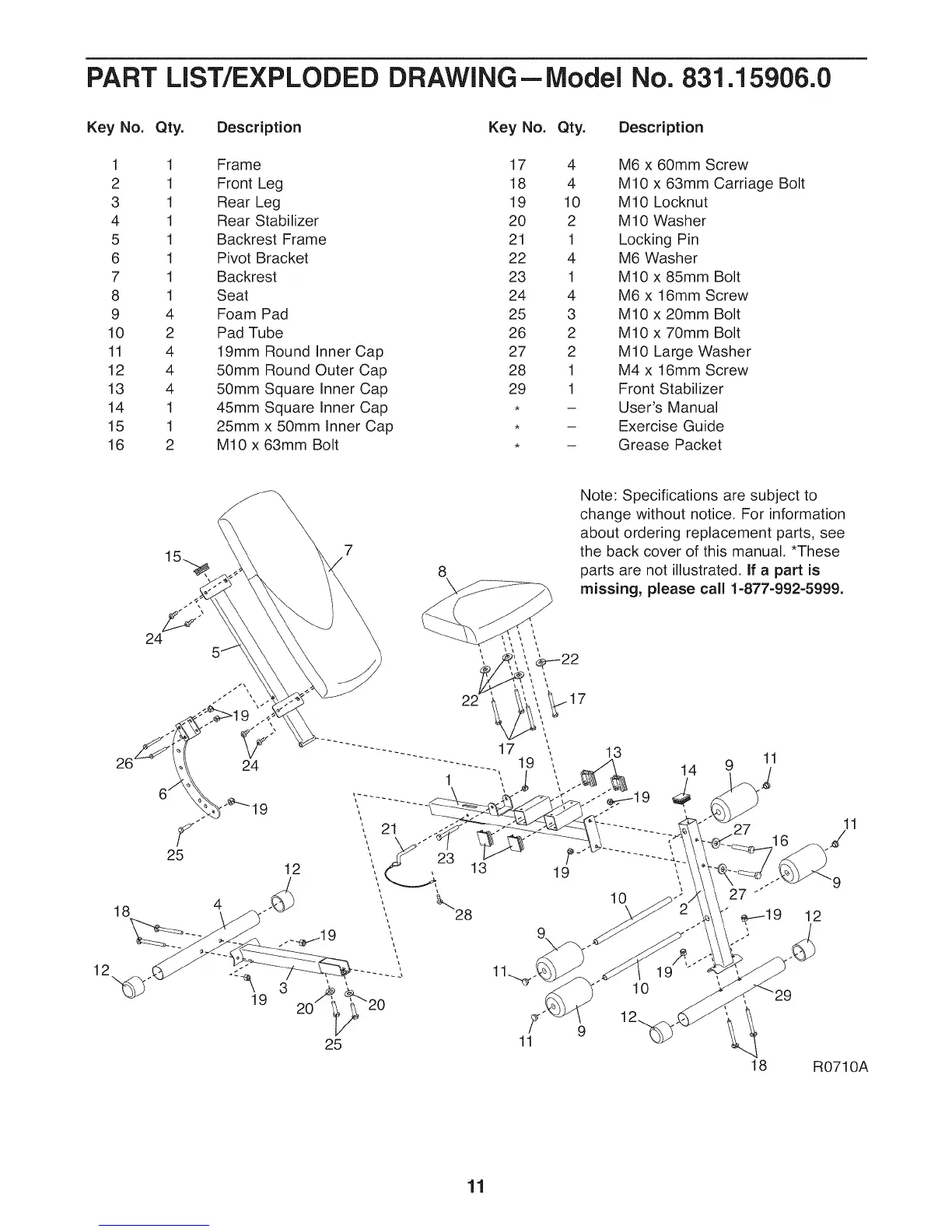

PART LiST/EXPLODED DRAWING=IVlodei No. 831.15906.0
Key No. Qty. Description Key No. Qty. Description
1 1 Frame 17 4
2 1 Front Leg 18 4
3 1 Rear Leg 19 10
4 1 Rear Stabilizer 20 2
5 1 Backrest Frame 21 1
6 1 Pivot Bracket 22 4
7 1 Backrest 23 1
8 1 Seat 24 4
9 4 Foam Pad 25 3
10 2 Pad Tube 26 2
11 4 19mm Round Inner Cap 27 2
12 4 50mm Round Outer Cap 28 1
13 4 50mm Square Inner Cap 29 1
14 1 45mm Square Inner Cap . -
15 1 25mm x 50mm Inner Cap . -
16 2 M10 x 63mm Bolt . -
M6 x 60mm Screw
M10 x 63mm Carriage Bolt
M10 Locknut
M10 Washer
Locking Pin
M6 Washer
M10 x 85mm Bolt
M6 x 16mm Screw
M10 x 20mm Bolt
M10 x 70mm Bolt
M10 Large Washer
M4 x 16mm Screw
Front Stabilizer
User's Manual
Exercise Guide
Grease Packet
24
18 4
19
', 21
\
12 \
\
\
Note: Specifications are subject to
change without notice. For information
about ordering replacement parts, see
the back cover of this manual. *These
parts are not illustrated. If a part is
missing, please call 1-877-992-5999.
10
12
11
9
11
11
18
R0710A
