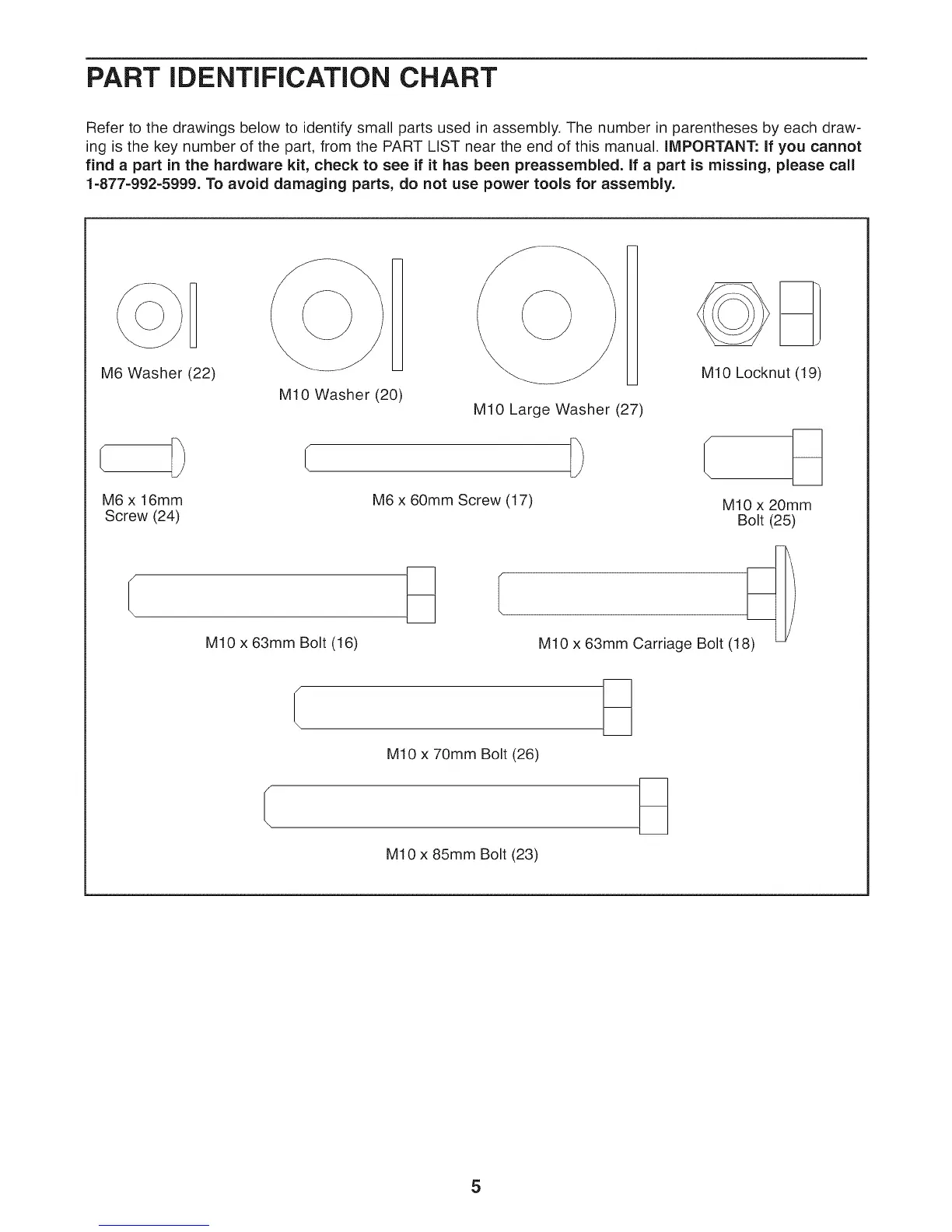

PART iDENTiFiCATiON CHART
Refer to the drawings below to identify small parts used in assembly. The number in parentheses by each draw-
ing is the key number of the part, from the PART LIST near the end of this manual. IMPORTANT." If you cannot
find a part in the hardware kit, check to see if it has been preassembled. If a part is missing, please call
1=877=992=5999. To avoid damaging parts, do not use power tools for assembly.
M6 Washer (22)
1
M10 Washer (20)
M10 Locknut (19)
m
M10 Large Washer (27)
M6 x 16mm M6 x 60mm Screw (17) MIO x 20mm
Screw (24) Bolt (25)
M10 x 63mm Bolt (16)
M10 x 63mm Carriage Bolt (18_
M10 x 70mm Bolt (26)
M10 x 85mm Bolt (23)
5
