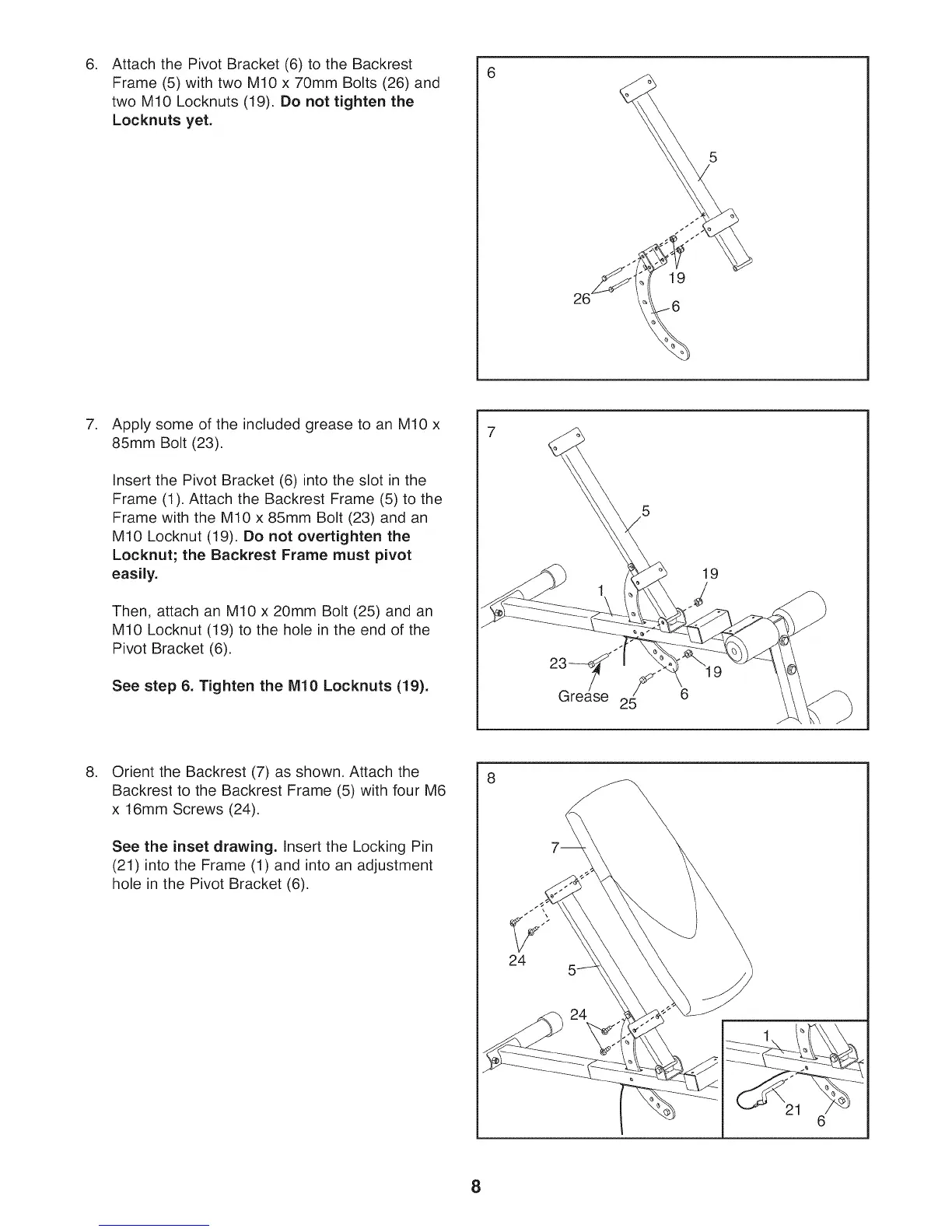

Attach the Pivot Bracket (6) to the Backrest
Frame (5) with two M10 x 70mm Bolts (26) and
two M10 Locknuts (19). Do not tighten the
Locknuts yet.
24
19
,
Apply some of the included grease to an M10 x
85mm Bolt (23).
Insert the Pivot Bracket (6) into the slot in the
Frame (1). Attach the Backrest Frame (5) to the
Frame with the M10 x 85mm Bolt (23) and an
M10 Locknut (19). Do not overtighten the
Locknut; the Backrest Frame must pivot
easily.
Then, attach an M10 x 20mm Bolt (25) and an
M10 Locknut (19) to the hole in the end of the
Pivot Bracket (6).
See step 6. Tighten the MIO Locknuts (19).
Grease
6
19
19
,
Orient the Backrest (7) as shown. Attach the
Backrest to the Backrest Frame (5) with four M6
x 16mm Screws (24).
See the inset drawing. Insert the Locking Pin
(21) into the Frame (1) and into an adjustment
hole in the Pivot Bracket (6).
21
8
