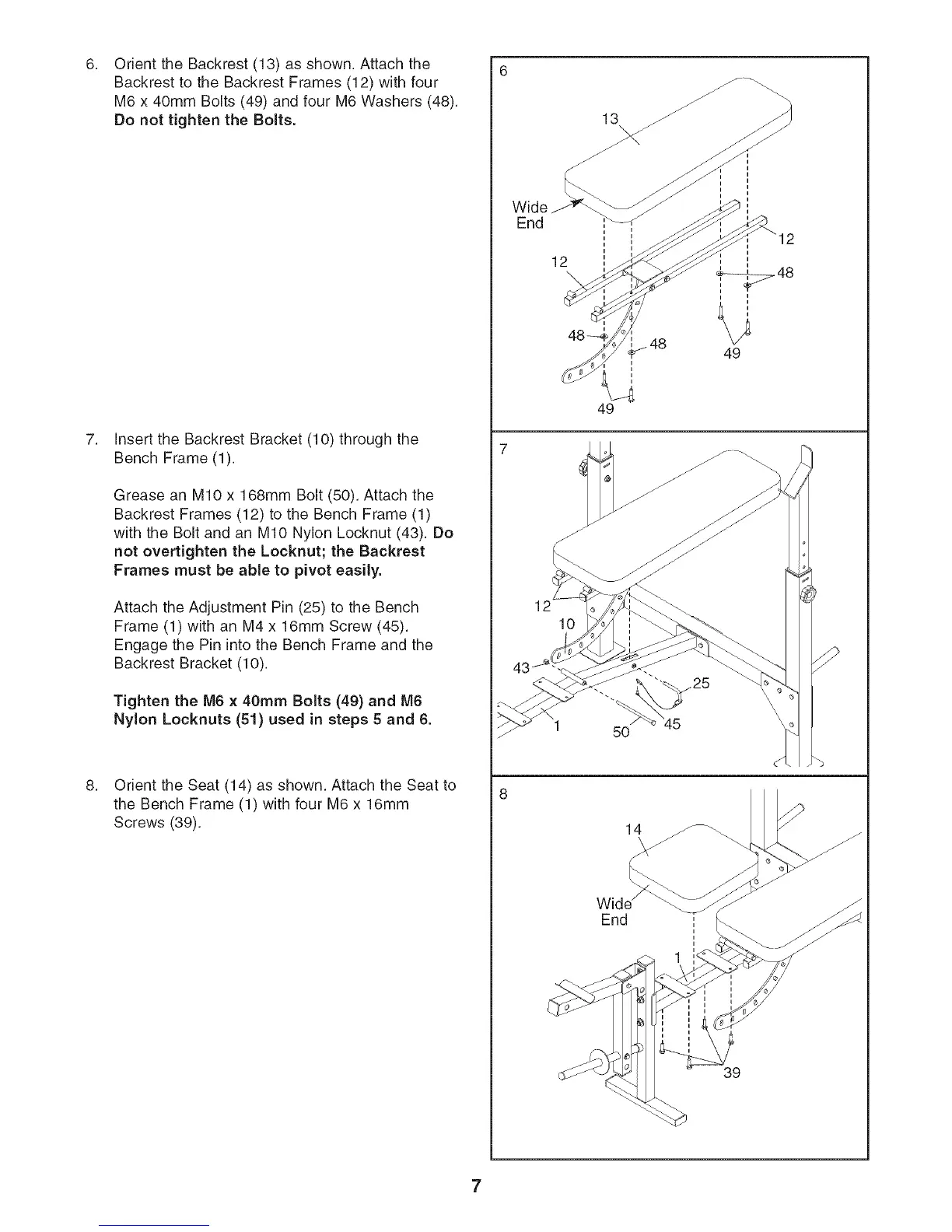

Orient the Backrest (13) as shown. Attach the
Backrest to the Backrest Frames (12) with four
M6 x 40mm Bolts (49) and four M6 Washers (48).
Do not tighten the Bolts.
Insert the Backrest Bracket (10) through the
Bench Frame (1).
Grease an M10 x 168mm Bolt (50). Attach the
Backrest Frames (12) to the Bench Frame (1)
with the Bolt and an M10 Nylon Locknut (43). Do
not overtighten the Locknut; the Backrest
Frames must be able to pivot easily.
Attach the Adjustment Pin (25) to the Bench
Frame (1) with an M4 x 16mm Screw (45).
Engage the Pin into the Bench Frame and the
Backrest Bracket (10).
Tighten the M6 x 40mm Bolts (49) and M6
Nylon Locknuts (51) used in steps 5 and 6.
Orient the Seat (14) as shown. Attach the Seat to
the Bench Frame (1) with four M6 x 16mm
Screws (39).
End
43
12
49
49
50
39
7
