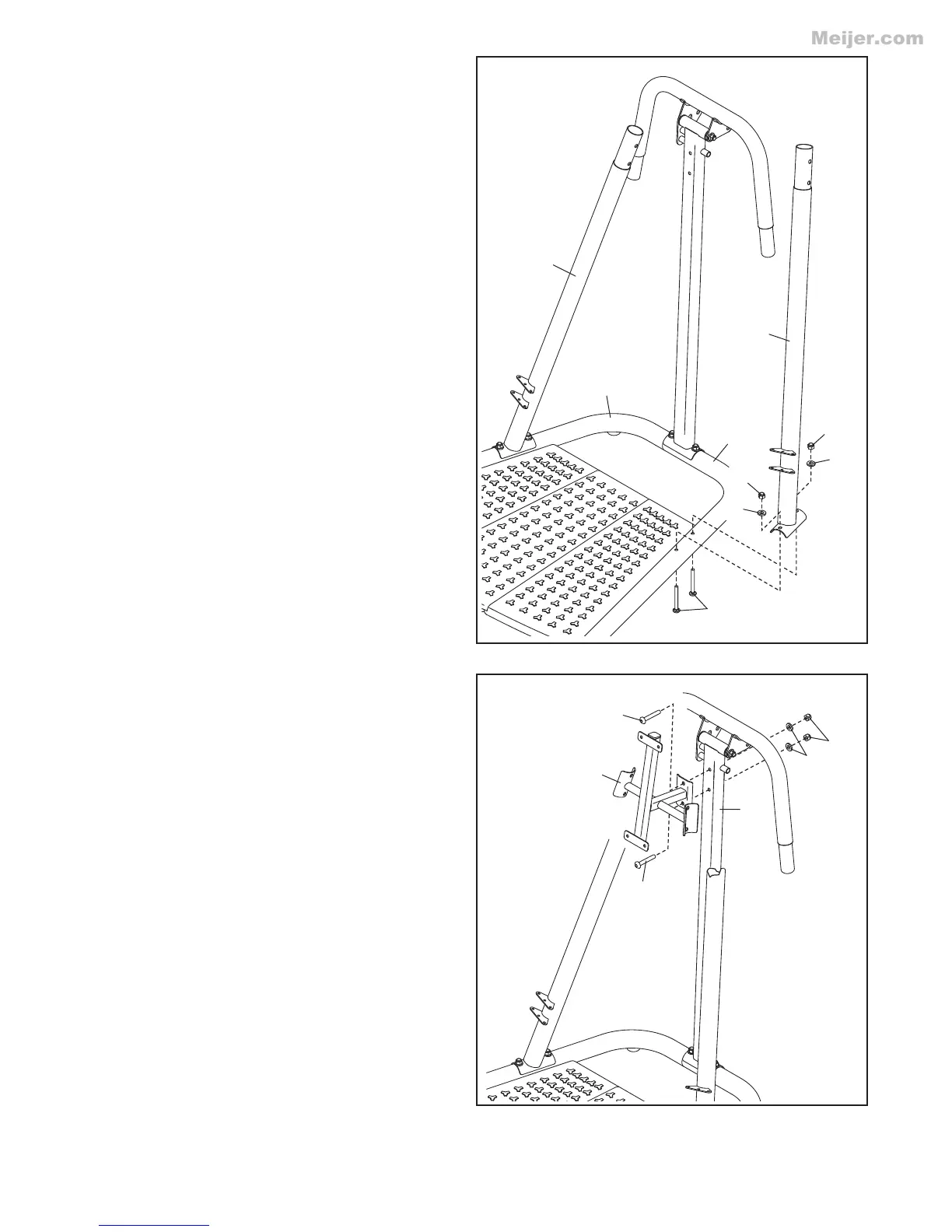

6. Orient the Backrest Frame (10) as shown.
Attach the Backrest Frame (10) to the Center
Upright (3) with two M10 x 55mm Bolts (51),
two M10 Washers (53), and two M10 Locknuts
(47). Do not tighten the Locknuts yet.
5. Identify the Right Upright (4), which is marked
with a sticker.
Attach the Right Upright (4) to the Right Base
(1) with two M10 x 70mm Carriage Bolts (49),
two M10 Curved Washers (48), and two M10
Locknuts (47). Do not tighten the Locknuts
yet.
Attach the Left Upright (5) to the Left Base
(2) in the same way.
5
6
1
2
4
47
48
3
51
51
47
53
10
5
49
47
48
