27
15
26
7
19
35
30
34
34
31
28
1
22
2
3
13
16
25
36
16
25
12
6
5
41
12
16
25
19
35
19
20
3
20
35
39
33
20
35
19
19
30
34
31
28
1
34
7
21
8
19
33
40
38
14
20
20
19
35
20
20
35
35
37
29
29
19
18
15
19
24
2
11
24
19
15
18
24
17
32
10
24
37
29
29
19
19
9
4
4
22
23

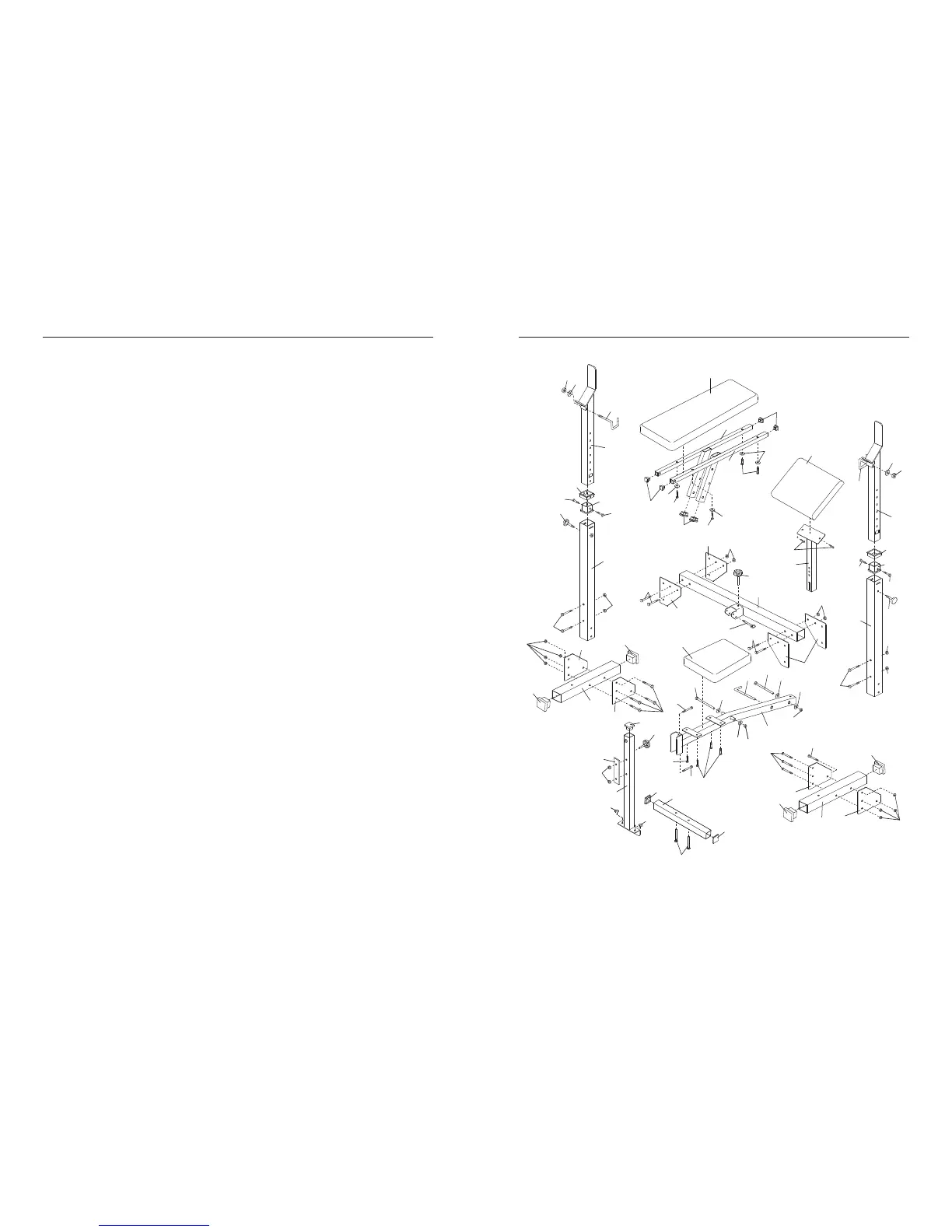

EXPLODED DRAWING—Model No. WEEVBE2295.0 R0705A
Key No. Qty. Description Key No. Qty. Description
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of this manual for information about ordering replacement parts.
1 2 Upright
2 1 Bench Frame
3 1 Crossbar
4 2 40mm x 50mm Inner Cap
5 1 Right Backrest Frame
6 1 Backrest
7 2 Upright Base
8 1 Front Leg
9 2 M10 x 52mm Carriage Bolt
10 1 M10 x 75mm Bolt
11 1 Seat
12 4 25.4mm Square Inner Cap
13 1 Right Barbell Hook
14 1 Support Plate
15 6 M6 x 16mm Screw
16 4 M6 x 38mm Screw
17 1 M10 x 175mm Bolt
18 2 M10 x 70mm Bolt
19 22 M10 Nylon Locknut
20 8 Joint Plate
21 1 Left Barbell Hook
22 2 M8 Nylon Locknut
23 2 M8 Washer
24 4 M10 Washer
25 4 M6 Washer
26 1 Curl Post
27 1 Curl Pad
28 2 Bushing
29 4 60mm Square Inner Cap
30 2 M10 x 65mm Adjustment Knob
31 2 60mm x 50mm Bushing
32 1 Adjustment Pin
33 2 M10 x 60mm Adjustment Knob
34 4 M4 x 8mm Screw
35 16 M10 x 80mm Bolt
36 2 25mm x 50mm Inner Cap
37 2 Stabiliser
38 1 Front Leg Stabiliser
39 1 Ring Pin
40 1 50mm Square Inner Cap
41 1 Left Backrest Frame
# 1 User’s Manual
# 1 Exercise Guide
# 1 Grease Pack
PART LIST—Model No. WEEVBE2295.0 R0705A
