76 1066540000/00/02.09
44
43
42
41
54
53
52
51
24
23
22
21
14
+
CH1
CH2
-
+
-
13
12
11
ACT20X
CBX200 with
Configuration Software
Configuration in
safe area only!
Hazardous area
Zone 0,1,2,20,21,22
Non Hazardous area
or Zone 2

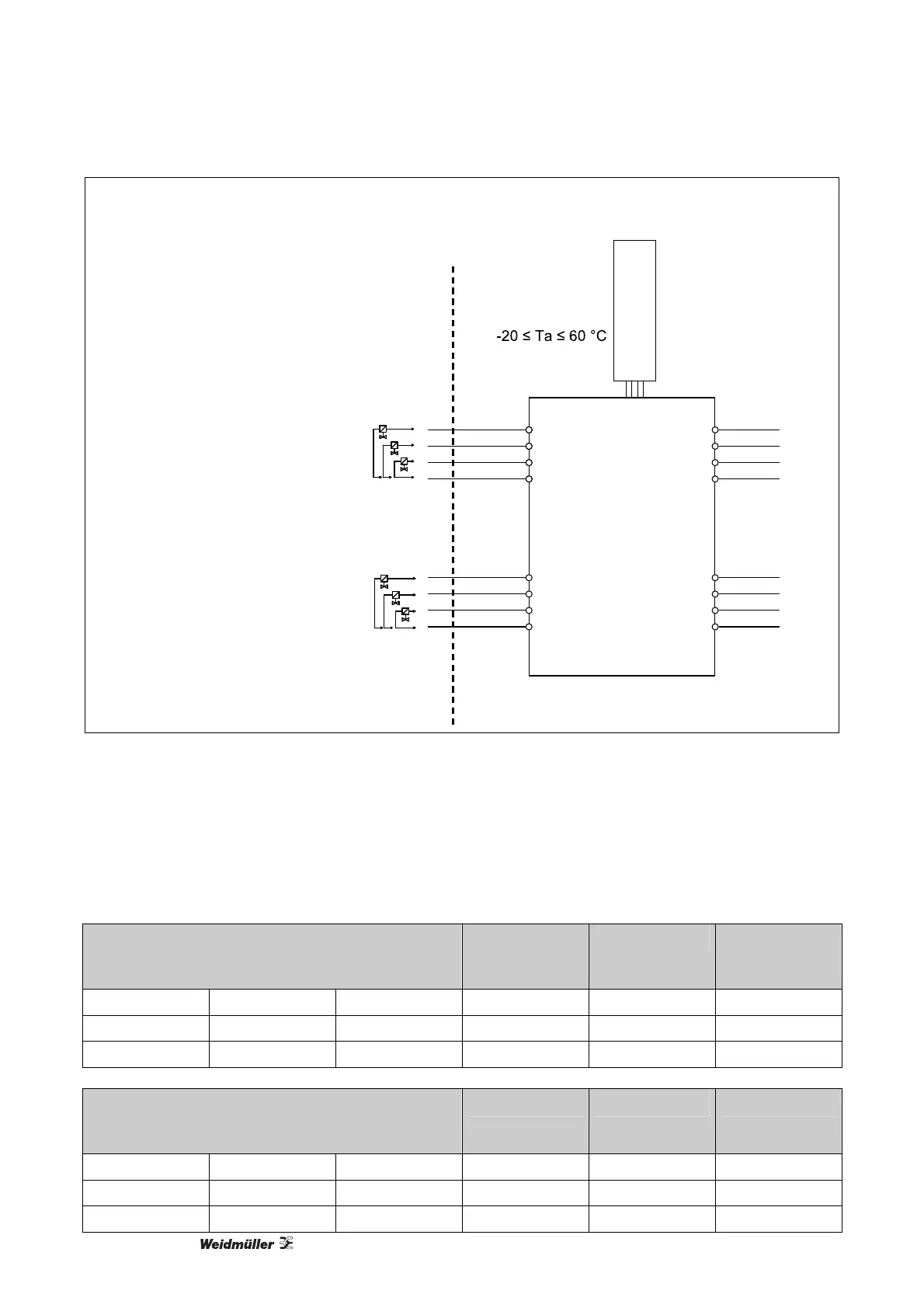

Illustration 7-24: IECEx Installation Drawing
Supply / Input
CH1 (terminal 41, 42, 43, 44)
CH2 (terminal 51, 52, 53, 54)
U
m
: 253 V, max. 400 Hz
896540 (ACT20X-SDI-HDO-L-S),
896542 (ACT20X-2SDI-2HDO-S),
Terminal 11–12 / 21–22
Co Lo Lo/Ro
Uo 28 V IIC 80 nF 4.2 mH 54 µH/Ω
Io 93 mA IIB 640 nF 16.8 mH 218 µH/Ω
Po 0.65 W IIA 2.1 µF 32.6 mH 436 µH/Ω
896540 (ACT20X-SDI-HDO-L-S),
896542 (ACT20X-2SDI-2HDO-S),
Terminal 11–13 / 21–23
Co Lo Lo/Ro
Uo 28 V IIC 80 nF 3.5 mH 50 µH/Ω
Io 100 mA IIB 640 nF 14.2 mH 201 µH/Ω
Po 0.70 W IIA 2.1 µF 27.6 mH 402 µH/Ω
