Installation notes:
DANGER
To prevent ignition of explosive atmospheres, disconnect power before servicing and do not
separate connectors when energized and an explosive gas mixture is present.
For installation in Zone 2, the module must be installed in an outer enclosure having an IP protection of at
least IP54 conforming to the requirements of IEC60079-15.
In type of protection “intrinsic safety iD” the parameters for intrinsic safety for gas group IIB are applicable.
54
53
52
51
44
43
42
41
24
23
22
21
14
13
12
11
ACT20X
ACT20X
CBX200 with
Configuration Software
Hazardous area
Zone 0, 1, 2, 20, 21, 22
Non Hazardous area
or Zone 2
Configuration in
safe area only!
-
+
54
53
52
51
44
43
42
41
24
23
22
21
14
13
12
11
CBX200 with
Configuration Software
Configuration in
safe area only!
T
4-20 mA
Loop-powered
transmitter

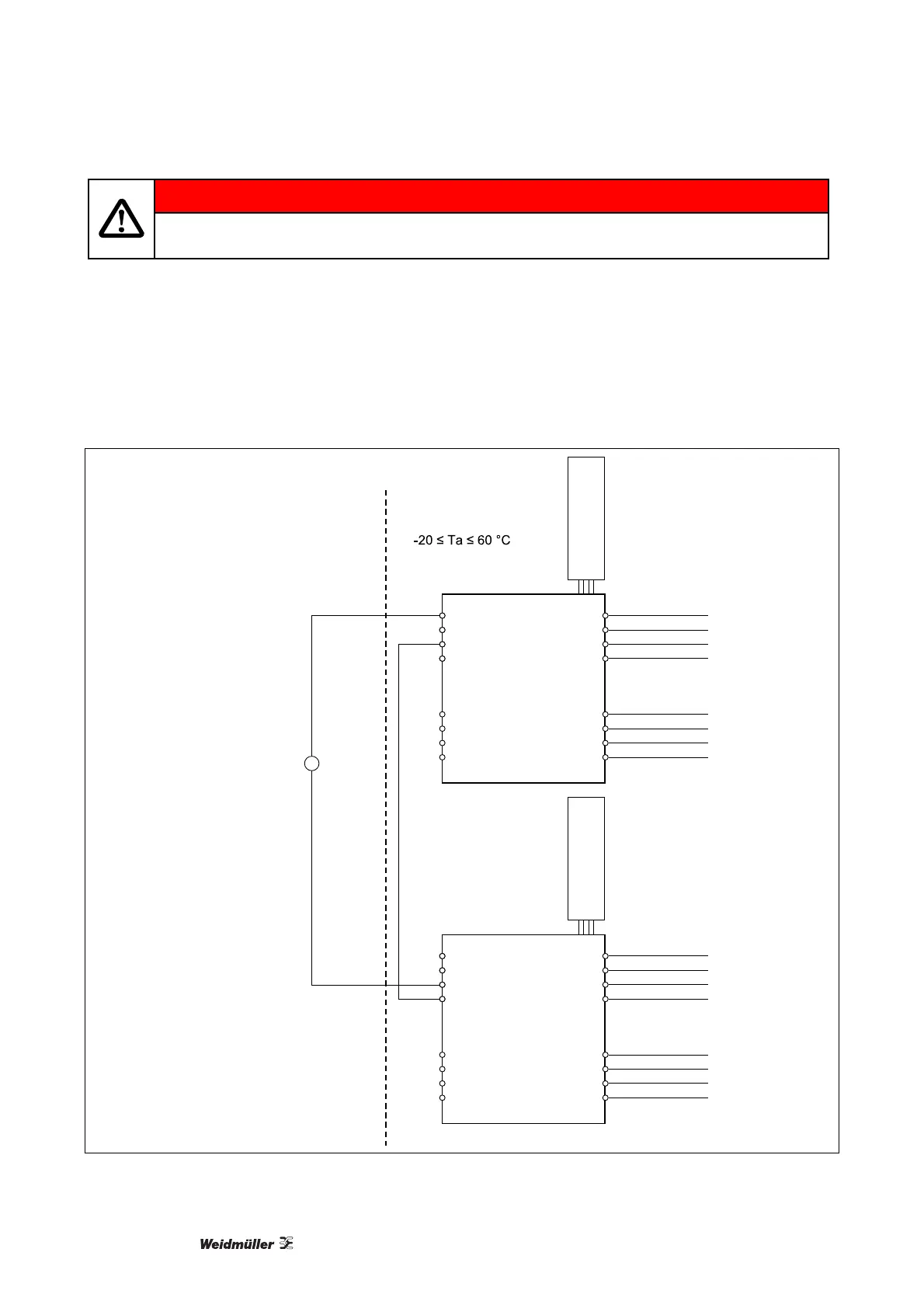

Illustration 7-28: IECEx Installation Drawing
